TOURING
ONE

SRP* 699 GBP

ArtNo. 162112

bluebird´n´grey

Comparison

WHATEVER.
WHEREVER.

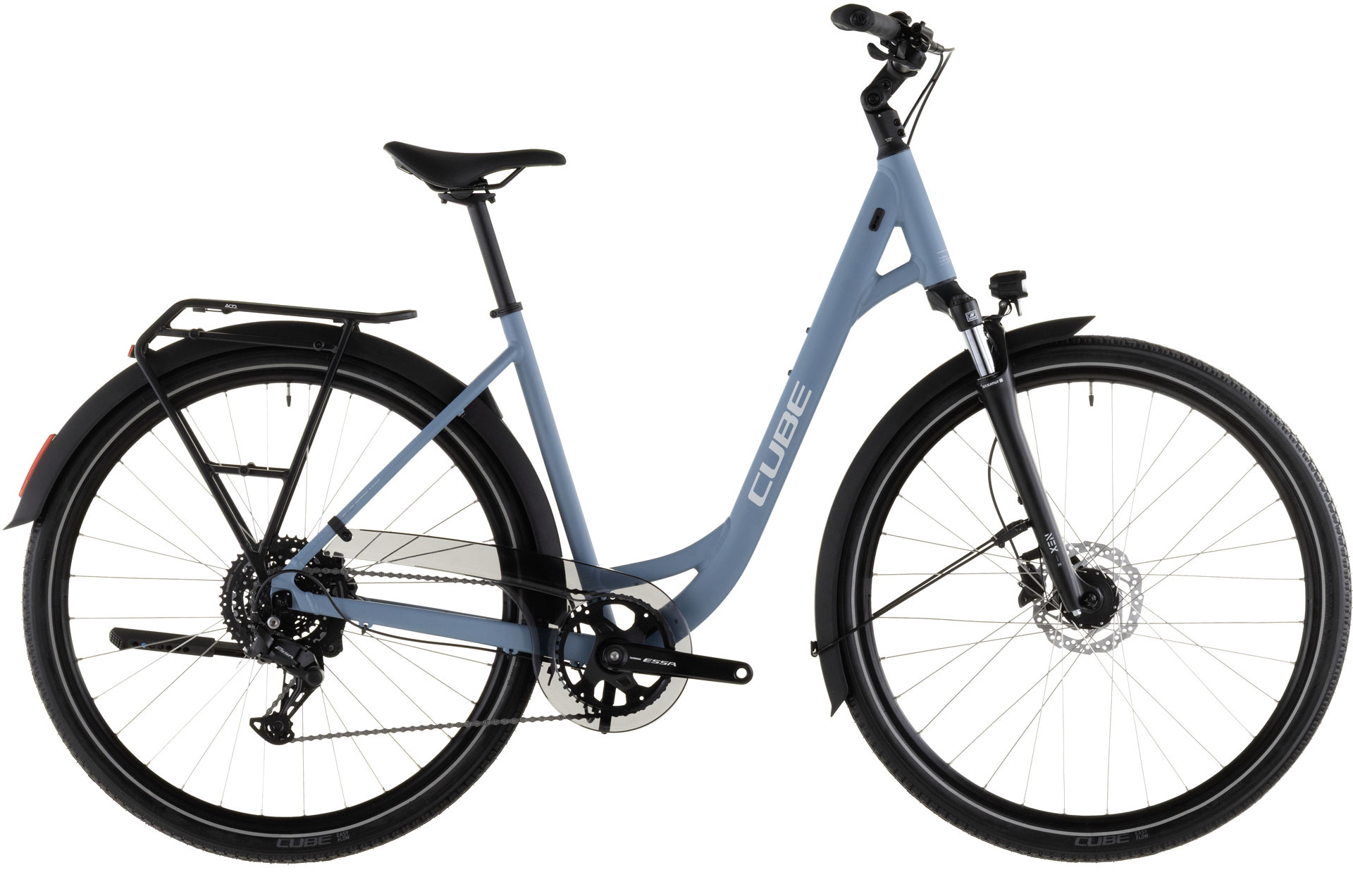

The heart of any bicycle is its frame, which is why we went to great lengths to make the Touring's frame as comfortable and practical as possible. We designed the Easy Entry frame to do exactly what it says, making mounting and dismounting a breeze. Gear cables routed inside the down tube complement the uncluttered aesthetics of the light, strong, double-butted aluminium frame, while Efficient Comfort Geometry is a fancy way of saying that it's confidence-inspiring and intuitive enough to make light work of even long days in the saddle. And our neat, sturdy Semi Integrated Carrier 2.0 means you take whatever you need with you for the journey, while the flat mount kickstand makes parking your bike a cinch.

Frame Material

Aluminium Superlite

Configuration

FE

Highlights

The wind on your face, the world at your feet, and the Touring ONE to take you wherever you want to go – what could be better? We built it with comfort and practicality in mind, so you can concentrate on enjoying the ride. With a full complement of practical accessories, including luggage carrier, mudguards, kickstand and lights, it's all you need for new adventures.

The Touring ONE's full equipment package and comfortable design is just what you need to broaden your cycling horizons. Easy-to-use 1x8 Shimano Essa gears put a wide range of ratios – enough to make light work of any route – literally at your fingertips. Powerful Shimano hydraulic disc brakes provide assured slowing and stopping regardless of weather conditions. A suspension fork and 47mm-wide tyres help smooth out rough roads. And full-length mudguards, our sturdy and exceptionally neat Semi Integrated Carrier 2.0, built-in dynamo lights and a handy flat mount kickstand mean you've everything you need for Kurztext trips across town and longer forays into the countryside.

Frame

frame

Aluminium Superlite, Trekking Comfort, Double Butted

Our trekking series is designed to take you wherever your curiosity leads you. So, of course, you'll want a comfortable ride. With a natural feeling seated position and handling that's stable and reassuring with or without a load, Trekking Comfort Geometry does exactly what it says no matter how much experience you have of cycling.

Cables for your gears and brakes are essential, but you don't necessarily want to see them all the time. Our semi internal cable routing takes gear and brake cables through the down tube for a cleaner appearance, smoother shifts and reduced maintenance. So your CUBE bike looks good and continues to function as it should, and you just concentrate on enjoying the ride.

CUBE's Aluminium Superlite starts with heat-treated 6061 aluminium, which has the qualities – high fatigue resistance, good stiffness, low weight and excellent strength – that are important for a bicycle frame. Then we make it into double butted tubes, to reduce weight without sacrificing any of its strength. The result? Exceptionally light, strong and tough frames.

size

Easy Entry: 46cm, 50cm, 54cm

fork

SR Suntour NEX, 63mm

Drivetrain & brakes

brake system

Shimano BR-MT200/UR300, Hydr, Disc Brake, PM/FM (160/160)

rear derailleur

Shimano Essa RD-U2000-GS, 8-Speed

shifters

Shimano SL-M315, Rapidfire-Plus

bottom bracket

Thun Paso-ML, 68mm, BSA

chain

KMC Z51

Cockpit

headset

CUBE FPH863, Semi-Integrated

Stem

CUBE Comfort Stem Pro, 31.8mm, Adjustable

handlebar

CUBE Comfort Trail Bar, 680mm

grips

ACID Travel Comfort

Wheels

rims

ACID EX25, 32H, Disc, Tubeless Ready

front hub

Shimano DH-3D37, Hub Dynamo, QR, Centerlock

rear hub

Shimano FH-QC300-HM, QR, Centerlock

tyres

CUBE Trekking, 47-622

Finishing kit

saddle

ACID Sequence 160

seat post

CUBE Performance Post, 27.2mm

pedals

ACID PP Trekking

front light

CUBE Shiny 50

rear light

ACID Pro-D SIC 2.0

kickstand

ACID FM Pure Kickstand

mudguards

ACID SIC 2.0 50

bell

Nuvo

carrier

ACID SIC 2.0, RILink

Product information

colour

bluebird´n´grey

weight

18,7 kg

Art. No

162112

SRP*

699 GBP

*Suggested retail price

Due to unforeseeable supply chain issues, the bike may be delivered with modifications.

More Information

Bike category of use: 2

You can find more information about Bike Classification at the following link.

More Information

100
kg

Maximum rider weight

The rider weight refers to the weight of the rider including clothing and any equipment worn on the body.

Please see the table for information on the distribution of weight across the system in conjunction with compatible accessories (luggage carriers, bike trailers, etc.).

System weight table

Geometry

	46 cm	50 cm	54 cm
Seat tube	460	500	540
Top Tube Horizontal	578	593	608
Seat angle	74°	73°	73°
Head tube angle	70°	70°	70°
Chainstays	455	455	455
Head tube	170	185	200
Wheelbase	1094	1098	1114
BB-Height to Hub	-75	-75	-75
Reach	391	390	401
Stack	650	665	679

Ergonomics

	46 cm	50 cm	54 cm
Stem length	90	90	90
Angle stem	17°	17°	17°
Handlebar width	680	680	680
Crank length	170	170	175
Length seat post	350	350	350
Diameter seatpost	27.2	27.2	27.2
Max. insertion depth seat post	300	300	300
Diameter tire maximum	728	728	728
Width tire maximum	48	48	48
