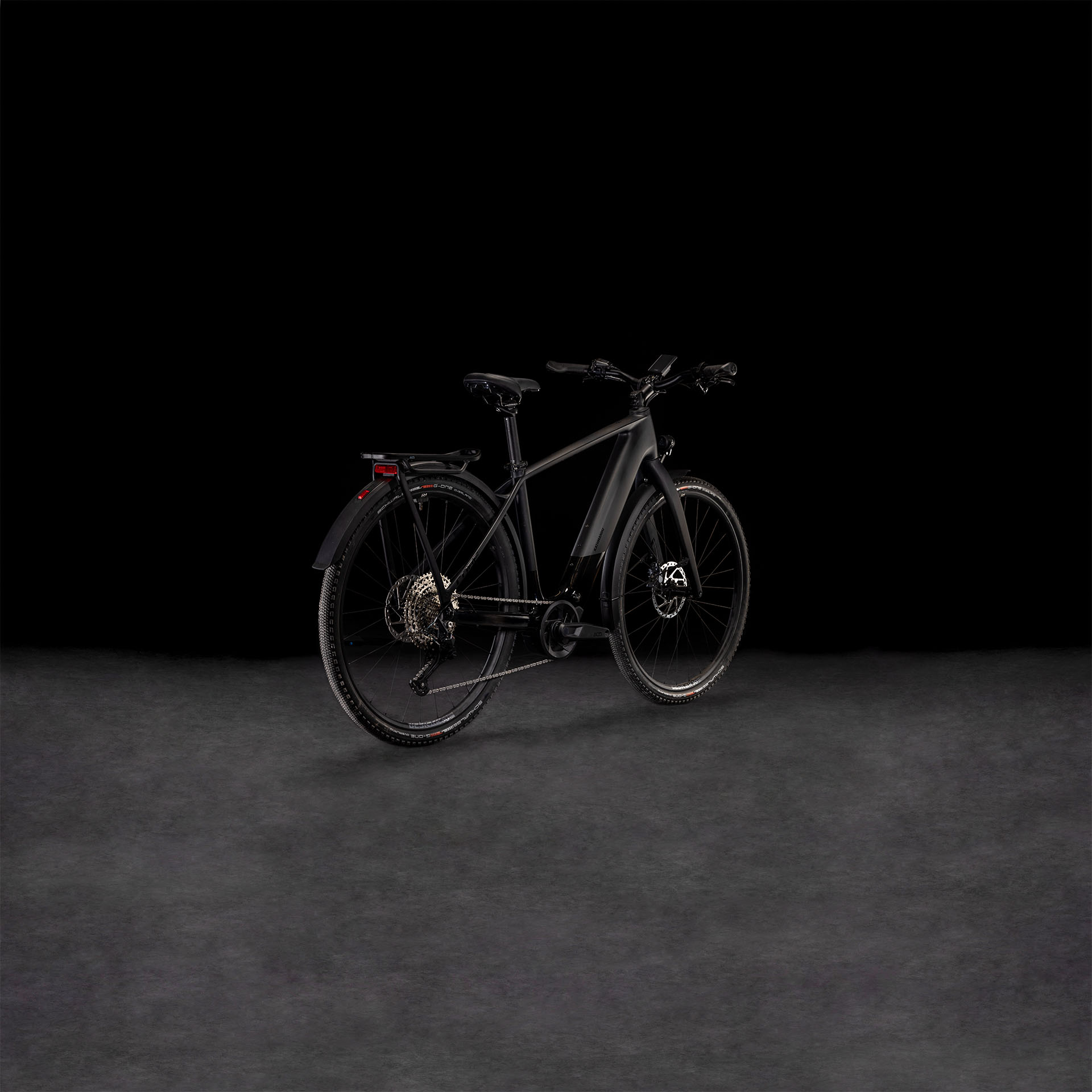

A lighter touring bike means you can take more with you, but low weight is no good without strength. That's why, for the CUBE Kathmandu Hybrid C:62, we used our tried-and-tested C:62® carbon to build a frame structure that combines the load-bearing capacity you need with the comfort and ride handling that you'd expect from CUBE. With a future-proof UDH gear hanger, advanced internal cable routing and Boost front and rear axles, it's both elegant and easy to live with. The rigid carbon fork is light and responsive, while the IC 3.0 rear carrier is adaptable and offers a sturdy platform for carrying whatever you need to take with you. Add the 400Wh battery, and it's the complete package for lightweight hybrid touring.
Frame Material
Battery

Frame
frame
C:62® Advanced Twin Mold, Efficient Comfort Geometry, Boost148, Fixed Integrated Battery, Flat Mount Disc, Integrated Carrier 3.0, Advanced Internal Cable Routing, UDH™
size
Classic: 50 cm, 54 cm, 58 cm, 62 cm
Rigid fork
CUBE C:62® Technology, 1 1/2" - 1 1/2" Tapered, Internal Light Cable Option, 15x110mm
E-bike system
drive unit
Bosch Drive Unit Performance SX (55Nm) Cruise (250 Watt), Smart System
Remote
Bosch LED Remote
battery
Bosch CompactTube 400
display
Bosch Kiox 500
charger
Bosch 4A
Drivetrain & brakes
brake system
Shimano Deore BR-M6100, Hydr. Disc Brake (180/180)
rear derailleur
Shimano Deore RD-M6100-SGS, ShadowPlus, 12-Speed
shifters
Shimano Deore SL-M6100-IR, Direct Attach
crankset
ACID MTB Hybrid Pro
cassette
Shimano Deore CS-M6100, 10-51T
chain
Shimano CN-M6100
Cockpit
Stem
CUBE Performance Stem Pro, 31.8mm
handlebar
CUBE Comfort Trail Bar, 700mm
grips
ACID Travel Comfort
Wheels
wheelset
Newmen Beskar 30, 28/28 Spokes (Light/Base), 15x110mm / 12x148mm, Tubeless Ready
tyres
Schwalbe G-ONE Overland, SuperGround, Kevlar, 50-622
Finishing kit
saddle
Natural Fit Sequence Comfort
seat post
CUBE Performance Post, 31.6mm
pedals
ACID PP MTB
front light
ACID Front Light PRO-E 110, 5-16V, DC
rear light
ACID Mudguard Rear Light PRO-E, 12V, DC
kickstand
ACID FM Pure Kickstand
mudguards
ACID 60 Integrated Carrier 3.0
bell
ACID Alpha GR
carrier
ACID Integrated Carrier 3.0, CUBE Adapter Compatible
Product information
colour
carbon´n´black
weight
16,9 kg
Art. No
812900
SRP*
3699 GBP
*Suggested retail price
Because of ongoing problems in the delivery chain, the bike can be delivered with modifications.
More Information
Bike category of use: 2
You can find more information about Bike Classification at the following link.
100
kg
Maximum rider weight
The rider weight refers to the weight of the rider including clothing and any equipment worn on the body.
Please see the table for information on the distribution of weight across the system in conjunction with compatible accessories (luggage carriers, bike trailers, etc.).
Geometry
50 cm | 54 cm | 58 cm | 62 cm | |
Seat tube | 440 | 490 | 540 | 590 |
Top Tube Horizontal | 582 | 593 | 604 | 615 |
Seat angle | 75° | 75° | 75° | 75° |
Head tube angle | 70° | 70° | 70° | 70° |
Chainstays | 490 | 490 | 490 | 490 |
Head tube | 130 | 150 | 170 | 190 |
Wheelbase | 1127 | 1140 | 1153 | 1166 |
BB-Height to Hub | 75 | 75 | 75 | 75 |
Protrusion height - 80mm | 773 | 813 | 850 | 883 |
Reach | 397 | 403 | 408 | 414 |
Stack | 618 | 637 | 656 | 675 |
Ergonomics
50 cm | 54 cm | 58 cm | 62 cm | |
---|---|---|---|---|
Stem length | 75 | 75 | 75 | 75 |
Angle stem | 17° | 17° | 17° | 17° |
Handlebar width | 700 | 700 | 700 | 700 |
Crank length | 165 | 165 | 165 | 165 |
Length seat post | 300 | 350 | 350 | 350 |
Diameter seatpost | 31.6 | 31.6 | 31.6 | 31.6 |
Max. insertion depth seat post | 260 | 280 | 300 | 300 |
Diameter tire maximum | 746 | 746 | 746 | 746 |
Width tire maximum | 50 | 50 | 50 | 50 |
All values are given in millimetres or degrees.
