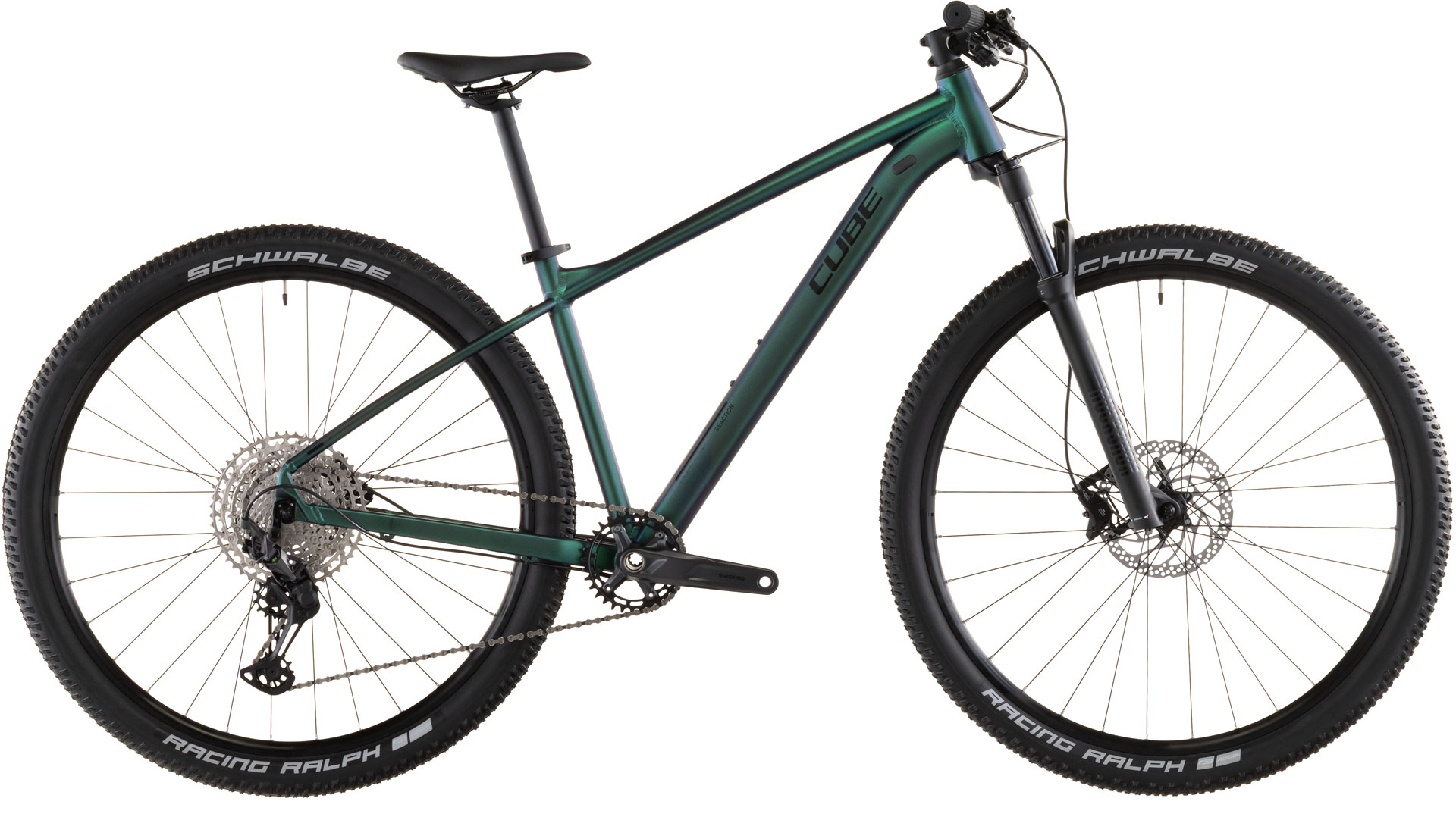

REACTION
PRO

SRP* 8299 DKK

ArtNo. 143110

goblin´n´black

Comparison

TOUR MEETS
TRAIL

The Reaction's sleek looks are thanks to its Smooth Welded head tube and seat tube junctions. It incorporates a threaded bottom bracket and Internal Cable Routing, plus a flat disc mount that integrates seamlessly with our kickstand mount and integrated mounting points for ACID mudguards and carrier. Trail-ready geometry includes a lower top tube and tapered head tube for more confident handling, and there's plenty of room to run wide, grippy and comfortable 2.25in tyres. And, as your skills increase, there's scope to fit a dropper post upgrade.

Frame Material

Aluminium Lite

Sizes

Size Split

Highlights

A great bike just gets out of the way and lets its rider react to the trail. With the Reaction Pro we sweated the frame's design and geometry to give it great handling, and fitted reliable components – like Shimano's legendarily easy to use gears and brakes – so you can concentrate on the task at hand.

The Reaction Pro is all about the ideal blend of function, reliability and performance. That's why we began with the precision of Shimano's XT 1x12 gears, because they offer an enormous range and an unparalleled reputation for accuracy. We added Shimano hydraulic disc brakes for their reliable all-weather stopping performance to help keep you safe, whether you're out in the hills or battling across town. And we finished with the RockShox Judy Silver air fork, because it combines easy adjustability and a remote lockout with trail-smoothing alacrity. It's the complete package.

Frame

frame

Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Tapered Head Tube, Flat Mount Brake, SIC Mount, FM Kickstand Mount

There's aluminium, and then there's CUBE Aluminium Lite. This heat-treated 6061 aluminium is stiff, fatigue-resistant and, because of its natural corrosion resistance, a great material from which to make lightweight tube sets – and bicycle frames. And it does all this without adding unnecessary weight, so you can get the best enjoyment out of your CUBE.

The right bike should fit you perfectly. That's why we created Size Split. For shorter riders, the smaller 27.5in wheel standard allows us to build frames that fit well while remaining agile and sure-footed. And, for taller riders, we built a range of sizes around the fast-rolling 29er wheel standard. Whichever one you choose, you can be sure of a fit that makes your bike feel as though it was built just for you.

A kickstand can be useful, no two ways about it. But if it's going to do its job properly, it needs a secure mount. That's why we put as much effort into designing the Kickstand Mount for our frames as we do for any other feature. Neat, unobtrusive but exceptionally strong and stable, it's the best way to help keep your CUBE bike upright when you're not riding it.

Cables connect your handlebar controls to vital components like gears and brakes, but there's no need for them to get in your way. With Internal Cable Routing we've reduced clutter and maintenance by running cables through the frame, keeping them out of the way of dust and water contamination – or damage from abrasion – as well as cleaning up your bike's appearance.

Flexibility is important for a bike that's going to slot into your life. That's why, for our Semi Integrated Carrier Mount, we designed a system that's unobtrusive when you don't need it and really simple to use when you do. By adding our Semi-Integrated Carrier your CUBE can take on the shopping, your commute, or take you further afield at the weekend...

Smooth Welding isn't easy, but worthwhile things usually aren't. It has two advantages. First, and most obviously, it looks great: one tube seems to almost flow into the other. Second, and at least as importantly, it helps to minimise load peaks on welded areas for better frame strength and durability.

size

Size Split: 27.5: XS, S // 29: M, L, XL, XXL

Suspension

Suspension fork

RockShox Judy Silver TK AIR, 100mm, PopLoc

Drivetrain & brakes

brake system

Shimano BR-MT410, Hydr. Disc Brake (180/160)

rear derailleur

Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed

shifters

Shimano XT SL-M8100

bottom bracket

Prowheel BSA PW-MB68

crankset

Shimano FC-MT511, 32T, Boost

cassette

Shimano Deore CS-M6100, 10-51T

chain

KMC X12

Cockpit

headset

CUBE FPH868, Semi-Integrated

Stem

CUBE Performance Stem SLX, FPI-Link, 31.8mm

handlebar

CUBE Rise Trail Bar, 680mm

grips

ACID Icon

Wheels

rims

ACID EX25, 32H, Disc, Tubeless Ready

front hub

Shimano HB-QC300, QR, Centerlock

rear hub

Shimano FH-QC500-MS, QR, Centerlock

tyres

Schwalbe Racing Ralph, Addix Performance, Kevlar, 2.25

Finishing kit

saddle

ACID Venec Lite

seat post

CUBE Performance Post, 27.2mm

pedals

ACID PP MTB

Product information

colour

goblin´n´black

weight

13,6 kg

Art. No

143110

SRP*

8299 DKK

*Suggested retail price

Due to unforeseeable supply chain issues, the bike may be delivered with modifications.

More Information

Bike category of use: 2

You can find more information about Bike Classification at the following link.

More Information

100
kg

Maximum rider weight

The rider weight refers to the weight of the rider including clothing and any equipment worn on the body.

Please see the table for information on the distribution of weight across the system in conjunction with compatible accessories (luggage carriers, bike trailers, etc.).

System weight table

Geometry

	XS	S	M	L	XL	XXL
Seat tube	340	370	420	470	515	560
Top Tube Horizontal	555	575	595	615	635	655
Seat angle	74°	73.5°	73.5°	73.5°	73.5°	73.5°
Head tube angle	68.5°	68.5°	68.5°	68.5°	68.5°	68.5°
Chainstays	427	427	450	450	450	450
Head tube	108	111	111	122	142	157
Wheelbase	1068	1082	1125	1146	1168	1190
BB-Height to Hub	52	52	65	65	65	65
Protrusion height - 80mm	707	720	759	792	824	858
Reach	384	398	409	426	441	457
Stack	595	598	627	637	656	670

Ergonomics

	XS	S	M	L	XL	XXL
Stem length	50	50	60	60	70	70
Angle stem	6°	6°	6°	6°	6°	6°
Handlebar width	680	680	720	720	720	720
Crank length	170	175	175	175	175	175
Length seat post	350	350	400	400	400	400
Diameter seatpost	27.2	27.2	27.2	27.2	27.2	27.2
Diameter tire maximum	708	708	747	747	747	747
Width tire maximum	60	60	60	60	60	60
