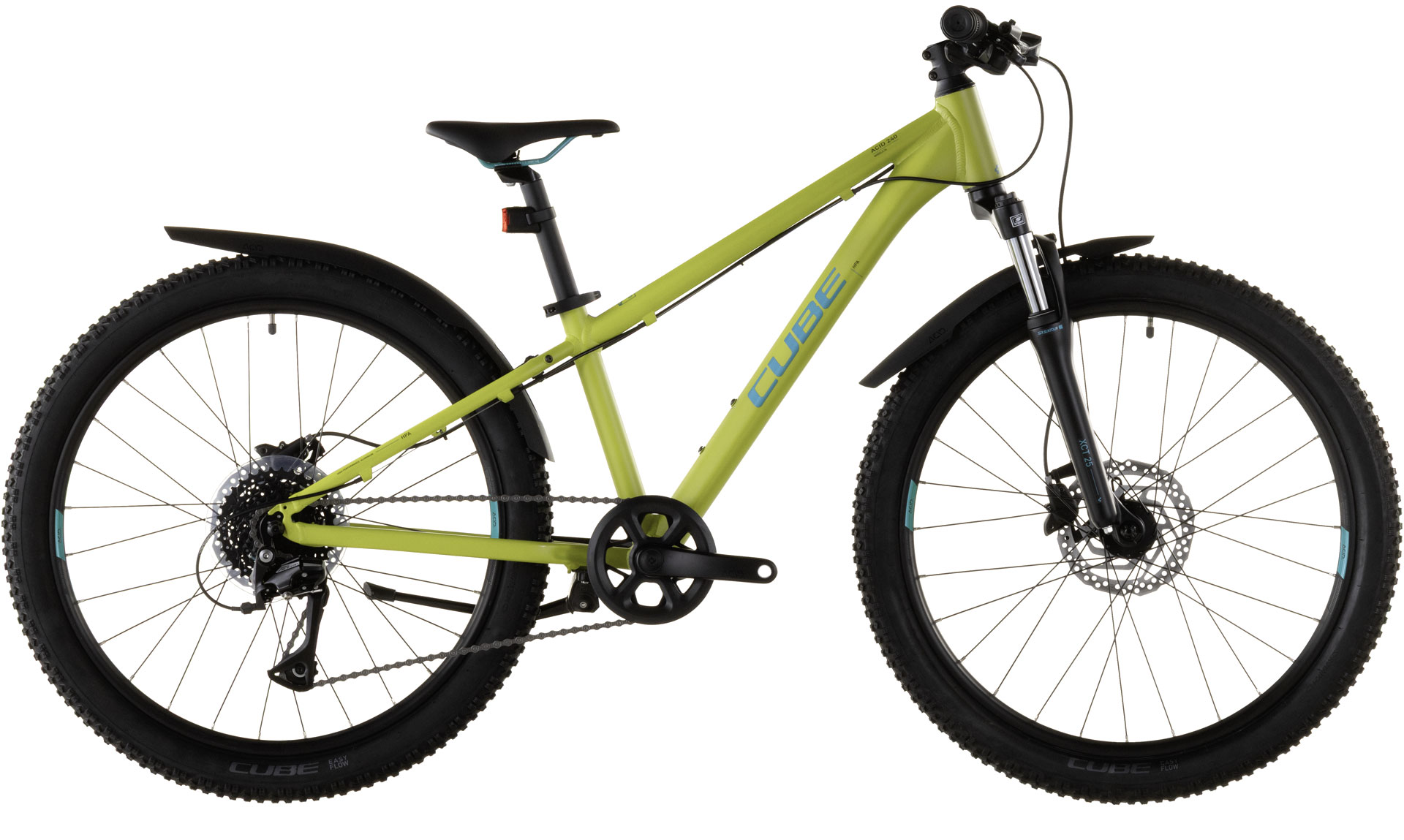

ACID 240
DISC FE

SRP* 449 GBP

ArtNo. 151550

lizard´n´blue

Comparison

FULLY EQUIPPED
FOR ADVENTURE

Built from the same heat-treated 6061 aluminium tubes as our adult bikes, the Acid 240 Disc FE's frame is every bit as tough as a full-size mountain bike but with the right weight and proportions for a child, and with disc mounts for the added reassurance of safe all-weather braking. A full range of accessories – including mudguards, lighting system and kickstand – means it's fully equipped for any adventure. The handling is designed to be both fun and confidence-inspiring, and the gear hanger is easily replaceable so that a knock or crash needn't result in an expensive repair.

Frame Material

Aluminium Lite

Wheels

24"

Configuration

FE

Highlights

A great bike can give young riders their first taste of independence, freedom and responsibility. With the Acid 240 Disc FE we've combined the fun of a sense of adventure with the safety of disc brakes and included lights, so they can enjoy exploring and you can rest assured that they're safe. Win-win!

Kids have a sense of adventure, and that's what the Acid 240 Disc FE offers. Fully equipped with everything from clip-on mudguards to a kickstand and lights, they'll love its go-anywhere potential and you'll love the fact that they're riding a bike that's built with safety in mind. Powerful disc brakes with levers designed for small hands offer safe stopping even in wet weather, too. And, with 8-speed gears and a suspension fork for added comfort and control, it's everything your young cyclist needs to stay safe and have fun.

Frame

frame

Aluminium Lite 6061

There's aluminium, and then there's CUBE Aluminium Lite. This heat-treated 6061 aluminium is stiff, fatigue-resistant and, because of its natural corrosion resistance, a great material from which to make lightweight tube sets – and bicycle frames. And it does all this without adding unnecessary weight, so you can get the best enjoyment out of your CUBE.

A bicycle is such a versatile tool. That's why many riders add accessories like a luggage carrier, mudguards, kickstand and lights. But with our Fully Equipped range you don't have to, because we've already taken care of all of that. With carefully selected accessories that match and integrate with each bike, you're all set for any journey from the weekday commute to a longer tour.

size

24"

fork

SR Suntour SF20 XCT JR, 50mm

Drivetrain & brakes

brake system

Shimano BR-MT200, Hydr. Disc Brake (160/160)

rear derailleur

Shimano RD-M3020, 8-Speed

shifters

Shimano SL-M315, Rapidfire-Plus

bottom bracket

Thun PASO-ML BSA

crankset

ACID 32T, 127mm with Chainguard

cassette

Sunrace CSM55,11-34

chain

KMC Z8.3

Cockpit

headset

CUBE FPH863, Semi-Integrated

Stem

CUBE Aluminium Lite

handlebar

CUBE Aluminium Lite, 580mm

grips

Propalm ACID Kids

Wheels

wheelset

ACID Pro DB-19, 28/28H, QR/QR

tyres

CUBE, 2.1

Finishing kit

saddle

CUBE Kid

seat post

CUBE Aluminium Lite, 27.2mm

pedals

ACID PP Rookie medium

front light

ACID PRO 20 CMPT

kickstand

URSUS 71 Elegance Kid

mudguards

ACID Mud Rookie

bell

ACID

Product information

colour

lizard´n´blue

weight

12,3 kg

Art. No

151550

SRP*

449 GBP

*Suggested retail price

Due to unforeseeable supply chain issues, the bike may be delivered with modifications.

More Information

Bike category of use: 2Y

You can find more information about Bike Classification at the following link.

More Information

65
kg

Maximum rider weight

The rider weight refers to the weight of the rider including clothing and any equipment worn on the body.

Please see the table for information on the distribution of weight across the system in conjunction with compatible accessories (luggage carriers, bike trailers, etc.).

System weight table

This children's bike is a OneSize model suitable for kids up to the following maximum measurements:
HEIGHT: 118 - 136 cm
INSEAM: 52 - 63 cm
Please note this information is only a general recommendation. It cannot replace a personal consultation and test ride with a CUBE dealer.

Geometry

	24"
Seat tube	309
Top Tube Horizontal	524
Seat angle	72.4°
Head tube angle	69°
Chainstays	426
Head tube	108
Wheelbase	983
BB-Height to Hub	40
Protrusion height - 80mm	637
Reach	358
Stack	529
