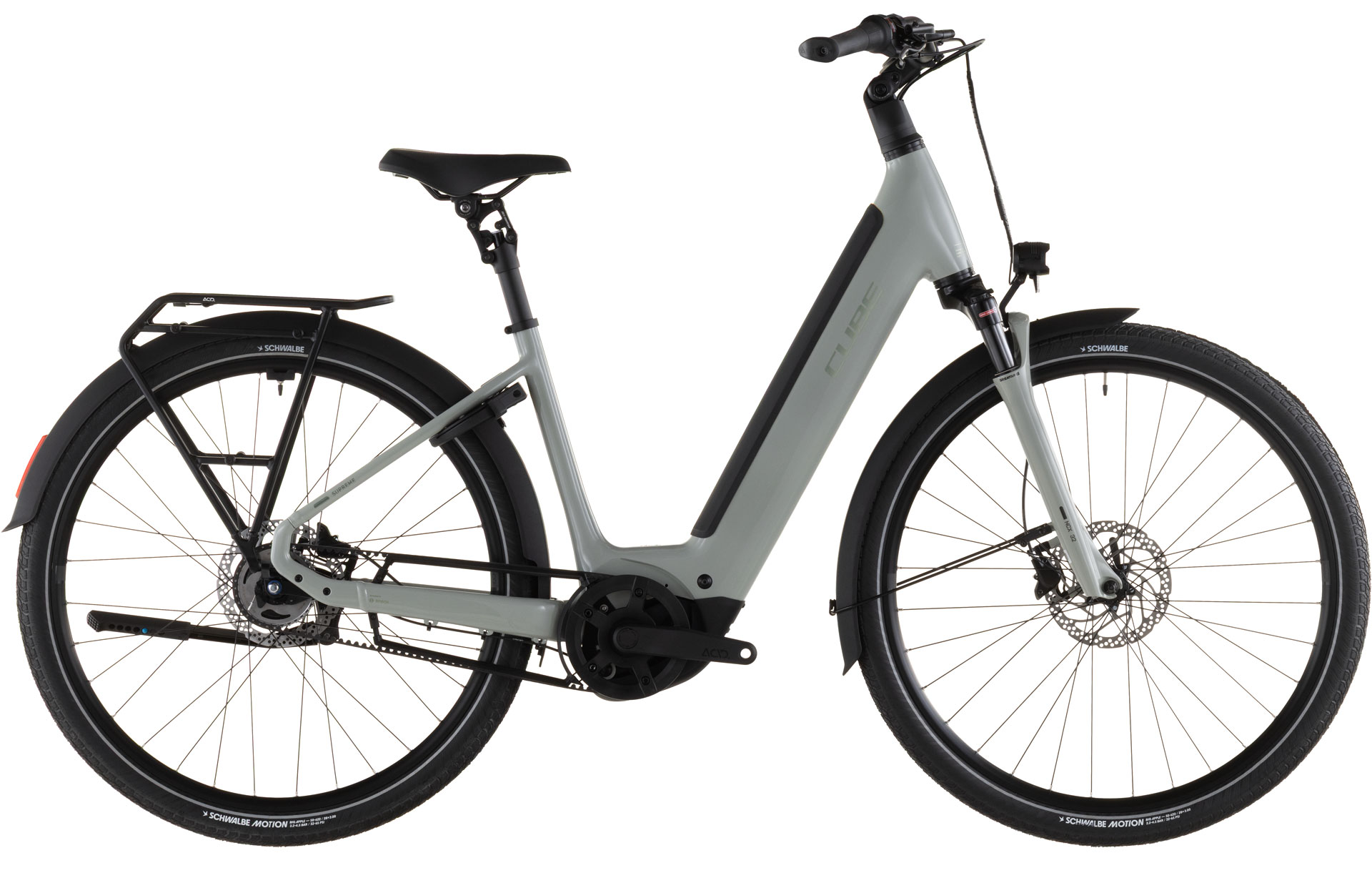

SUPREME HYBRID DELUXE
ONE 600

SRP* 2999 EUR

ArtNo. 114410

ashgreen´n´chrome

Check availability

availability

Comparison

FOR WORK.
FOR SHOPPING.
FOR FUN.

It's the detail you can't see that makes the Supreme Hybrid frame so good at its job. For example, the 600Wh Bosch PowerTube battery is stowed neatly inside the down tube, while Smooth Welding complements the frame's clean, almost organic lines. The Performance Line motor delivers smooth pedal assistance up to 75 Nm, making light work of any journey. Integrated Cable Routing and X-Connect keep wires and cables out of sight and out of harm's way. There's a wide range of sizes from 42cm to 58cm, so everyone should be able to find their ideal fit. The Semi-Integrated Carrier 2.0 is equal parts neat and sturdy, giving you a solid platform on which to carry... well, whatever you need. And we added mudguards, a full lighting system and a kickstand, so you really are all set.

Frame Material

Aluminium Superlite

Battery

600Wh

Sizes

Size Split

Highlights

Getting around town should be a pleasure, not a chore. That's why we fitted the Supreme Hybrid Deluxe ONE with a smooth Bosch motor and a 600Wh battery, to give your pedalling a little help. With comfortable handling and practical accessories, it's all you need for two-wheeled city life.

With its Easy Entry frame – available in a wide range of sizes – and clean, low-maintenance Gates belt drive, the Supreme Hybrid Deluxe ONE is the epitome of hassle-free cycling for everyone. The Semi Integrated Carrier 2.0, mudguards, kickstand and lighting system give you everything you need for any trip, town or country. There's an adjustable stem, air-sprung suspension fork and parallelogram suspension seatpost to make every journey as comfortable as possible. Shimano's simple 5-speed hub gears work with the Bosch Performance drive and 600Wh battery to get you where you need to be – and back. And we fitted grippy and smooth-rolling Schwalbe 50mm tyres and powerful Shimano hydraulic disc brakes, so you're always in full control.

Frame

frame

Aluminium Superlite, Comfort Ride Geometry, Premium Comfort And Safety, Semi-Integrated Carrier, Fully Integrated Battery, Advanced Internal Cable Routing

The Fully Integrated Battery system tucks the power of Bosch's battery out of sight, safely inside the confines of your bike's downtube. Hidden beneath a splash and dust-proof cover and secured with a lock to prevent theft, it allows us to design beautiful e-bike frames that are as brilliantly functional as they are good to look at.

Gear and brake cables need a way to get from handlebar controls to frame – but what if there was no need for holes near the head tube? We came up with a design that takes cables into the frame via the headset, maintaining full internal cable routing but making it even neater and less obtrusive.

In many ways the battery is the heart of an e-bike. That's why, with our Modular Battery System, we've made a setup that's easy to use. You can charge the battery on or off the bike, and we've made room for even high capacity batteries. You'll wonder how you ever managed without it.

A luggage carrier needn't be a complicated, ugly addition to your bike. Our Semi-Integrated Carrier is so neat, you'll barely notice it... until it's time to carry something back from the shops, or ride to work, or nip across town to fetch something. Sturdy and adaptable, it's just what you need to make day-to-day life a little easier.

As you might expect, our Comfort Ride Geometry delivers maximum comfort on two wheels. Because after all, who doesn't want a comfortable ride? We sweated the details of frame angles and dimensions to create a natural-feeling ride position and the ideal combination of stability and agility, so you not only feel comfortable but safe, too.

Smooth Welding isn't easy, but worthwhile things usually aren't. It has two advantages. First, and most obviously, it looks great: one tube seems to almost flow into the other. Second, and at least as importantly, it helps to minimise load peaks on welded areas for better frame strength and durability.

CUBE's Aluminium Superlite starts with heat-treated 6061 aluminium, which has the qualities – high fatigue resistance, good stiffness, low weight and excellent strength – that are important for a bicycle frame. Then we make it into double butted tubes, to reduce weight without sacrificing any of its strength. The result? Exceptionally light, strong and tough frames.

X-Connect is the simple way to attach a compatible ACID light to your CUBE bike. With a connector built into the headset and the wiring hidden in the frame, all that's left to do is attach the light, plug it in... and off you go. See and be seen, the easy way.

size

Easy Entry: Size Split: 26: 42cm // 28: 46cm, 50cm, 54cm, 58cm

Suspension

Suspension fork

SR Suntour NCX32, D LO Air, 50mm

E-bike system

drive unit

Bosch Drive Unit Performance Line 75Nm (BDU34)

Remote

Bosch Purion 200 with Integrated Display

battery

Bosch PowerTube 600

charger

Bosch 2A

Drivetrain & brakes

brake system

Shimano BR-MT200, Hydr. Disc Brake (180/180)

shifters

Shimano Nexus SL-C7000-5, Revoshift

crankset

ACID Trekking Hybrid, 46T

cassette

Gates Rear Sprocket CDX, 34T

drive belt

Gates CDC, 130T

Cockpit

headset

ACROS AZF-1035, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), HIC

Stem

CUBE Comfort Stem Pro, 31.8mm, Adjustable

handlebar

CUBE Comfort Shape Bar

grips

ACID Travel Comfort Gripshift

Wheels

rims

CUBE EX25, 32H, Disc, Tubeless Ready

front hub

Shimano HB-QC300, QR, Centerlock

rear hub

Shimano Nexus SG-C7000-5D, 5-Speed, Centerlock, Nut

tyres

Schwalbe Motion Big Apple, PerfL, RaceGuard, 50-622

Finishing kit

saddle

ACID Shen Pro

seat post

SR Suntour NVX, 31.6mm

pedals

ACID PP Trekking

front light

ACID Front Light PRO-E 60 X-Connect, 12V, DC

rear light

ACID Mudguard Rear Light PRO-E, 12V, DC

kickstand

ACID FM Pure Kickstand

mudguards

ACID 50 BB-Mount

bell

Reich Cycle Bells Ringsound

carrier

ACID SIC 2.0 RILink

Product information

colour

ashgreen´n´chrome

weight

28,0 kg

Art. No

114410

SRP*

2999 EUR

*Suggested retail price

Due to unforeseeable supply chain issues, the bike may be delivered with modifications.

More Information

Bike category of use: 1

You can find more information about Bike Classification at the following link.

More Information

110
kg

Maximum rider weight

The rider weight refers to the weight of the rider including clothing and any equipment worn on the body.

Please see the table for information on the distribution of weight across the system in conjunction with compatible accessories (luggage carriers, bike trailers, etc.).

System weight table

Geometry

	42 cm	46 cm	50 cm	54 cm	58 cm
Seat tube	380	420	460	510	560
Top Tube Horizontal	600	593	605	617	629
Seat angle	73°	72.3°	72.3°	72.3°	72.3°
Head tube angle	68°	69°	69°	69°	69°
Chainstays	465	499	499	499	499
Head tube	197	164	179	194	214
Wheelbase	1151	1148	1161	1174	1188
BB-Height to Hub	44	75	75	75	75
Reach	408	383	391	399	405
Stack	621	655	669	683	702

Ergonomics

	42 cm	46 cm	50 cm	54 cm	58 cm
Stem length	65	65	80	80	80
Handlebar width	660	660	660	660	660
Crank length	160	165	165	165	165
Length seat post	350	350	350	350	350
Diameter seatpost	31.6	31.6	31.6	31.6	31.6
Max. insertion depth seat post	180	180	210	235	285
Diameter tire maximum	669	736	736	736	736
Width tire maximum	50	50	50	50	50
