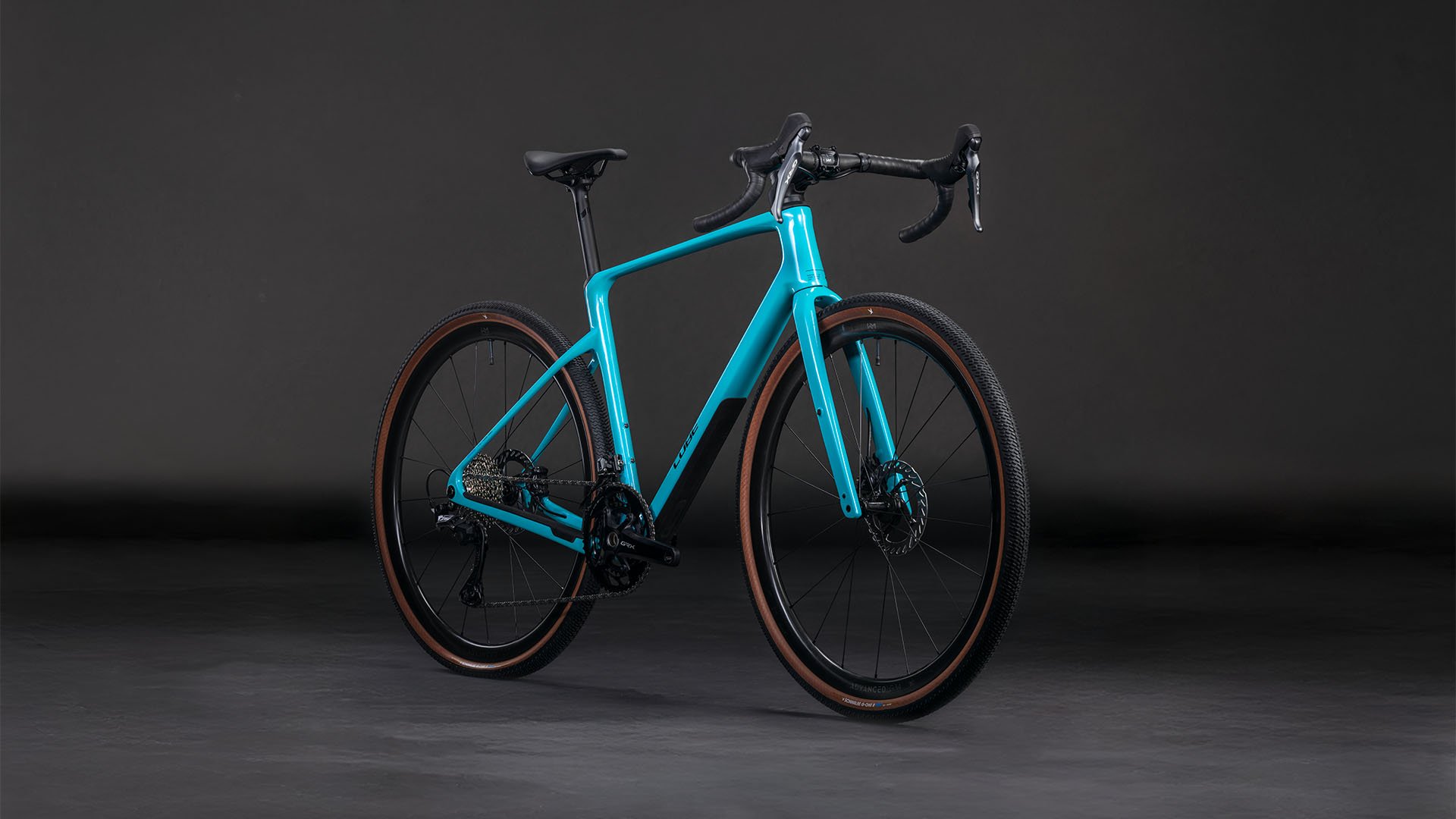

NUROAD C:62
PRO

SRP* 31290 NOK

ArtNo. 130205

swimmingpool´n´black

Comparison

LIGHTWEIGHT
TOUGHNESS

The Nuroad C:62 frame takes everything we know about carbon frames and repackages it in a format that's perfect for gravel. There's ample frame clearance for tyres up to 50mm (45mm with mudguards). An integrated seat clamp and semi-integrated cable routing complement the frame's elegant, organic appearance. The C:62® carbon fork has two carrier mounting positions, while the frame itself is ready to accept mudguards and a rear carrier, should you wish to fit them. And the overall weight for all this? Just 1,150g for a mid-sized frame. So it's tough, but also extremely light. The ideal basis for a new approach to gravel exploration.

Frame Material

C:62®

Tire clearance

50mm

Highlights

Adventurous spirit? The Nuroad C:62 Pro is your perfect partner. Built from our premium C:62® carbon and with a matching fork, its carefully selected components, gravel-specific geometry, light weight and adaptable design make it the ideal gateway to new adventures of the dirt road kind.

The Nuroad C:62 Pro combines the comfort and low weight of a full carbon gravel chassis with Shimano's gravel-specific GRX 2x12 groupset, giving you everything you need to explore further afield with a huge range of closely spaced gears. The Newmen Advanced G.34 Carbon wheelset is the ideal home for a pair of super-grippy Schwalbe 45mm G-One R Pro tyres, with space for up to 50mm if needed. Add the power of Shimano GRX 2-piston hydraulic disc brakes and the comfort of a full C:62® carbon fork, and you're all out of excuses. Where will it take you next weekend?

Frame

frame

C:62® Advanced Twin Mold Technology, Internal Cable Routing, Integrated Seat Post Clamp, Flat Mount Disc, Fender/Rack & Kickstand Option, 12x142mm, UDH™

Not all carbon is created equal. With our C:62® carbon we increased the high modulus fibre content, then we reinforced the resulting material with nanoparticles incorporated into the bonding resin. Which is all just a fancy way of saying it's extremely strong, light and durable.

Gear and brake cables need a way to get from handlebar controls to frame – but what if there was no need for holes near the head tube? We came up with a design that takes cables into the frame via the headset, maintaining full internal cable routing but making it even neater and less obtrusive.

Our Integrated Seatpost Clamp is all part of our quest to sweat the details, so that you can reap the rewards. Its minimalist design suits the frame's pared-back aesthetic. And, of course, that's important – because why wouldn't you want your bike to look great? But it also saves a few grammes too. And that matters just as much...

Adventure sometimes demands different kit. That's where our low rider rack mounts come in. Designed to accept an optional fork rack, they're a great way to carry up to 10kg of additional weight for extended tours. Not only that but carrying some of your luggage over the front wheel helps improve weight distribution and handling. Win, win.

For gravel epics – or races – into the back country and beyond, our Gravel Endurance Geometry is designed with you in mind. With a ride position optimised for long days in the saddle and frame angles and dimensions geared towards the perfect balance of agility and stability, it's all you need for off-road adventure.

A gravel bike is a supremely versatile beast, which is why all our gravel models have a fender and rack option. With generous frame clearances to fit comfortable, safe and grippy tyres even with full length mudguards, we also neatly integrated the rear rack into the mudguard design – and included a rear light, too.

With our Advanced Twin Mold process we use two precisely manufactured forms for our C:62®, C:68® and C:68X® carbon frames. The first form is to ensure an accurate layup. The second, inner form keeps every individual fibre precisely where it needs to be while the frame cures. The result is a significantly lighter, stronger frame, with fibre density tailored to anticipated loadings at specific points.

Because the Nuroad C:62 is built for adventure, we added a third bottle cage mount under the down tube. Use it for carrying tools and a spare inner tube, or carry another water bottle – the choice is yours. Either way, you're all set for extended exploring.

size

XS, S, M, L, XL

Rigid fork

CUBE C:62® Technology, 1 1/8" - 1 1/2" Tapered, Integrated Cable Routing, Flat Mount Disc, Fender & Lowrider Mounts, Internal Light Cable Option, 12x100mm

Drivetrain & brakes

shift/ brake levers

Shimano GRX ST-RX820

brake system

Shimano GRX BR-RX820, Hydr. Disc Brake, Flat Mount (160/160)

rear derailleur

Shimano GRX RD-RX820, 12-Speed

front derailleur

Shimano GRX FD-RX820-F

bottom bracket

Shimano SM-BB71-41B, 86mm Pressfit

crankset

Shimano GRX FC-RX820, 48x31T

cassette

Shimano 105 CS-HG710, 11-36T

chain

Shimano CN-M7100

Cockpit

headset

ACROS, Top Integrated 1 1/2" w/ Integrated Cable Routing, Bottom Integrated 1 1/4"

Stem

CUBE CIS Stem w/ Cable Routing, FPI-Link

handlebar

Newmen Advanced Gravel Bar 318, Carbon, 31.8mm

handlebar tape

ACID Bartape CC 3.0

Wheels

wheelset

Newmen Advanced G.34, 21/21 Spokes, 12x100mm/12x142mm, Tubeless Ready

tyres

Schwalbe G-One R Pro, TLR, 45-622

Finishing kit

saddle

ACID Nuance Pro

seat post

Newmen Advanced, Carbon, 27.2mm

Product information

colour

swimmingpool´n´black

weight

8,7 kg

Art. No

130205

SRP*

31290 NOK

*Suggested retail price

Due to unforeseeable supply chain issues, the bike may be delivered with modifications.

More Information

Bike category of use: 2

You can find more information about Bike Classification at the following link.

More Information

100
kg

Maximum rider weight

The rider weight refers to the weight of the rider including clothing and any equipment worn on the body.

Please see the table for information on the distribution of weight across the system in conjunction with compatible accessories (luggage carriers, bike trailers, etc.).

System weight table

Geometry

	XS	S	M	L	XL
Seat tube	430	460	490	510	540
Top Tube Horizontal	522	537	560	575	592
Seat angle	75.5°	74.7°	73.9°	73°	73°
Head tube angle	69°	70°	71.5°	72°	72.5°
Chainstays	440	440	440	442	442
Head tube	102	124	155	174	197
Wheelbase	1043	1044	1046	1048	1060
BB-Height to Hub	70	70	70	70	70
Protrusion height - 80mm	743	771	805	824	851
Reach	388	388	393	392	402
Stack	520	544	579	599	623

Ergonomics

	XS	S	M	L	XL
Stem length	80	90	100	100	110
Handlebar width	400	420	420	440	440
Crank length	170	170	170	170	172.5
Length seat post	350	350	400	400	400
Diameter seatpost	27.2	27.2	27.2	27.2	27.2
Diameter tire maximum	728	728	728	728	728
Width tire maximum	50	50	50	50	50
