NUROAD C:62
PRO FE

SRP* 32490 NOK

ArtNo. 130210

vulcan´n´prism

Comparison

THE FREEDOM
TO CHOOSE

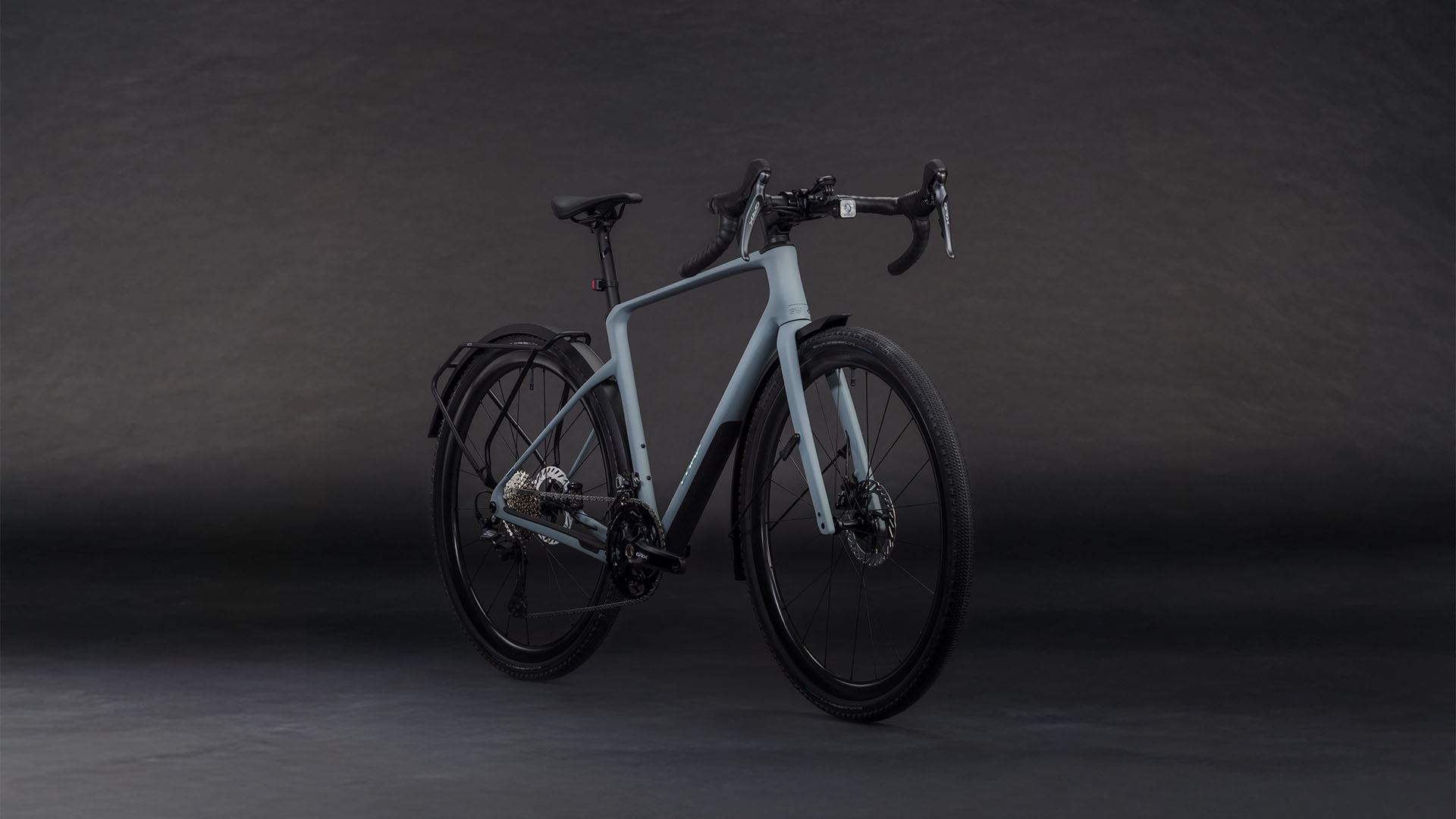

The Nuroad C:62 frame takes everything we know about carbon frames and repackages it in a format that's perfect for gravel. There's ample frame clearance for tyres up to 45mm, even with the included mudguards. The full equipment package includes a rear carrier, kickstand and lighting set too, whilst the C:62® carbon fork also has carrier mounting points for even more luggage-carrying capacity. An integrated seat clamp and semi-integrated cable routing complement the frame's elegant, organic appearance. And, with an overall weight of just 1,150g for a medium frame (excluding accessories), it's more than light enough to make even extended tours a pleasure.

Frame Material

C:62®

Tire clearance

45mm

Configuration

FE

Highlights

With its full equipment package of mudguards, rear carrier, lighting set and kickstand, the Nuroad C:62 Pro FE is ready to take on the world. From your daily commute to an extended exploration of gravel tracks in the mountains, it's got the handling and the kit for all of it. Are you ready?

You've got the itch – have you got the bike with which to scratch it? The Nuroad C:62 Pro FE's full equipment package – including mudguards, rear carrier, lighting set and kickstand – gives you a huge head start. For adventures of all sizes, for commuting... it's got you covered. The C:62® carbon frame and fork's light weight and impeccable handling ensure you're always comfortable, while powerful Shimano GRX 4-piston hydraulic disc brakes and grippy Schwalbe 45mm G-One Overland tyres on Newmen Performance Gravel 25 wheels give you the control you need in any weather conditions. And, of course, Shimano's rugged and easy-shifting GRX 2x12 gears mean you always have the right ratio, right there at your fingertips.

Frame

frame

C:62® Advanced Twin Mold Technology, Internal Cable Routing, Integrated Seat Post Clamp, Flat Mount Disc, Fender/Rack & Kickstand Option, 12x142mm, UDH™

Not all carbon is created equal. With our C:62® carbon we increased the high modulus fibre content, then we reinforced the resulting material with nanoparticles incorporated into the bonding resin. Which is all just a fancy way of saying it's extremely strong, light and durable.

A bicycle is such a versatile tool. That's why many riders add accessories like a luggage carrier, mudguards, kickstand and lights. But with our Fully Equipped range you don't have to, because we've already taken care of all of that. With carefully selected accessories that match and integrate with each bike, you're all set for any journey from the weekday commute to a longer tour.

Adventure sometimes demands different kit. That's where our low rider rack mounts come in. Designed to accept an optional fork rack, they're a great way to carry up to 10kg of additional weight for extended tours. Not only that but carrying some of your luggage over the front wheel helps improve weight distribution and handling. Win, win.

For gravel epics – or races – into the back country and beyond, our Gravel Endurance Geometry is designed with you in mind. With a ride position optimised for long days in the saddle and frame angles and dimensions geared towards the perfect balance of agility and stability, it's all you need for off-road adventure.

With our Advanced Twin Mold process we use two precisely manufactured forms for our C:62®, C:68® and C:68X® carbon frames. The first form is to ensure an accurate layup. The second, inner form keeps every individual fibre precisely where it needs to be while the frame cures. The result is a significantly lighter, stronger frame, with fibre density tailored to anticipated loadings at specific points.

size

XS, S, M, L, XL

Rigid fork

CUBE C:62® Technology, 1 1/8" - 1 1/2" Tapered, Integrated Cable Routing, Flat Mount Disc, Fender & Lowrider Mounts, Internal Light Cable Option, 12x100mm

Drivetrain & brakes

shift/ brake levers

Shimano GRX ST-RX820

brake system

Shimano GRX BR-RX820, Hydr. Disc Brake, Flat Mount (160/160)

rear derailleur

Shimano GRX RD-RX820, 12-Speed

front derailleur

Shimano GRX FD-RX820-F

bottom bracket

Shimano SM-BB71-41B, 86mm Pressfit

crankset

Shimano GRX FC-RX820, 48x31T

cassette

Shimano 105 CS-HG710, 11-36T

chain

Shimano CN-M7100

Cockpit

headset

ACROS, Top Integrated 1 1/2" w/ Integrated Cable Routing, Bottom Integrated 1 1/4"

Stem

CUBE CIS Stem w/ Cable Routing, FPI-Link

handlebar

Newmen Advanced Gravel Bar 318, Carbon, 31.8mm

handlebar tape

ACID Bartape CC 3.0

Wheels

wheelset

Newmen Advanced G.34, 21/21 Spokes, 12x100mm/12x142mm, Tubeless Ready

tyres

Schwalbe G-One Overland 365, Kevlar, TLR, 45-622

Finishing kit

saddle

ACID Nuance Pro

seat post

Newmen Advanced, Carbon, 27.2mm

front light

KNOG Blinder 120 StvZo

rear light

ACID Pro Evolution

mudguards

ACID 56 BB-Mount

bell

Knog Oi

carrier

ACID Gravel

Product information

colour

vulcan´n´prism

weight

10,8 kg

Art. No

130210

SRP*

32490 NOK

*Suggested retail price

Due to unforeseeable supply chain issues, the bike may be delivered with modifications.

More Information

Bike category of use: 2

You can find more information about Bike Classification at the following link.

More Information

100
kg

Maximum rider weight

The rider weight refers to the weight of the rider including clothing and any equipment worn on the body.

Please see the table for information on the distribution of weight across the system in conjunction with compatible accessories (luggage carriers, bike trailers, etc.).

System weight table

Geometry

	XS	S	M	L	XL
Seat tube	430	460	490	510	540
Top Tube Horizontal	522	537	560	575	592
Seat angle	75.5°	74.7°	73.9°	73°	73°
Head tube angle	69°	70°	71.5°	72°	72.5°
Chainstays	440	440	440	442	442
Head tube	102	124	155	174	197
Wheelbase	1043	1044	1046	1048	1060
BB-Height to Hub	70	70	70	70	70
Protrusion height - 80mm	743	771	805	824	851
Reach	388	388	393	392	402
Stack	520	544	579	599	623

Ergonomics

	XS	S	M	L	XL
Stem length	80	90	100	100	110
Handlebar width	400	420	420	440	440
Crank length	170	170	170	170	172.5
Length seat post	350	350	400	400	400
Diameter seatpost	27.2	27.2	27.2	27.2	27.2
Diameter tire maximum	728	728	728	728	728
Width tire maximum	50	50	50	50	50
