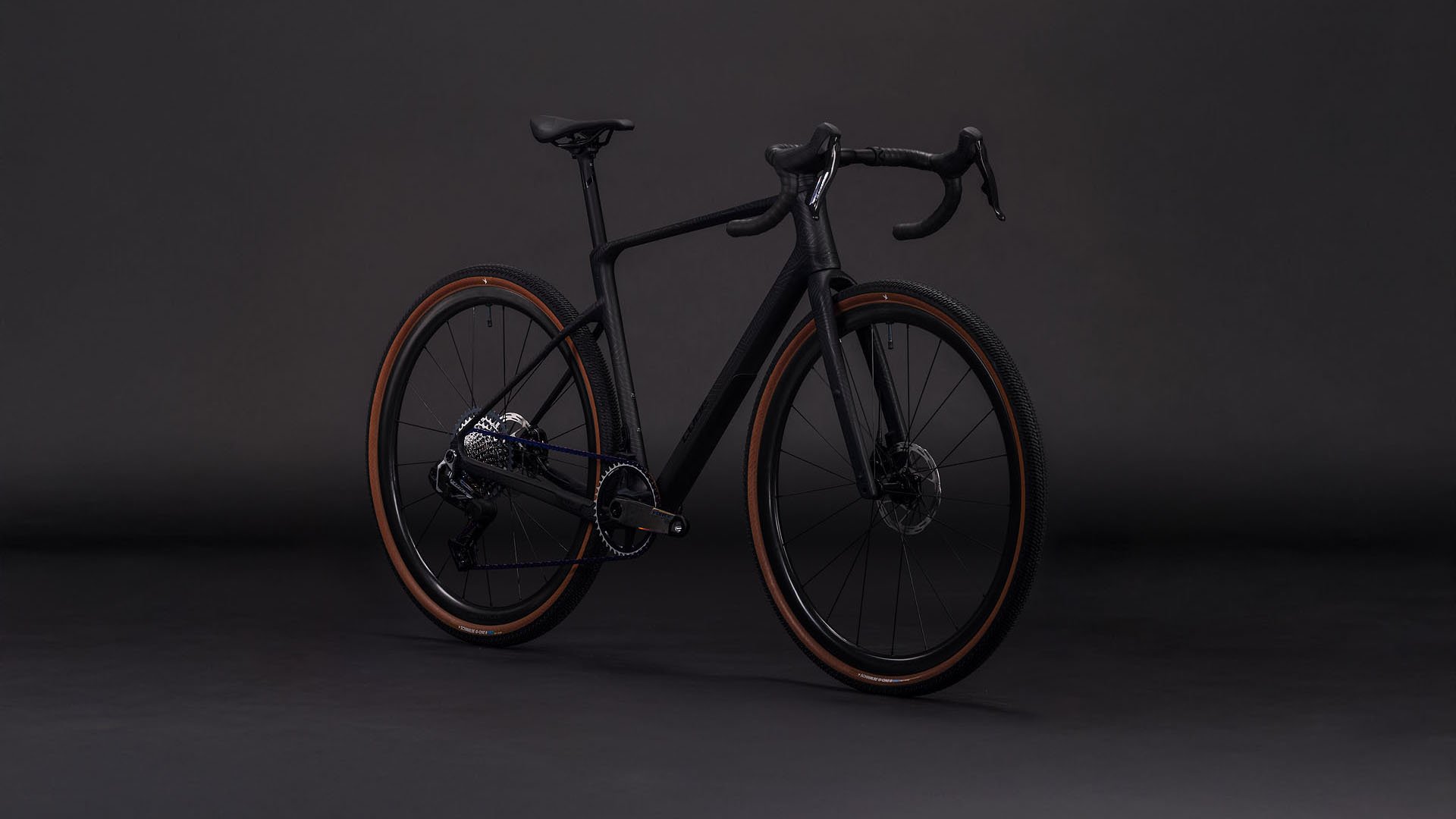

NUROAD C:62
EXC

SRP* 42490 NOK

ArtNo. 130350

carbon´n´crisscross

Comparison

LIGHTWEIGHT
TOUGHNESS

The Nuroad C:62 frame takes everything we know about carbon frames and repackages it in a format that's perfect for gravel racing. There's ample frame clearance for tyres up to 50mm, so you can easily change tyres to suit your needs. An integrated seat clamp, semi-integrated cable routing and one-piece carbon cockpit complement the frame's elegant, organic appearance, and the C:62® carbon fork has two carrier mounting positions. And the overall weight for all this? Just 1,150g for a mid-sized frame. So it's tough, but also extremely light. The ideal basis for a new approach to gravel racing.

Frame Material

C:62®

Tire clearance

50mm

Highlights

You'll notice the striking carbon'n'crisscross colour scheme first, blending the precision of raw carbon with a distinctive geometric pattern. But it's the performance that'll really win you over. Because this is a C:62® carbon gravel race bike that means business: fast, light and equipped to win.

If it's gravel with pace that you crave, the Nuroad C:62 EXC speaks your language. The elegant C:62® carbon frame and fork are light and responsive, as you'd expect, while the one-piece carbon cockpit continues the weight-saving theme without sacrificing performance, so you can put your energy into forward propulsion. Speaking of which, a Sram Force crank with power meter gets your drive to the Force AXS 1x13 gears, putting you in complete control. And Newmen Advanced G.34 wheels shod with fast-rolling Schwalbe 45mm G-One R Pro tyres are brought to a stop with Sram Force hydraulic disc brakes. Because everyone knows that slowing down quicker allows you to move forward faster...

Frame

frame

C:62® Advanced Twin Mold Technology, Internal Cable Routing, Integrated Seat Post Clamp, Flat Mount Disc, Fender/Rack & Kickstand Option, 12x142mm, UDH™

Not all carbon is created equal. With our C:62® carbon we increased the high modulus fibre content, then we reinforced the resulting material with nanoparticles incorporated into the bonding resin. Which is all just a fancy way of saying it's extremely strong, light and durable.

Adventure sometimes demands different kit. That's where our low rider rack mounts come in. Designed to accept an optional fork rack, they're a great way to carry up to 10kg of additional weight for extended tours. Not only that but carrying some of your luggage over the front wheel helps improve weight distribution and handling. Win, win.

For gravel epics – or races – into the back country and beyond, our Gravel Endurance Geometry is designed with you in mind. With a ride position optimised for long days in the saddle and frame angles and dimensions geared towards the perfect balance of agility and stability, it's all you need for off-road adventure.

With our Advanced Twin Mold process we use two precisely manufactured forms for our C:62®, C:68® and C:68X® carbon frames. The first form is to ensure an accurate layup. The second, inner form keeps every individual fibre precisely where it needs to be while the frame cures. The result is a significantly lighter, stronger frame, with fibre density tailored to anticipated loadings at specific points.

size

XS, S, M, L, XL

Rigid fork

CUBE C:62® Technology, 1 1/8" - 1 1/2" Tapered, Integrated Cable Routing, Flat Mount Disc, Fender & Lowrider Mounts, Internal Light Cable Option, 12x100mm

Drivetrain & brakes

shift/ brake levers

Sram Force AXS E1

brake system

SRAM Force AXS E1, Hydr. Disc Brake, Flat Mount (160/160)

rear derailleur

Sram Force XPLR AXS E1, 13-Speed

bottom bracket

Sram DUB Road Wide, Pressfit

crankset

Sram Force XPLR E1 Wide, Powermeter Spindle, Dub, 42T

cassette

Sram XPLR XG-1351, 10-46T

chain

Sram Force E1

Cockpit

headset

ACROS, Top Integrated 1 1/2" w/ Integrated Cable Routing, Bottom Integrated 1 1/4"

integrated bar/ stem

ICR Cockpit System, Integrated Cable Routing, Aero Spacer System, Garmin Mount Interface

handlebar tape

ACID Bartape CC 3.0

Wheels

wheelset

Newmen Advanced G.34, 21/21 Spokes, 12x100mm/12x142mm, Tubeless Ready

tyres

Schwalbe G-One R Pro, TLR, 45-622

Finishing kit

saddle

ACID Nuance Pro

seat post

Newmen Advanced, Carbon, 27.2mm

extras

ACID Pack Pro 0,7 Top Tube Bag

Product information

colour

carbon´n´crisscross

weight

8,2 kg

Art. No

130350

SRP*

42490 NOK

*Suggested retail price

Due to unforeseeable supply chain issues, the bike may be delivered with modifications.

More Information

Bike category of use: 2

You can find more information about Bike Classification at the following link.

More Information

100
kg

Maximum rider weight

The rider weight refers to the weight of the rider including clothing and any equipment worn on the body.

Please see the table for information on the distribution of weight across the system in conjunction with compatible accessories (luggage carriers, bike trailers, etc.).

System weight table

Geometry

	XS	S	M	L	XL
Seat tube	430	460	490	510	540
Top Tube Horizontal	522	537	560	575	592
Seat angle	75.5°	74.7°	73.9°	73°	73°
Head tube angle	69°	70°	71.5°	72°	72.5°
Chainstays	440	440	440	442	442
Head tube	102	124	155	174	197
Wheelbase	1043	1044	1046	1048	1060
BB-Height to Hub	70	70	70	70	70
Protrusion height - 80mm	743	771	805	824	851
Reach	388	388	393	392	402
Stack	520	544	579	599	623

Ergonomics

	XS	S	M	L	XL
Stem length	90	90	100	100	110
Angle stem	-6°	-6°	-6°	-6°	-6°
Handlebar width	400	400	400	420	420
Crank length	165	165	170	170	172.5
Length seat post	350	350	400	400	400
Diameter seatpost	27.2	27.2	27.2	27.2	27.2
Diameter tire maximum	728	728	728	728	728
Width tire maximum	50	50	50	50	50
