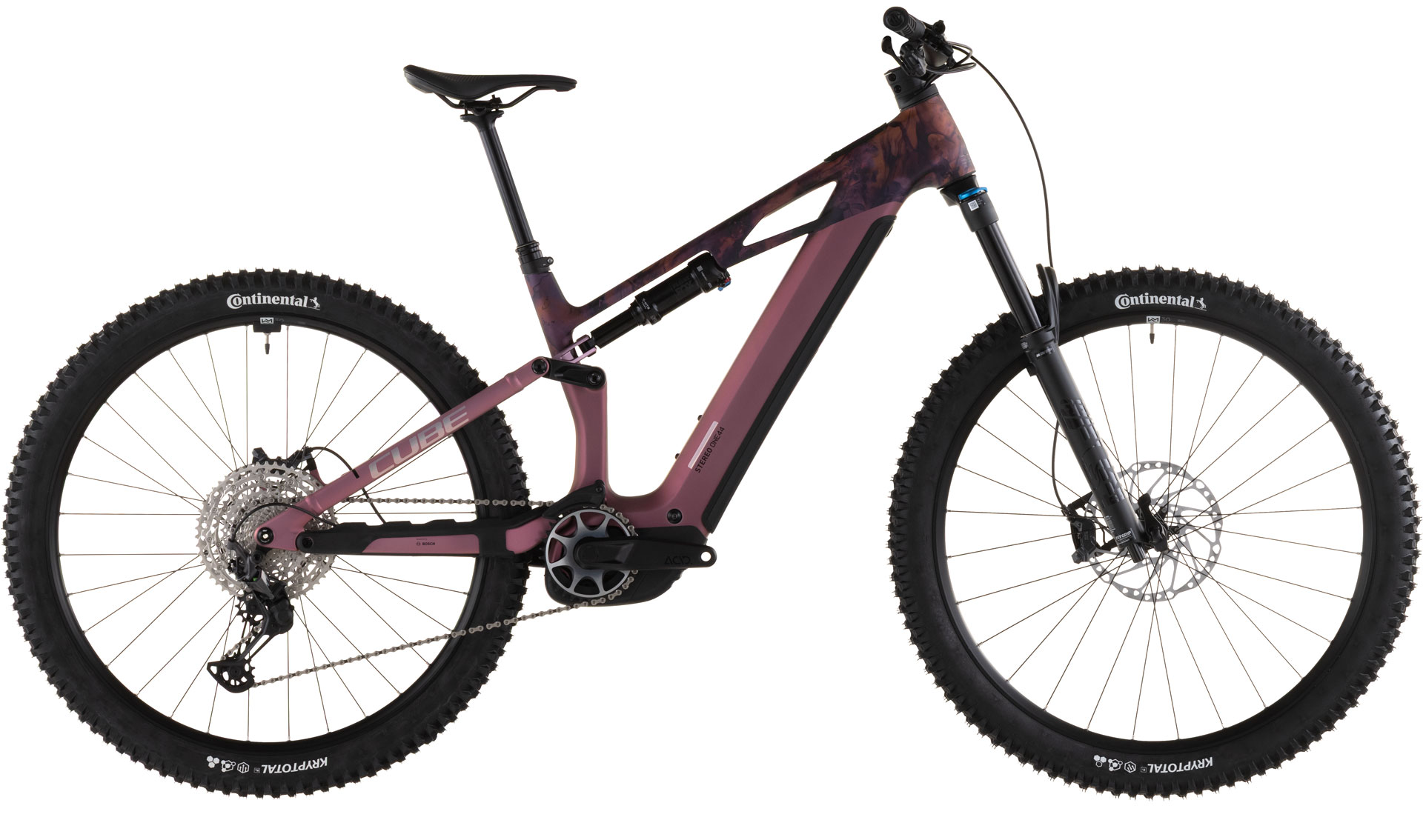

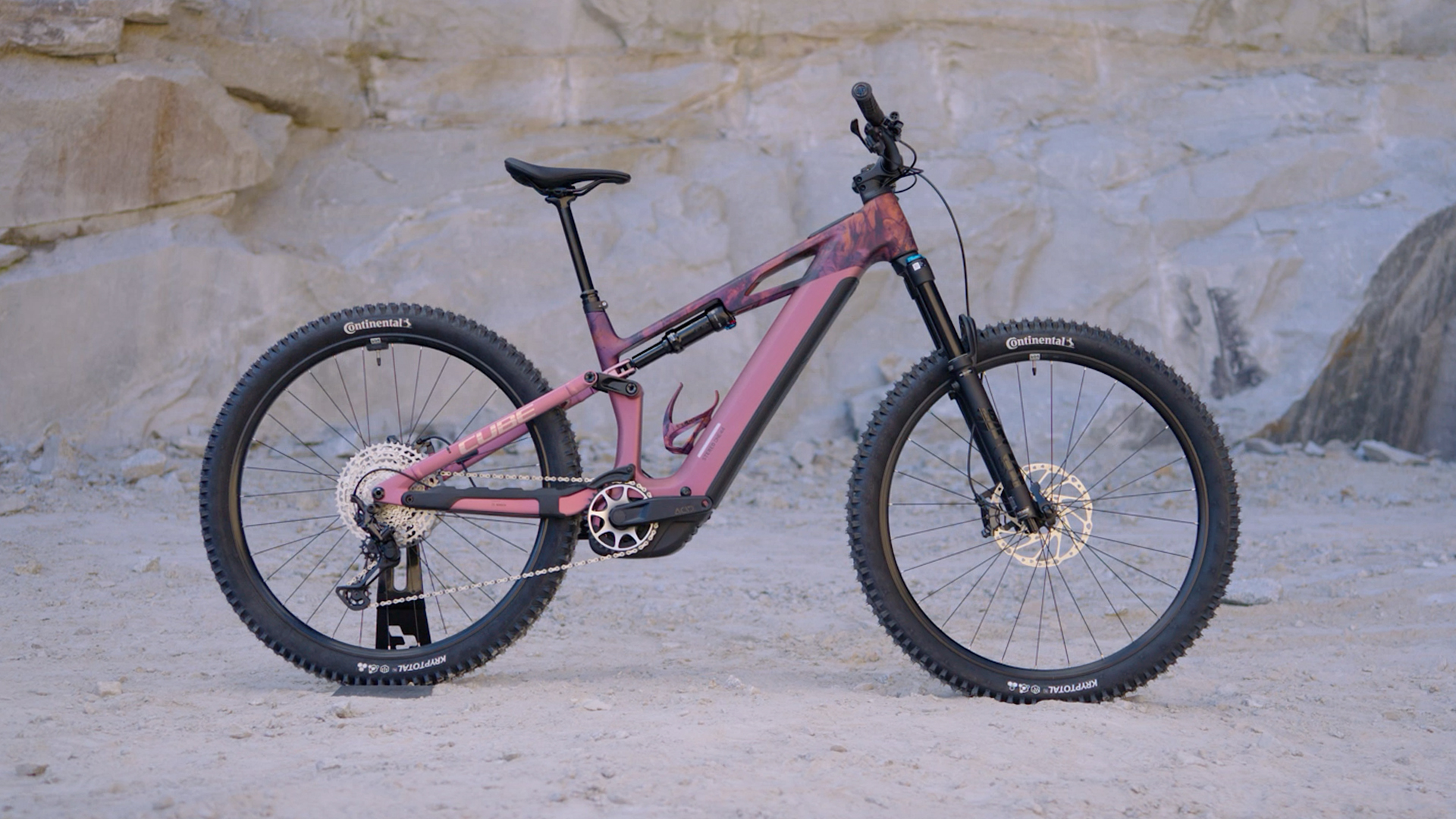

STEREO HYBRID ONE44 HPC
SLX 800

SRP* 62690 NOK

ArtNo. 102520

shiftblush´n´art

Comparison

TRAILS,
YOUR WAY

A great bike is all about the detail, and the Stereo Hybrid ONE44 HPC's frame is chock-full of clever details. You'll notice the Internal Cable Routing because it so neatly complements the High Performance Carbon main triangle's clean lines, while the angle-adjustable headset means you can tailor the handling to your specific requirements. A Direct Mount chain guard keeps the gears on the straight and narrow, and the neatly integrated Bosch top tube controller plus Purion 400 display show you what's going on with the powerful Bosch CX drive and 800Wh PowerTube battery at a glance. With a 150mm fork and 140mm of rear-wheel travel, it's ready to take on the toughest of trails. The UDH dropout means it's future-proof, too. And, with Size Split, there's a wide range of sizes to suit most riders.

Frame Material

High Performance Carbon

Battery

800Wh

Sizes

Size Split

Highlights

We can't deny it, it's the unique – and stunning – shiftblush'n'art paint that you'll probably notice first on the Stereo Hybrid ONE44 HPC SLX 800. But can we also point out the top-notch components, powerful Bosch motor and clever CUBE carbon frame tech? This isn't just a great looker...

You know you're on a great trail bike when it just gets out of the way and lets you enjoy the ride. It's the reason that, for the Stereo Hybrid ONE44 HPC SLX 800, we began with a 150mm Fox 36 Float Rhythm fork and matching Float Performance shock. Combined with a Newmen Performance 30 wheelset and Continental Kryptotal 2.4in tyres, it's the closest we can get to a magic carpet ride. Bosch's CX motor and an 800Wh battery deliver up to 100Nm of torque to the trail via Shimano's slick-shifting, legendarily reliable XT 1x12 gears, while the Kiox 400C display shows you what's going on. And strong, progressive Shimano XT 4-piston hydraulic disc brakes with 203mm rotors bring you safely to a stop, on demand. With a remote dropper post included in the mix, you simply need to add your spirit of adventure... and ride.

Frame

frame

C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing

The Fully Integrated Battery system tucks the power of Bosch's battery out of sight, safely inside the confines of your bike's downtube. Hidden beneath a splash and dust-proof cover and secured with a lock to prevent theft, it allows us to design beautiful e-bike frames that are as brilliantly functional as they are good to look at.

Gear and brake cables need a way to get from handlebar controls to frame – but what if there was no need for holes near the head tube? We came up with a design that takes cables into the frame via the headset, maintaining full internal cable routing but making it even neater and less obtrusive.

In many ways the battery is the heart of an e-bike. That's why, with our Modular Battery System, we've made a setup that's easy to use. You can charge the battery on or off the bike, and we've made room for even high capacity batteries. You'll wonder how you ever managed without it.

When you're harnessing gravity, the trail is challenging and every second counts, the geometry of your CUBE is a critical component. That's why our adjustable headset allows you to tweak head angle, so you can set your bike up just the way you like it. A little slacker for more stability, or a little steeper for better agility. The choice is yours...

Agile Trail Geometry is a development of our popular and well received Agile Ride Geometry, with a focus on riders who enjoy pushing their limits on the trails. By lowering standover height and allowing more room for the rider to move around over the bike, we've created a setup that rewards adventurous line choices. Because, after all, it's all about having fun.

HPC – high performance carbon – enables us to build lighter, stronger and stiffer frames out of this incredibly versatile material. Using a combination of careful frame design and variable lay-up thickness, we're able to fine-tune the performance of each frame to precisely meet our requirements for weight, stiffness, strength and durability.

X-Connect is the simple way to attach a compatible ACID light to your CUBE bike. With a connector built into the headset and the wiring hidden in the frame, all that's left to do is attach the light, plug it in... and off you go. See and be seen, the easy way.

size

Size Split: 27.5: S // 29: M, L, XL

Suspension

Suspension fork

Fox 36 Float Rhythm GRIP, Tapered, 15x110mm, E-Bike Optimized, 150mm

shock

Fox Float Performance, 230x60mm (27.5: 210x55mm), Adjustable LSR w/ 2-Pos. Lever

shock hardware

Front: 30x8mm, Rear: DU-Bushing 12.7mm

E-bike system

drive unit

Bosch Drive Unit Performance Line CX max. 100Nm (BDU38)

Remote

Bosch Mini Remote

battery

Bosch PowerTube 800

display

Bosch Kiox 400C

charger

Bosch 4A

Drivetrain & brakes

brake system

Shimano XT BR-M8220, Hydr. Disc Brake (203/203)

rear derailleur

Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed

shifters

Shimano XT SL-M8100-IR, 12-Speed

crankset

ACID MTB Hybrid Pro, 27.5: 36T // 29: 34T

cassette

Shimano Deore CS-M6100, 10-51T

chain

KMC e12

chain guide

Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate

Cockpit

headset

ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment, X-Connect Interface

Stem

CUBE Performance Stem E-MTB 35, FPI-Link

handlebar

CUBE Rise Trail Bar 35

grips

ACID Disrupt

Wheels

wheelset

Newmen Performance 30 base/strong, 28/32 Spokes, 15x110mm / 12x148mm, Tubeless Ready

front tyre

Conti Kryptotal Front, Enduro Soft, Tubeless Ready, 2.4

rear tyre

Conti Kryptotal Rear, Downhill Soft, Tubeless Ready, 2.4

Finishing kit

saddle

ACID Venec EMTB Trail 140

seat post

CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm

pedals

ACID PP MTB

Product information

colour

shiftblush´n´art

weight

24,7 kg

Art. No

102520

SRP*

62690 NOK

*Suggested retail price

Due to unforeseeable supply chain issues, the bike may be delivered with modifications.

More Information

Bike category of use: 4

You can find more information about Bike Classification at the following link.

More Information

125
kg

Maximum rider weight

The rider weight refers to the weight of the rider including clothing and any equipment worn on the body.

Please see the table for information on the distribution of weight across the system in conjunction with compatible accessories (luggage carriers, bike trailers, etc.).

System weight table

Geometry

Slack/Moderate	S	M	L	XL
Seat tube	370	405	420	480
Top Tube Horizontal	566 / 568	596 / 598	626 / 627	669 / 671
Seat angle	76.2° / 76°	76.2° / 76°	76.2° / 76°	76.2° / 76°
Head tube angle	64.8° / 64.4°	64.8° / 65.4°	64.8° / 65.4°	64.8° / 65.4°
Chainstays	450	457	457	457
Head tube	128	106	120	148
Wheelbase	1204 / 1196	1233 / 1226	1264 / 1256	1311 / 1303
BB-Height to Hub	12 / 11	30	30	30
Protrusion height - 80mm	733	748	748	748
Reach	427 / 425	452 / 450	477 / 475	512 / 510
Stack	604 / 606	620 / 622	632 / 634	658 / 660

Ergonomics

	S	M	L	XL
Stem length	50	50	50	50
Angle stem	12°	12°	12°	12°
Handlebar width	780	780	780	780
Crank length	165	165	165	165
Length seat post	403	462	505	505
Diameter seatpost	31.6	31.6	31.6	31.6
Max. insertion depth seat post	220	230	250	310
Stroke seatpost	120	150	170	170
Diameter tire maximum	721	759	759	759
Width tire maximum	67	67	67	67
Rear suspension travel	140	140	140	140
