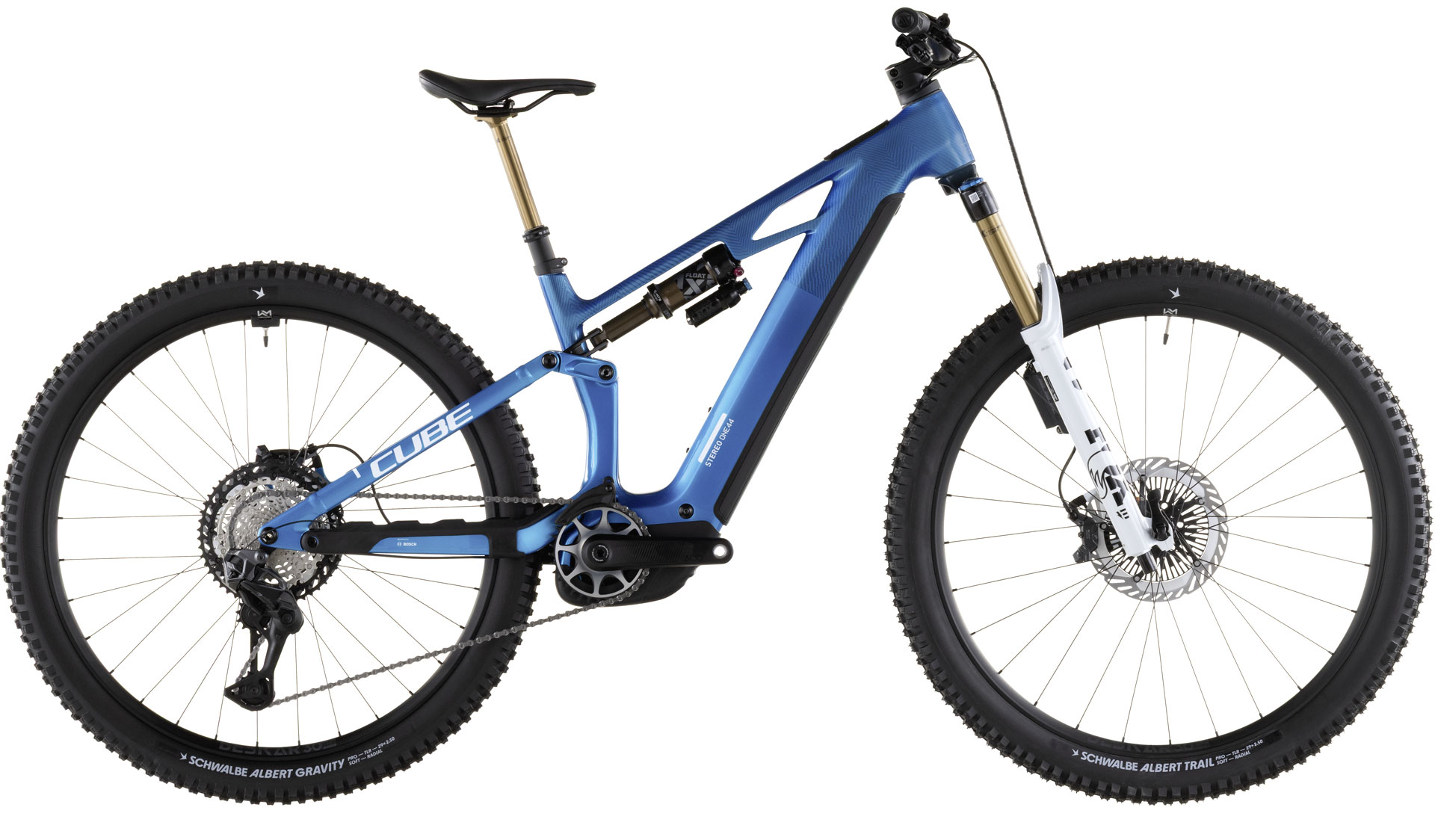

STEREO HYBRID ONE44 HPC
AT 800

SRP* 87990 NOK

ArtNo. 102810

actionteam

Comparison

TRAILS,
YOUR WAY

A great bike is all about the detail, and the Stereo Hybrid ONE44 HPC's frame is chock-full of clever details. You'll notice the Internal Cable Routing because it so neatly complements the High Performance Carbon main triangle's clean lines, while the angle-adjustable headset means you can tailor the handling to your specific requirements. A Direct Mount chain guard keeps the gears on the straight and narrow, and the neatly integrated Bosch top tube controller plus Purion 400 display show you what's going on with the powerful Bosch CX drive and 800Wh PowerTube battery at a glance. With a 150mm fork and 140mm of rear-wheel travel, it's ready to take on the toughest of trails. The UDH dropout means it's future-proof, too. And, with Size Split, there's a wide range of sizes to suit most riders.

Frame Material

High Performance Carbon

Battery

800Wh

Sizes

Size Split

Highlights

Our Actionteam bikes are a bit special, and the Stereo Hybrid ONE44 HPC AT 800 – wearing the distinctive Actionteam livery – is no exception. Built with trail-devouring performance in mind, its carbon frame, Bosch drive system and top-notch components help keep you on top of your game.

The Stereo Hybrid ONE44 HPC AT 800 is all about sweating the details to get the best from your trail riding. The 4-piston Shimano XT hydraulic brake calipers with Bosch ABS Pro harness the incredible grip of Schwalbe's 2.5in Albert tyres to deliver assured speed control, no matter the conditions. Shimano's electronic XT Di2 1x12 gears transfer the combined power of your pedalling and the Bosch CX motor – which can deliver up to 100Nm of extra torque – to the Newmen Beskar 30 wheelset via an ACID carbon crank, backed up by an 800Wh battery for the best possible range and a Kiox 400C display so you know what's what. And with a Fox 36 Float Factory fork, Float X Factory rear shock and remote dropper post, the only component missing is you.

Frame

frame

C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing

The Fully Integrated Battery system tucks the power of Bosch's battery out of sight, safely inside the confines of your bike's downtube. Hidden beneath a splash and dust-proof cover and secured with a lock to prevent theft, it allows us to design beautiful e-bike frames that are as brilliantly functional as they are good to look at.

Gear and brake cables need a way to get from handlebar controls to frame – but what if there was no need for holes near the head tube? We came up with a design that takes cables into the frame via the headset, maintaining full internal cable routing but making it even neater and less obtrusive.

In many ways the battery is the heart of an e-bike. That's why, with our Modular Battery System, we've made a setup that's easy to use. You can charge the battery on or off the bike, and we've made room for even high capacity batteries. You'll wonder how you ever managed without it.

When you're harnessing gravity, the trail is challenging and every second counts, the geometry of your CUBE is a critical component. That's why our adjustable headset allows you to tweak head angle, so you can set your bike up just the way you like it. A little slacker for more stability, or a little steeper for better agility. The choice is yours...

Agile Trail Geometry is a development of our popular and well received Agile Ride Geometry, with a focus on riders who enjoy pushing their limits on the trails. By lowering standover height and allowing more room for the rider to move around over the bike, we've created a setup that rewards adventurous line choices. Because, after all, it's all about having fun.

HPC – high performance carbon – enables us to build lighter, stronger and stiffer frames out of this incredibly versatile material. Using a combination of careful frame design and variable lay-up thickness, we're able to fine-tune the performance of each frame to precisely meet our requirements for weight, stiffness, strength and durability.

X-Connect is the simple way to attach a compatible ACID light to your CUBE bike. With a connector built into the headset and the wiring hidden in the frame, all that's left to do is attach the light, plug it in... and off you go. See and be seen, the easy way.

size

Size Split: 27.5: S // 29: M, L, XL

Suspension

Suspension fork

Fox 36 Float Factory GRIPX, Tapered, 15x110mm, E-Bike Optimized, 150mm (S: 140mm)

shock

Fox Float X Factory, 230x60mm (27.5: 210x55mm), Adjustable LSC/LSR w/ 2-Pos. Lever

shock hardware

Front: 30x8mm, Rear: DU-Bushing 12.7mm

E-bike system

drive unit

Bosch Drive Unit Performance Line CX max. 100Nm (BDU38)

Remote

Bosch Mini Remote

battery

Bosch PowerTube 800

display

Bosch Kiox 400C

charger

Bosch 4A

ABS technology

Bosch ABS Pro

Drivetrain & brakes

brake system

Shimano XT BR-M8220, Hydr. Disc Brake w/ Front ABS (203/203)

rear derailleur

Shimano XT Di2 RD-M8260-SGS, 12-Speed, Electronic Shifting System

shifters

Shimano XT Di2 SW-M8250-IR, Direct Attach

crankset

ACID MTB Hybrid Carbon, 27.5: 36T // 29: 34T

cassette

Shimano XT CS-M8100, 10-51T

chain

Shimano CN-M8100

chain guide

Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate

Cockpit

headset

ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment, X-Connect Interface

Stem

CUBE Performance Stem E-MTB 35, FPI-Link

handlebar

Race Face ERA 35

grips

ACID Disrupt

Wheels

wheelset

Newmen Beskar 30 base/strong, 28/32 Spokes, 15x110mm/12x148mm, Tubeless Ready

front tyre

Schwalbe Albert Trail Pro, Addix Soft, Kevlar, 2.5

rear tyre

Schwalbe Albert Gravity Pro, Addix Soft, Kevlar, 2.5

Finishing kit

saddle

ACID Venec EMTB Trail 140

seat post

Fox Transfer Factory 31.6mm, Kashima Coated

pedals

ACID PP MTB

Product information

colour

actionteam

weight

24,2 kg

Art. No

102810

SRP*

87990 NOK

*Suggested retail price

Due to unforeseeable supply chain issues, the bike may be delivered with modifications.

More Information

Bike category of use: 4

You can find more information about Bike Classification at the following link.

More Information

125
kg

Maximum rider weight

The rider weight refers to the weight of the rider including clothing and any equipment worn on the body.

Please see the table for information on the distribution of weight across the system in conjunction with compatible accessories (luggage carriers, bike trailers, etc.).

System weight table

Geometry

Slack/Moderate	S	M	L	XL
Seat tube	370	405	420	480
Top Tube Horizontal	566 / 568	596 / 598	626 / 627	669 / 671
Seat angle	76.2° / 76°	76.2° / 76°	76.2° / 76°	76.2° / 76°
Head tube angle	64.8° / 64.4°	64.8° / 65.4°	64.8° / 65.4°	64.8° / 65.4°
Chainstays	450	457	457	457
Head tube	128	106	120	148
Wheelbase	1204 / 1196	1233 / 1226	1264 / 1256	1311 / 1303
BB-Height to Hub	12 / 11	30	30	30
Protrusion height - 80mm	733	748	748	748
Reach	427 / 425	452 / 450	477 / 475	512 / 510
Stack	604 / 606	620 / 622	632 / 634	658 / 660

Ergonomics

	S	M	L	XL
Stem length	50	50	50	50
Angle stem	12°	12°	12°	12°
Handlebar width	780	780	780	780
Crank length	165	165	165	165
Length seat post	411	411	476	541
Diameter seatpost	31.6	31.6	31.6	31.6
Max. insertion depth seat post	220	230	250	310
Stroke seatpost	150	150	180	210
Diameter tire maximum	721	759	759	759
Width tire maximum	67	67	67	67
Rear suspension travel	140	140	140	140
