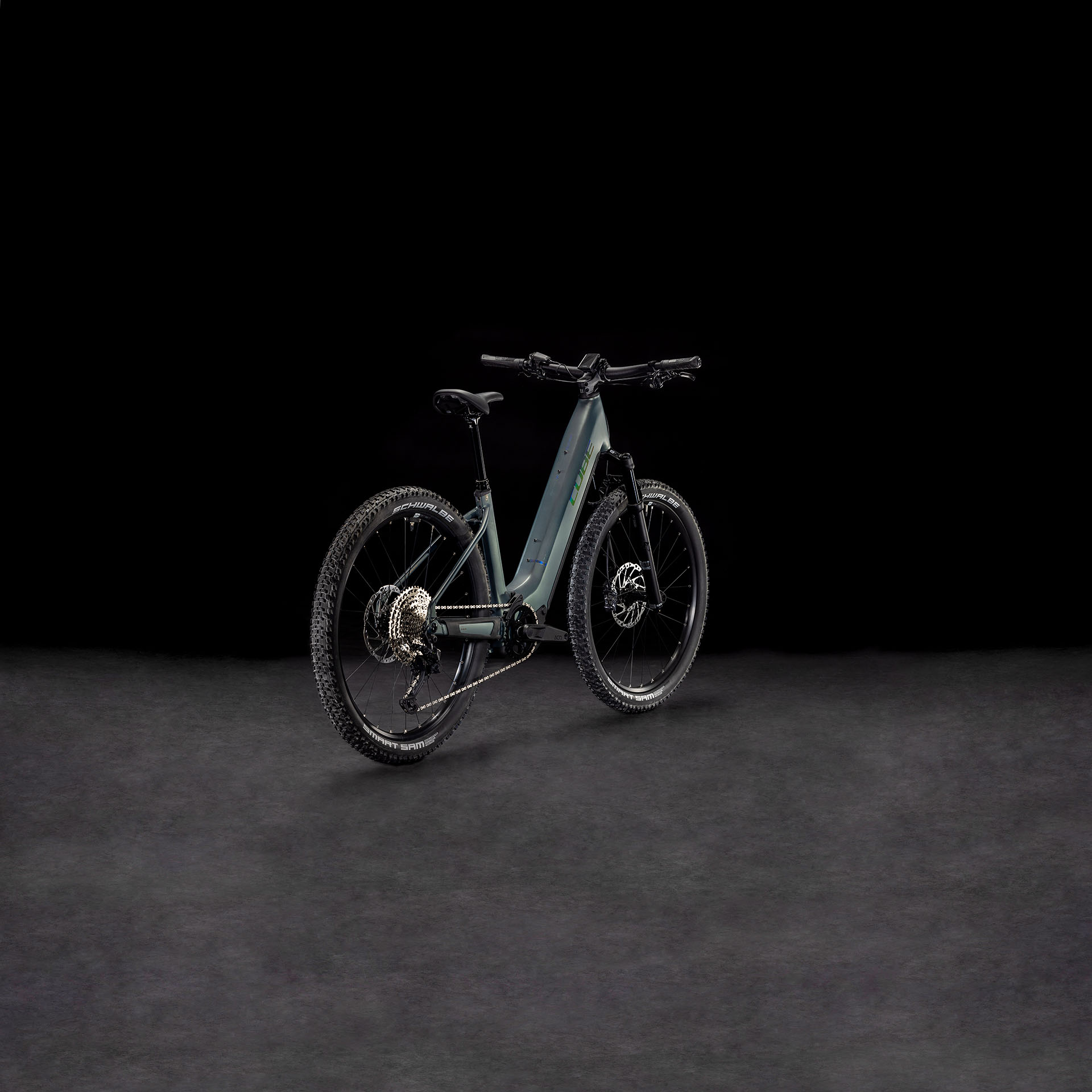

REACTION HYBRID
SLX 800
SRP* 3499 GBP
ADVENTURE
ON!
We call this frame Easy Entry because that's exactly what it does, but there's more to the Reaction Hybrid than just an elegantly practical design. With the 800 Wh PowerTube battery neatly concealed and the Bosch CX drive housed securely, its svelte lines disguise lots of clever features. It's PowerMore-ready, making it easy to add up to 250 Wh of extra battery capacity. The integrated seat clamp and cable routing complement the clean aesthetic, whilst a UDH gear hanger makes it as future-proof as possible. There's a built-in chainguide mount too, and it's also ready to accept ACID mudguards. And there are sizes to cater for most riders. We've thought of everything, so you can just ride.
Frame Material
Battery
Rám
rám
Aluminum Superlite, Gravity Casting Technology, Agile Ride Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing, Kickstand/Fender/Carrier Mounting Points, Integrated Seatclamp
velikosti
Easy Entry: 27.5: S M L XL
Suspension
Odpružená vidlice
Fox 34 Float AWL, 2-Position Sweep-Adjust RAIL Damper, Tapered, 15x110mm, E-Bike Optimized, 100mm
E-bike system
motor
Bosch Performance Line CX 85Nm (BDU38) ab Juli 2025 bis zu 100 Nm/ from July 2025 up to 100Nm
Remote
Bosch LED Remote
baterie
Bosch PowerTube 800
displej
Bosch Kiox 300
nabíječka
Bosch 4A
Drivetrain & brakes
brzdy
Shimano XT BR-M8120, Hydr. Disc Brake (203/203)
přehazovačka
Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
řazení
Shimano XT SL-M8100-IR, 12-Speed
kliky
ACID MTB Hybrid Pro, 38T
kazeta
Shimano Deore CS-M6100, 10-51T
vodítko
Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate
Cockpit
hlavové složení
ACROS AZF-1034, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), X-Connect Interface
Představec
CUBE Performance Stem E-MTB 35, FPI-Link
řídítka
CUBE Rise Trail Bar 35
gripy
ACID Hybrid Perform
Wheels
kola
Newmen Performance 30, 28/28 Spokes (Light/Base), 15x110mm / 12x148mm, Tubeless Ready
pláště
Schwalbe Smart Sam, Performance, Kevlar, 2.6
Finishing kit
sedlo
ACID Sequence Pro 160
sedlovka
CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
pedály
ACID PP MTB
Product information
barva
sagebrushgreen´n´prism
hmotnost
25,2 kg
Art. No
808602
SRP*
3499 GBP
*Suggested retail price
Because of ongoing problems in the delivery chain, the bike can be delivered with modifications.
More Information
Bike category of use: 2
You can find more information about Bike Classification at the following link.
120
kg
Maximum rider weight
The rider weight refers to the weight of the rider including clothing and any equipment worn on the body.
Please see the table for information on the distribution of weight across the system in conjunction with compatible accessories (luggage carriers, bike trailers, etc.).
Geometry
| S | M | L | XL | |
| Seat tube | 370 | 405 | 450 | 495 |
| Top Tube Horizontal | 607 | 607 | 627 | 647 |
| Seat angle | 74° | 74° | 74° | 74° |
| Head tube angle | 68° | 68° | 68° | 68° |
| Chainstays | 456 | 456 | 456 | 456 |
| Head tube | 169 | 169 | 179 | 189 |
| Wheelbase | 1166 | 1166 | 1188 | 1209 |
| BB-Height to Hub | 46 | 46 | 46 | 46 |
| Reach | 419 | 419 | 437 | 454 |
| Stack | 655 | 655 | 664 | 674 |
Ergonomics
| S | M | L | XL | |
| Stem length | 40 | 60 | 60 | 60 |
| Angle stem | 12° | 12° | 12° | 12° |
| Handlebar width | 740 | 740 | 740 | 740 |
| Crank length | 165 | 165 | 165 | 165 |
| Length seat post | 361 | 361 | 425 | 425 |
| Diameter seatpost | 31.6 | 31.6 | 31.6 | 31.6 |
| Stroke seatpost | 100 | 100 | 130 | 130 |
| Diameter tire maximum | 722 | 722 | 722 | 722 |
| Width tire maximum | 67 | 67 | 67 | 67 |
| Step-through width | 96 | 96 | 96 | 96 |
All values are given in millimetres or degrees.
