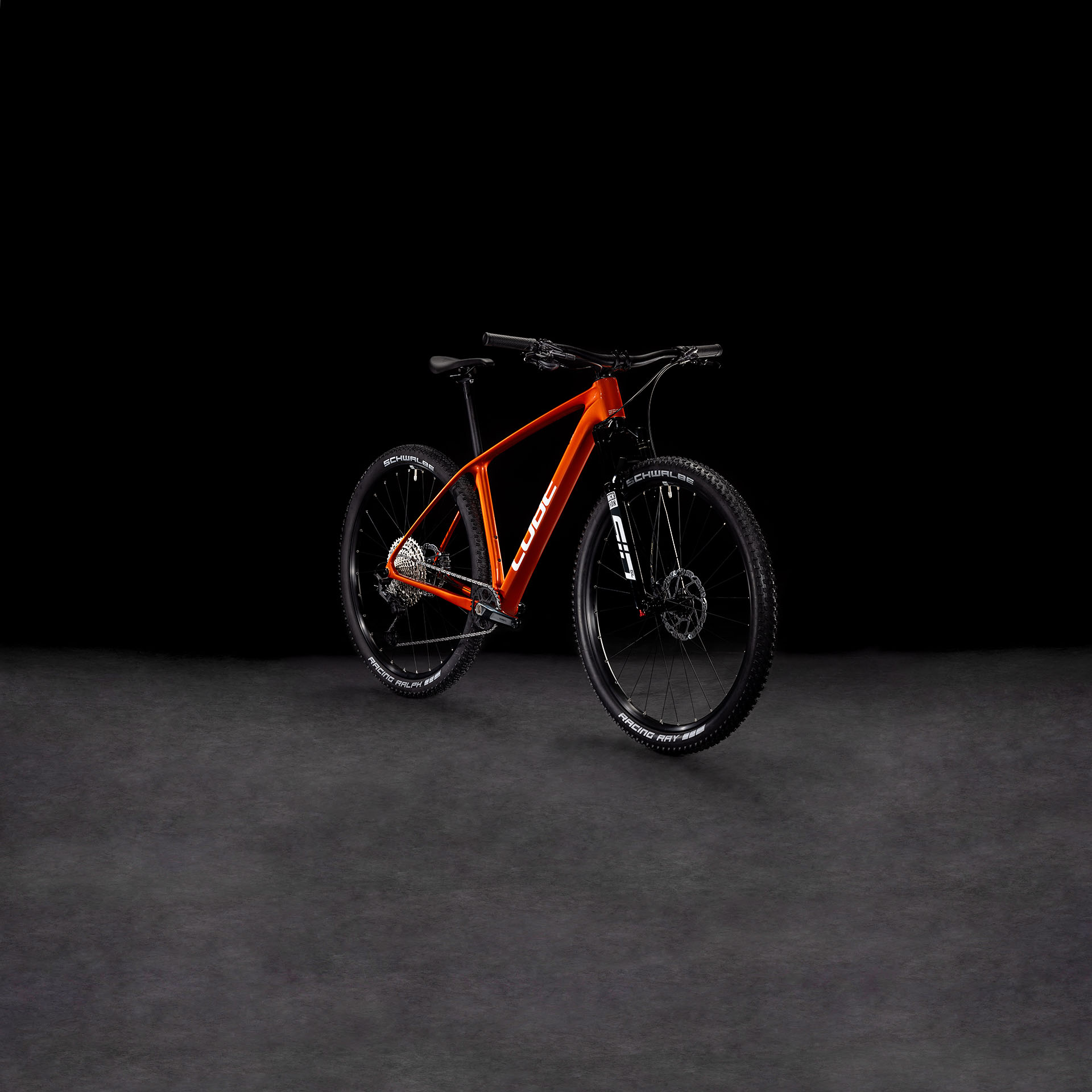

REACTION C:62
PRO

SRP* 1781 EUR

ArtNo. 845210

electricorange´n´spice

Comparison

CROSS-COUNTRY
EXCELLENCE

There's a good reason for the Reaction C:62's beautifully organic lines and slender stays: it makes for an exceptionally fast, light frame. Our premium C:62® carbon and Advanced Twin Mold manufacturing is just the start. There's an integrated seat clamp, for secure fastening and the neatest possible appearance. Semi-integrated cable routing complements the frame's clean aesthetic and reduces the need for maintenance. UDH means it's future-proof, while Agile Ride Geometry does exactly what you'd expect, delivering safe but responsive handling. And, with a wide range of sizes from S to XXL, there's one to suit practically any rider.

Frame Material

C:62®

Input from pro racers is vital to the success of our race-developed bikes. The Reaction C:62 Pro's low weight, agile geometry and race-proven pace are just the kind of thing you'd expect. The comfort of its beautifully designed carbon frame probably isn't – but that's another reason why it's so quick.

REACTION C:62

Not all carbon is created equal. With our C:62® carbon we increased the high modulus fibre content, then we reinforced the resulting material with nanoparticles incorporated into the bonding resin. Which is all just a fancy way of saying it's extremely strong, light and durable.

Our Integrated Seatpost Clamp is all part of our quest to sweat the details, so that you can reap the rewards. Its minimalist design suits the frame's pared-back aesthetic. And, of course, that's important – because why wouldn't you want your bike to look great? But it also saves a few grammes too. And that matters just as much...

A wider hub makes a stiffer wheel, and a stiffer wheel means better handling. That's the thinking behind the Boost 148 rear hub standard, which allows wider flange spacing for better wheel performance without impacting on shifting accuracy or drivetrain efficiency. Simply put, you can go faster and harder with better handling and stronger wheels.

Cables connect your handlebar controls to vital components like gears and brakes, but there's no need for them to get in your way. With Internal Cable Routing we've reduced clutter and maintenance by running cables through the frame, keeping them out of the way of dust and water contamination – or damage from abrasion – as well as cleaning up your bike's appearance.

For off-road riding you need a bike that responds quickly, but also feels stable and secure. That's where Agile Ride Geometry comes in. Offering an ideal blend of on-demand steering precision, climbing agility and descending stability, it's perfect for every rider who values their time on the trail. If you're a mountain biker, you'll instantly feel at home...

A dropper post is a great accessory for adventurous riding, adding confidence and control on steep descents. Our Dropper Post Ready bikes are all set for this worthwhile upgrade, because they include internal cable routing for the remote lever that controls the seatpost. Once installed, you'll forget it's there... until you need it.

With our Advanced Twin Mold process we use two precisely manufactured forms for our C:62®, C:68® and C:68X® carbon frames. The first form is to ensure an accurate layup. The second, inner form keeps every individual fibre precisely where it needs to be while the frame cures. The result is a significantly lighter, stronger frame, with fibre density tailored to anticipated loadings at specific points.

Frame

frame

C:62® Monocoque Advanced Twin Mold Technology, Boost 12x148mm, Full Internal Cable Routing, Dropper Post ready, UDH™

size

29: S, M, L, XL, XXL

Suspension

Suspension fork

RockShox SID SL Base, Tapered, 15x110mm, 100mm

Drivetrain & brakes

brake system

Shimano XT BR-M8100, Hydr. Disc Brake (160/180)

rear derailleur

Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed

shifters

Shimano XT SL-M8100-IR, Direct Attach

bottom bracket

Shimano BB-MT500PA, 92mm Pressfit

crankset

Shimano FC-MT611, 32T, Boost

cassette

Shimano Deore CS-M6100, 10-51T

chain

Shimano CN-M6100

Cockpit

headset

ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment

Stem

Newmen Evolution 318.4, 31.8mm

handlebar

Newmen Evolution SL 318.10, 760mm

grips

ACID React Pro

Wheels

wheelset

Newmen Performance 30 light/light, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready CUBE Engineered By Newmen, 15mm, Boost, Centerlock

front tyre

Schwalbe Racing Ray, Addix Performance, Kevlar, 2.25

rear tyre

Schwalbe Racing Ralph, Addix Performance, Kevlar, 2.25

Finishing kit

saddle

ACID Nuance Lite

seat post

Newmen Evolution, 27.2mm

Product information

colour

electricorange´n´spice

weight

10,8 kg

Art. No

845210

SRP*

1781 EUR

*Suggested retail price

Because of ongoing problems in the delivery chain, the bike can be delivered with modifications.

More Information

Bike category of use: 3

You can find more information about Bike Classification at the following link.

More Information

115
kg

Maximum system weight

The system weight describes the maximum permissible total mass. This must not be exceeded under any circumstances.

Please see the table for information on the distribution of weight across the system in conjunction with compatible accessories (luggage carriers, bike trailers, etc.).

System weight table

Geometry

	S	M	L	XL	XXL
Seat tube	370	420	450	510	560
Top Tube Horizontal	578	598	618	638	658
Seat angle	74°	74°	74°	74°	74°
Head tube angle	68.5°	68.5°	68.5°	68.5°	68.5°
Chainstays	426	426	426	426	426
Head tube	97	107	117	127	142
Wheelbase	1088	1109	1130	1151	1173
BB-Height to Hub	65	65	65	65	65
Protrusion height - 80mm	767	801	821	859	866
Reach	405	422	439	456	472
Stack	612	621	630	639	653

Ergonomics

	S	M	L	XL	XXL
Stem length	60	70	70	70	70
Angle stem	6°	6°	6°	6°	6°
Handlebar width	760	760	760	760	760
Crank length	170	175	175	175	175
Length seat post	400	400	430	430	430
Diameter seatpost	27.2	27.2	27.2	27.2	27.2
Diameter tire maximum	749	749	749	749	749
Width tire maximum	60	60	60	60	60

All values are given in millimetres or degrees.

The Reaction C:62 Pro's low weight, sharp handling and surprising comfort give you the edge you need to stay ahead. Keeping the front wheel planted is a smooth, easily adjustable RockShox Sid SL air suspension fork. Newmen's light and strong Performance 30 wheels are shod with grippy Schwalbe Racing Ray and Racing Ralph 2.25in tyres to keep you hooked up to the trail. Shimano's smooth, reliable XT 12-speed components put the right gear within easy reach. And strong, progressive Shimano XT hydraulic disc brakes ensure you're always in complete control.
