NURIDE HYBRID
PERFORMANCE 500 ALLROAD

SRP* 2271 EUR

ArtNo. 810121

swimmingpool´n´black

Comparison

625Wh

EXPAND
YOUR HORIZONS

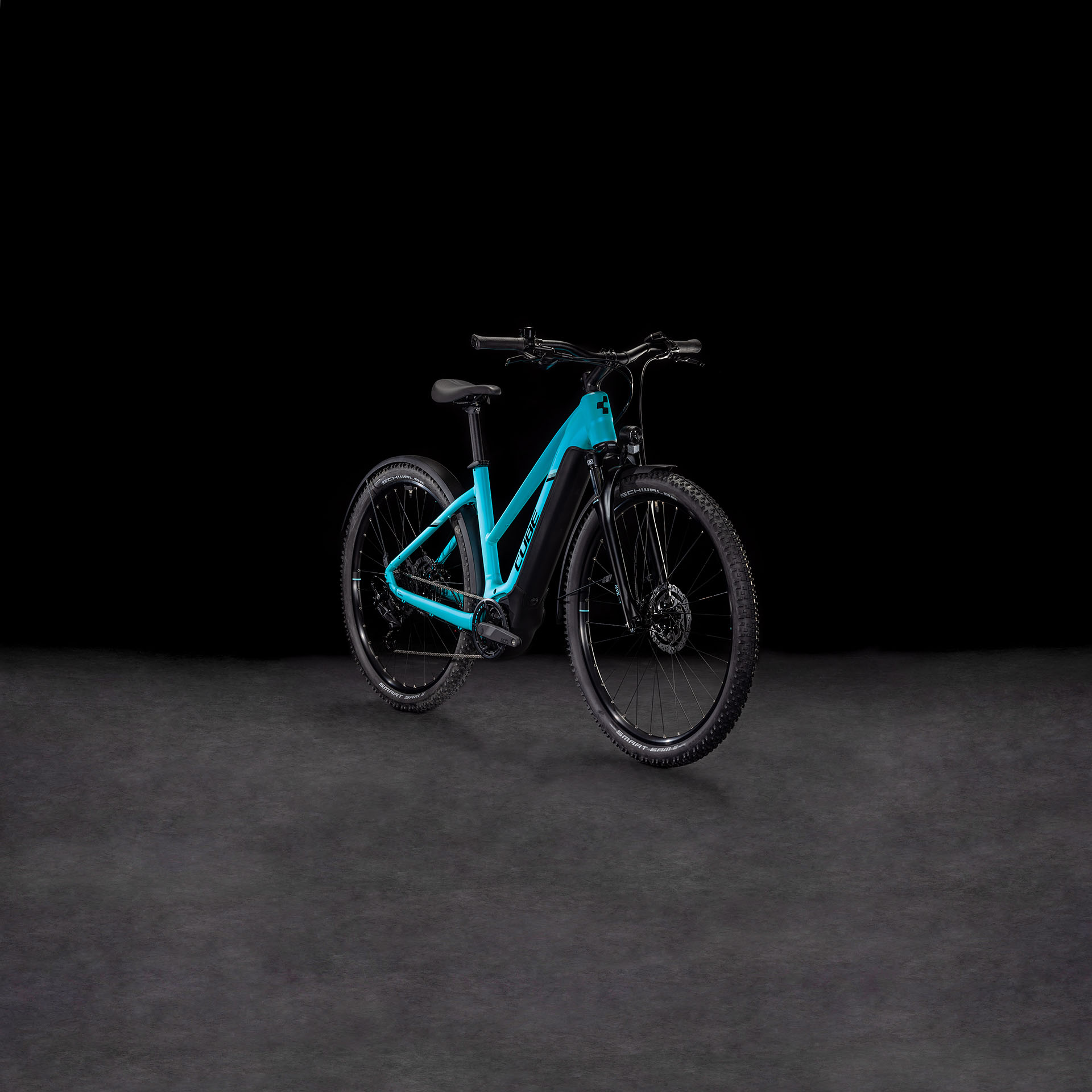

It looks familiar – elegant, even – but there's a lot lurking beneath the Nuride Hybrid Performance's smoothly sculpted Trapeze frame. The powerful Bosch Performance motor – with Bosch smart system and 500Wh PowerTube battery – is neatly integrated into the frame's clean lines and gives you smooth pedal assist when you need it most. A 63mm travel suspension fork helps smooth rough roads, and Efficient Comfort Geometry does exactly what it says. Plus, with the included lights, kickstand and mudguards, you're all set for any journey.

Frame Material

Aluminium Superlite

Battery

500 Wh

Configuration

Allroad

Ride anywhere and take your world with you, with the Nuride Hybrid Performance Allroad. A choice of frame styles and sizes to suit every rider, practical accessories and the power of Bosch's Performance drive with smart system and 500Wh battery: expand your horizons.

NURIDE HYBRID

The Fully Integrated Battery system tucks the power of Bosch's battery out of sight, safely inside the confines of your bike's downtube. Hidden beneath a splash and dust-proof cover and secured with a lock to prevent theft, it allows us to design beautiful e-bike frames that are as brilliantly functional as they are good to look at.

In many ways the battery is the heart of an e-bike. That's why, with our Modular Battery System, we've made a setup that's easy to use. You can charge the battery on or off the bike, and we've made room for even high capacity batteries. You'll wonder how you ever managed without it.

How versatile is a bicycle? When it's a CUBE Allroad, the answer is 'extremely'. Boasting a full complement of accessories including (depending on model) luggage carrier, mudguards, lights and kickstand, we built your Allroad to take on anything you care to throw its way. Weekday commuting, weekend touring and everything in between... our Allroad series has it covered.

With our specially designed Efficient Comfort Geometry, cycling is a simple pleasure. Whether you're popping across town or exploring further afield, taking a ride with the family or with friends, for work or for pleasure, we've created a ride experience that will have you coming back for more.

Gravity Casting moulds liquid aluminium into highly complex frame sections, resulting in extremely strong structures that can better withstand stress. For example, with our Hybrid models we're able to produce a motor mount that's optimised to cope with the loads placed on it in this specialised application, without adding unnecessary weight or sacrificing strength.

CUBE's Aluminium Superlite starts with heat-treated 6061 aluminium, which has the qualities – high fatigue resistance, good stiffness, low weight and excellent strength – that are important for a bicycle frame. Then we make it into double butted tubes, to reduce weight without sacrificing any of its strength. The result? Exceptionally light, strong and tough frames.

Frame

frame

Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Fully Integrated Battery, 1.5 Headtube

size

Trapeze: XS / 46cm, S / 50cm, M / 54cm

Suspension

Suspension fork

SR Suntour NVX30 Coil, 63mm

E-bike system

drive unit

Bosch Drive Unit Performance Generation 3 (75Nm) Cruise (250Watt), Smart System

Remote

Bosch Purion 200 w/ Integrated Display

battery

Bosch PowerTube 500

charger

Bosch 2A

Drivetrain & brakes

brake system

Shimano BR-MT200, Hydr. Disc Brake (180/180)

rear derailleur

Shimano Cues RD-U4000-GS, 9-Speed

shifters

Shimano Cues SL-U4010, Rapidfire-Plus

crankset

ACID Trekking Hybrid, 38T

cassette

Shimano Cues CS-LG300, 11-46T

chain

KMC eGlide

Cockpit

headset

ACROS AZF-1031, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)

Stem

CUBE Performance Stem Pro, 31.8mm

handlebar

CUBE Comfort Trail Bar, 700mm

grips

ACID Hybrid Tour

Wheels

rims

CUBE EX25, 32H, Disc

front hub

Shimano HB-QC300, QR, Centerlock

rear hub

Shimano FH-QC300-HM, QR, Centerlock

tyres

Schwalbe Smart Sam, Active, K-Guard, 54-622

Finishing kit

saddle

ACID Sequence Pro Plus

seat post

CUBE Performance Post, 30.9mm

pedals

ACID PP MTB

front light

ACID Front Light PRO-E 60 X-Connect, 12V, DC

rear light

ACID Mudguard Rear Light PRO-E, 12V, DC

kickstand

ACID FM Pure Kickstand

mudguards

ACID 65 BB-Mount

bell

Easy Bell

Product information

colour

swimmingpool´n´black

weight

25,2 kg

Art. No

810121

SRP*

2271 EUR

*Suggested retail price

Because of ongoing problems in the delivery chain, the bike can be delivered with modifications.

More Information

Bike category of use: 2

You can find more information about Bike Classification at the following link.

More Information

110
kg

Maximum rider weight

The rider weight refers to the weight of the rider including clothing and any equipment worn on the body.

Please see the table for information on the distribution of weight across the system in conjunction with compatible accessories (luggage carriers, bike trailers, etc.).

System weight table

Geometry

	46 cm	50 cm	54 cm
Seat tube	440	480	520
Top Tube Horizontal	590	595	606
Seat angle	73°	73°	73°
Head tube angle	69°	69.5°	69.5°
Chainstays	509	509	509
Head tube	125	135	155
Wheelbase	1158	1159	1172
BB-Height to Hub	75	75	75
Protrusion height - 80mm	704	690	697
Reach	394	397	403
Stack	626	638	656

Ergonomics

	46 cm	50 cm	54 cm
Stem length	90	90	90
Angle stem	17°	17°	17°
Handlebar width	700	700	700
Crank length	170	170	170
Length seat post	300	300	300
Diameter seatpost	30.9	30.9	30.9
Diameter tire maximum	746	746	746
Width tire maximum	56	56	56

All values are given in millimetres or degrees.

We designed the Nuride Hybrid Performance Allroad to make two-wheeled adventures accessible to all – because who couldn't use some freewheeling in their life? There's a 63mm suspension fork and grippy Schwalbe tyres for a comfortable ride, even on rough roads and tracks. Powerful hydraulic disc brakes ensure you're always in control, whatever the weather. The Bosch Performance drive with smart system works seamlessly with Shimano's easy-to-use 9-speed Cues gears to make light work of any route, with up to 75Nm of torque and a 500Wh battery. And a full complement of practical equipment, from mudguards to lights and kickstand, just leaves you with one question: where will it take you next?
