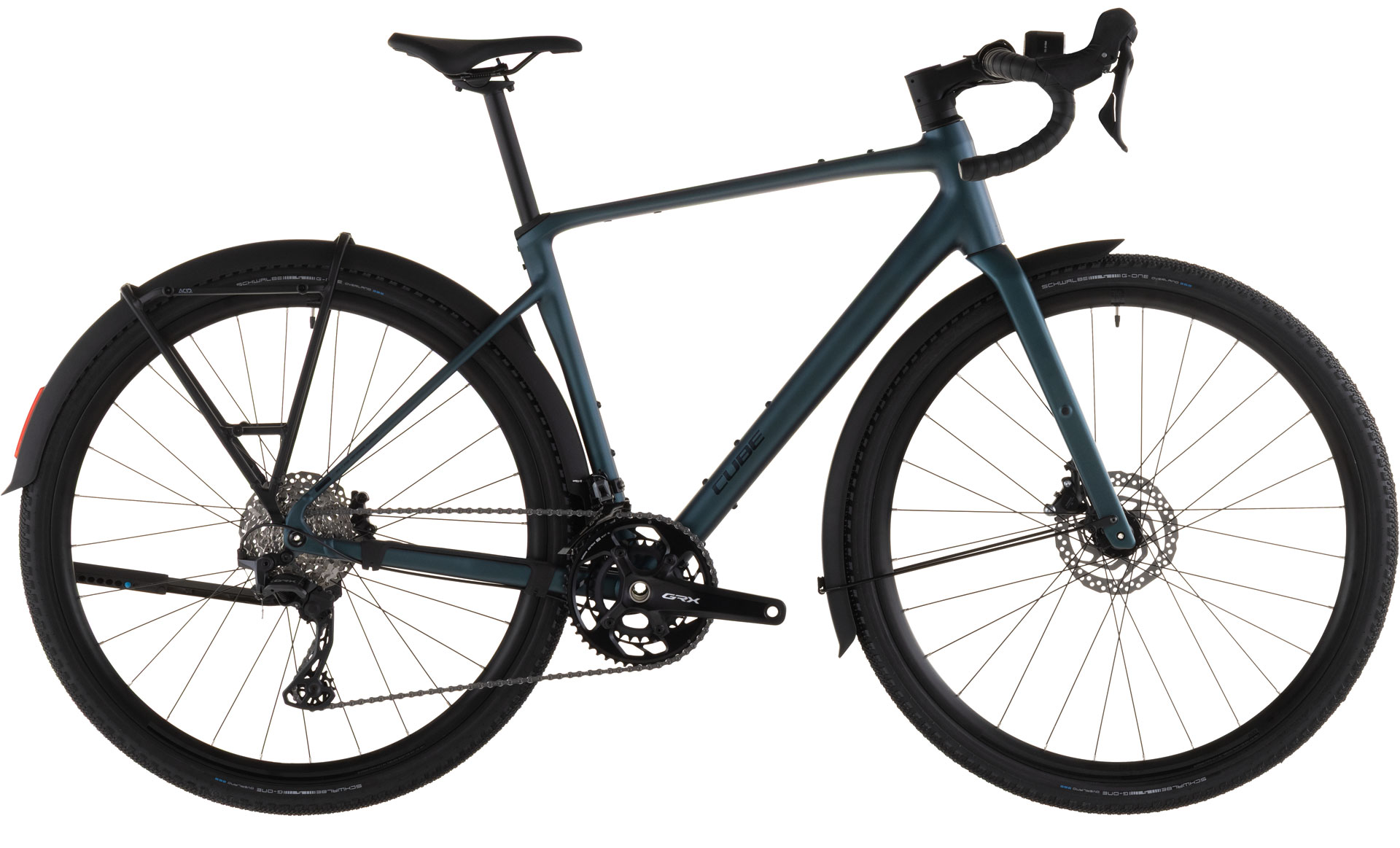

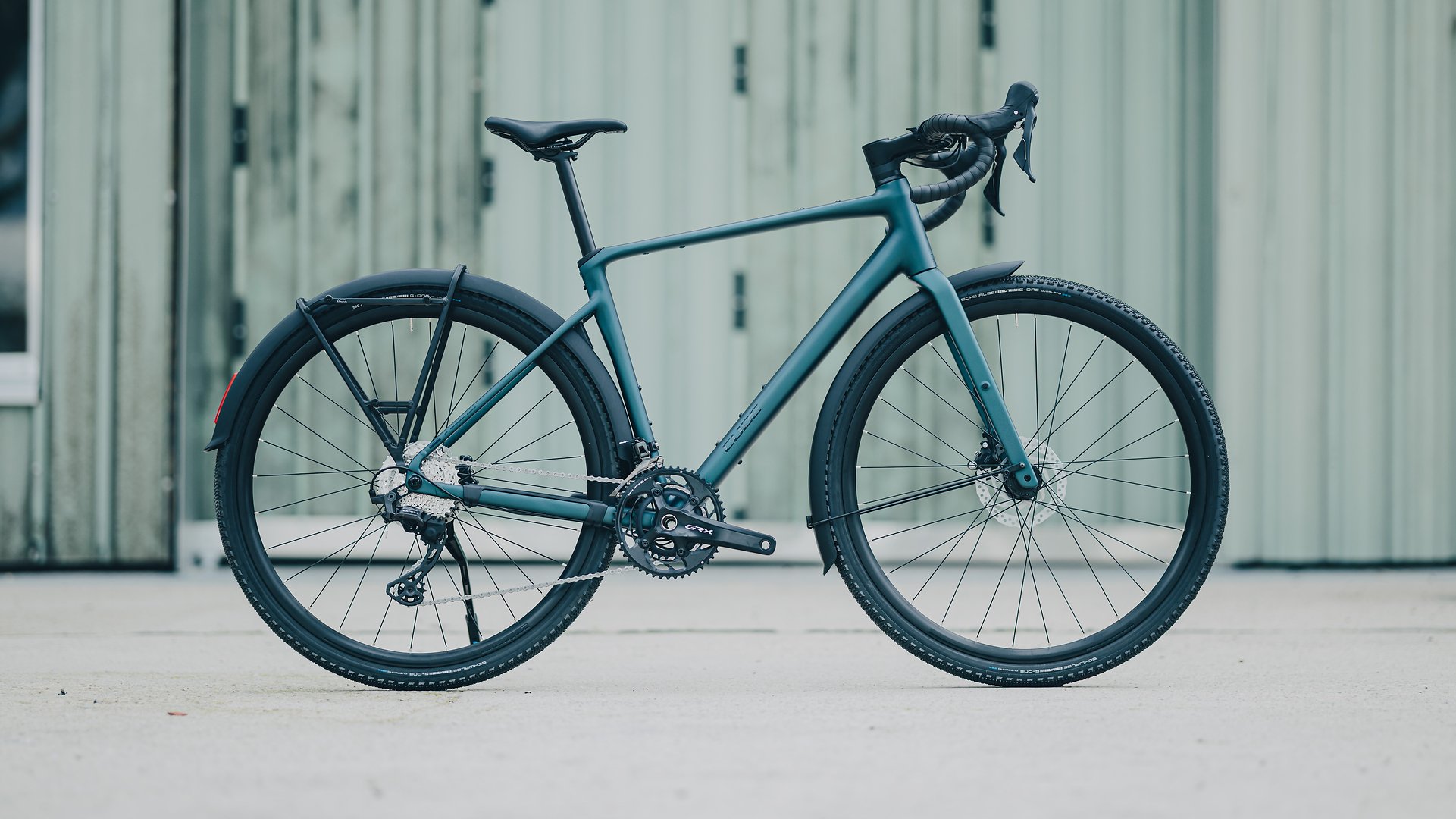

NUROAD
RACE FE

SRP* 19990 NOK

ArtNo. 129470

royalgreen´n´black

Comparison

THE FREEDOM
TO CHOOSE

Form meets function meets perfection in the Nuroad's frame. Crafted from High Performance Aluminium with a keen eye on detail, it blends the organic aesthetic of a road race bike with the practical functionality of a tourer. Advanced Internal Cable Routing, an integrated seat clamp and Smooth Welding all contribute to its svelte appearance, whilst the rigid carbon fork adds a dose of vibration-reducing comfort to the mix. But it's super practical, too, with clearance for up to 45mm tyres with the supplied mudguards. And we included our SIC 2.0 rear carrier, a lighting set and a kickstand, so you're all set for any journey.

Frame Material

Aluminium Superlite

Tire clearance

45mm

Configuration

FE

Highlights

When you need one bike to take it all on, the Nuroad Race FE is there for you. Fully equipped with everything you need for any journey – from your weekday commute to a multi-day tour – and built with rough roads and gravel tracks in mind, it's a new way to think about life on two wheels.

Yes, the Nuroad Race FE is elegant. You can't escape the organic flow of its Smooth Welded frame, or the clean lines that are partly thanks to Advanced Internal Cable Routing. But that's only half the story, because the rest is pure practicality. For starters, it's fully equipped with mudguards, SIC 2.0 rear carrier, lights and kickstand. If you need extra carrying capacity, the full carbon fork has lowrider mounts to add an optional carrier. The rugged Schwalbe 45mm G-One Overland tyres are built for the job, of course, and there's more than ample frame clearance. Shimano GRX hydraulic disc brakes have the power to keep you safe, whatever the weather. And reliable Shimano GRX 2x12 gears ensure the right ratio is always at your fingertips.

Frame

frame

Aluminium 6061 T6 Superlite, Internal Cable Routing, Integrated Seat Post Clamp, Flat Mount Disc, Fender & Rack Option, 12x142mm, UDH™

A bicycle is such a versatile tool. That's why many riders add accessories like a luggage carrier, mudguards, kickstand and lights. But with our Fully Equipped range you don't have to, because we've already taken care of all of that. With carefully selected accessories that match and integrate with each bike, you're all set for any journey from the weekday commute to a longer tour.

Adventure sometimes demands different kit. That's where our low rider rack mounts come in. Designed to accept an optional fork rack, they're a great way to carry up to 10kg of additional weight for extended tours. Not only that but carrying some of your luggage over the front wheel helps improve weight distribution and handling. Win, win.

Combining everything we know about building great-riding off-road bikes, Gravel Comfort Geometry is the secret ingredient that makes our gravel series such a blast to ride. Nimble enough to mix it up in the rough, stable enough for reassuring descents and with comfort for the long haul, we've got it all covered.

Smooth Welding isn't easy, but worthwhile things usually aren't. It has two advantages. First, and most obviously, it looks great: one tube seems to almost flow into the other. Second, and at least as importantly, it helps to minimise load peaks on welded areas for better frame strength and durability.

CUBE's Aluminium Superlite starts with heat-treated 6061 aluminium, which has the qualities – high fatigue resistance, good stiffness, low weight and excellent strength – that are important for a bicycle frame. Then we make it into double butted tubes, to reduce weight without sacrificing any of its strength. The result? Exceptionally light, strong and tough frames.

size

XS, S, M, L, XL, XXL

Rigid fork

CUBE C:62® Technology, 1 1/8" - 1 1/2" Tapered, Integrated Cable Routing, Flat Mount Disc, Fender & Lowrider Mounts, Internal Light Cable Option, 12x100mm

Drivetrain & brakes

shift/ brake levers

Shimano GRX ST-RX610

brake system

Shimano GRX ST-RX610 / BR-RX410, Hydr. Disc Brake, Flat Mount (160/160)

rear derailleur

Shimano GRX RD-RX820, Direct Mount, 12-Speed

front derailleur

Shimano GRX FD-RX820-F

bottom bracket

Shimano BB-RS500PB, Pressfit

crankset

Shimano GRX FC-RX820, 48x31T

cassette

Shimano 105 CS-HG710, 11-36T

chain

Shimano CN-M6100

Cockpit

headset

ACROS, Top Integrated 1 1/2" w/ Integrated Cable Routing, Bottom Integrated 1 1/4"

Stem

CUBE CIS Stem w/ Cable Routing, FPI-Link

handlebar

CUBE Gravel Race Bar

handlebar tape

ACID Bartape CC 3.0

Wheels

wheelset

ACID Pro GR 2.5 Disc, 28/28 Spokes, 12x100mm/12x142mm, Tubeless Ready, Shutter PD-7-07 front Dynamo

tyres

Schwalbe G-One Overland 365, Kevlar, TLR, 45-622

Finishing kit

saddle

ACID Nuance Lite

seat post

CUBE Performance Post, 27.2mm

front light

ACID Pro-D100

rear light

ACID Mudguard Rear Light PRO-D, 6V, AC

kickstand

ACID FM Pure Kickstand

mudguards

ACID 50

bell

Knog Oi

carrier

ACID Carrier SIC 2.0 Rail Boost

Product information

colour

royalgreen´n´black

weight

12,9 kg

Art. No

129470

SRP*

19990 NOK

*Suggested retail price

Due to unforeseeable supply chain issues, the bike may be delivered with modifications.

More Information

Bike category of use: 2

You can find more information about Bike Classification at the following link.

More Information

100
kg

Maximum rider weight

The rider weight refers to the weight of the rider including clothing and any equipment worn on the body.

Please see the table for information on the distribution of weight across the system in conjunction with compatible accessories (luggage carriers, bike trailers, etc.).

System weight table

Geometry

	XS	S	M	L	XL	XXL
Seat tube	470	500	530	550	570	590
Top Tube Horizontal	519	537	560	575	590	605
Seat angle	75.7°	74.7°	73.9°	73°	73°	73°
Head tube angle	69°	70°	71.5°	72°	72.5°	73°
Chainstays	440	494	494	442	442	442
Head tube	110	135	165	185	205	225
Wheelbase	1043	1045	1046	1048	1058	1068
BB-Height to Hub	70	70	70	70	70	70
Protrusion height - 80mm	751	780	812	832	852	872
Reach	385	385	390	389	397	406
Stack	527	555	589	610	631	652

Ergonomics

	XS	S	M	L	XL	XXL
Stem length	80	80	90	100	100	110
Angle stem	6°	6°	6°	6°	6°	6°
Handlebar width	400	400	420	440	440	460
Crank length	170	170	170	170	172.5	172.5
Length seat post	350	350	350	400	400	400
Diameter seatpost	27.2	27.2	27.2	27.2	27.2	27.2
Diameter tire maximum	732	732	732	732	732	732
Width tire maximum	45	45	45	45	45	45
