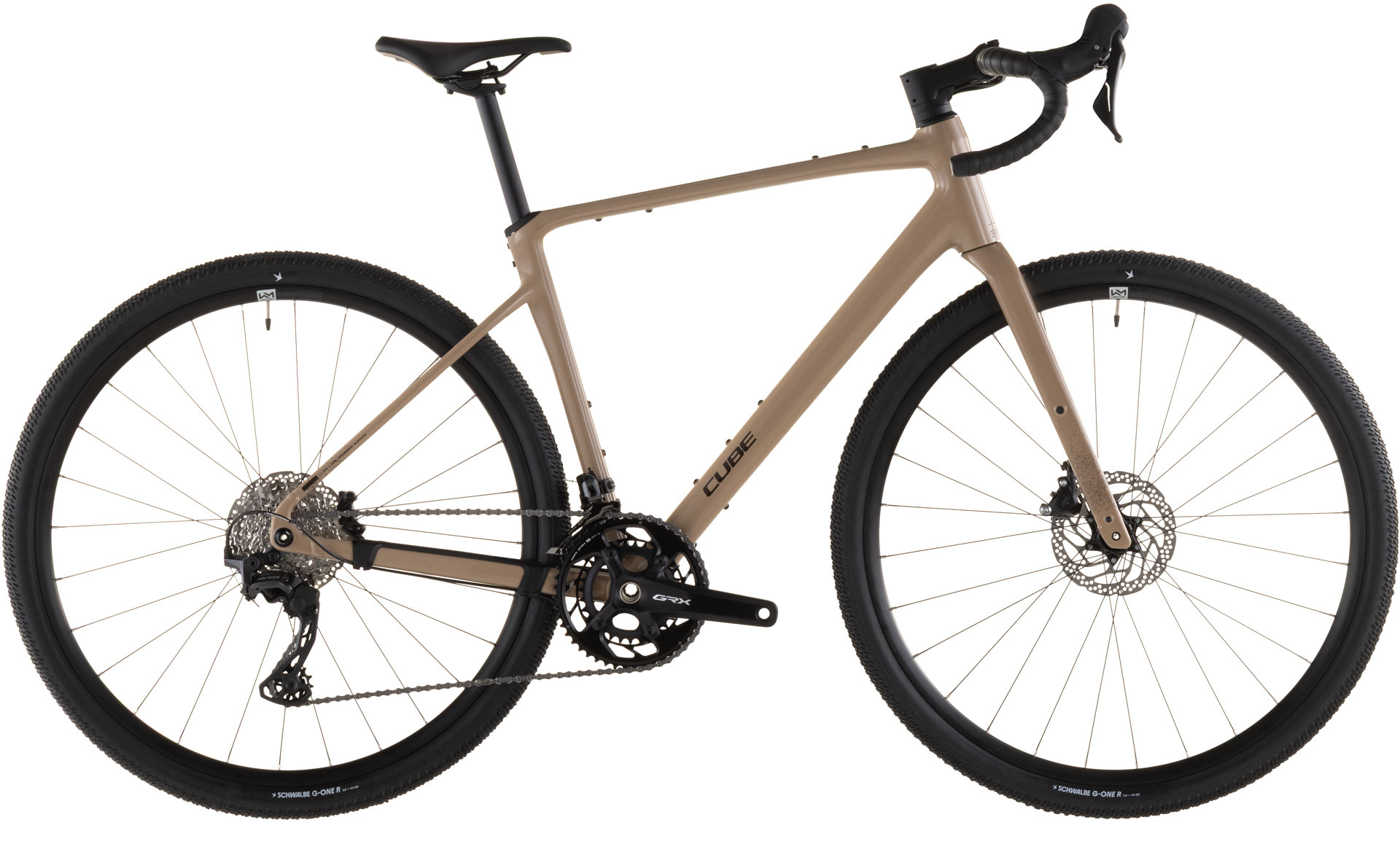

NUROAD
RACE

SRP* 18790 NOK

ArtNo. 129460

cappuccino´n´black

Comparison

FAST,
FUN,
VERSATILE

Form meets function meets perfection in the Nuroad's frame. Crafted from High Performance Aluminium with a keen eye on detail, it blends the organic aesthetic of a road race bike with the practical functionality of a tourer. Advanced Internal Cable Routing, an integrated seat clamp and Smooth Welding all contribute to its svelte appearance, whilst the rigid carbon fork adds a dose of vibration-reducing comfort to the mix. But it's super practical, too, with clearance for up to 50mm tyres (45mm with mudguards), compatibility with our SIC 2.0 rear carrier, and host of mounting points for accessories.

Frame Material

Aluminium Superlite

Tire clearance

50mm

Highlights

Built for the job, when the job is taking on any road, any surface, anywhere. The Nuroad Race's sleek High Performance Aluminium frame combines road race-inspired looks with clearance for up to 50mm tyres and the versatility to accept a wide range of accessories. Commute, tour or explore – it's up to you.

Hiding beneath the sleek, organic lines of the Nuroad Race's frame and full carbon fork is a bike with serious intent. There's a clue in the Shimano GRX 2x12 gears, which serve up a huge range of hill-devouring ratios with the dependable durability of equipment built specifically for gravel use. Matching hydraulic disc brakes and grippy Schwalbe G-One R 45mm tyres on Newmen Performance Gravel 25 wheels offer excellent grip and control in any weather – plus there's clearance for up to 50mm tyres. And, with a huge range of frame and fork mounting points for accessories like mudguards and luggage carriers, it's as adaptable as it is rugged.

Frame

frame

Aluminium 6061 T6 Superlite, Internal Cable Routing, Integrated Seat Post Clamp, Flat Mount Disc, Fender & Rack Option, 12x142mm, UDH™

Adventure sometimes demands different kit. That's where our low rider rack mounts come in. Designed to accept an optional fork rack, they're a great way to carry up to 10kg of additional weight for extended tours. Not only that but carrying some of your luggage over the front wheel helps improve weight distribution and handling. Win, win.

A gravel bike is a supremely versatile beast, which is why all our gravel models have a fender and rack option. With generous frame clearances to fit comfortable, safe and grippy tyres even with full length mudguards, we also neatly integrated the rear rack into the mudguard design – and included a rear light, too.

Combining everything we know about building great-riding off-road bikes, Gravel Comfort Geometry is the secret ingredient that makes our gravel series such a blast to ride. Nimble enough to mix it up in the rough, stable enough for reassuring descents and with comfort for the long haul, we've got it all covered.

Smooth Welding isn't easy, but worthwhile things usually aren't. It has two advantages. First, and most obviously, it looks great: one tube seems to almost flow into the other. Second, and at least as importantly, it helps to minimise load peaks on welded areas for better frame strength and durability.

CUBE's Aluminium Superlite starts with heat-treated 6061 aluminium, which has the qualities – high fatigue resistance, good stiffness, low weight and excellent strength – that are important for a bicycle frame. Then we make it into double butted tubes, to reduce weight without sacrificing any of its strength. The result? Exceptionally light, strong and tough frames.

size

XS, S, M, L, XL, XXL

Rigid fork

CUBE C:62® Technology, 1 1/8" - 1 1/2" Tapered, Integrated Cable Routing, Flat Mount Disc, Fender & Lowrider Mounts, Internal Light Cable Option, 12x100mm

Drivetrain & brakes

shift/ brake levers

Shimano GRX ST-RX610

brake system

Shimano GRX ST-RX610 / BR-RX410, Hydr. Disc Brake, Flat Mount (160/160)

rear derailleur

Shimano GRX RD-RX820, Direct Mount, 12-Speed

front derailleur

Shimano GRX FD-RX820-F

bottom bracket

Shimano BB-RS500PB, Pressfit

crankset

Shimano GRX FC-RX820, 48x31T

cassette

Shimano 105 CS-HG710, 11-36T

chain

Shimano CN-M6100

Cockpit

headset

ACROS, Top Integrated 1 1/2" w/ Integrated Cable Routing, Bottom Integrated 1 1/4"

Stem

CUBE CIS Stem w/ Cable Routing, FPI-Link

handlebar

CUBE Gravel Race Bar

handlebar tape

ACID Bartape CC 3.0

Wheels

wheelset

Newmen Performance X.R.25, 28/28 Spokes, 12x100mm / 12x142mm, Tubeless Ready

tyres

Schwalbe G-One R, Kevlar, TLR, 45-622

Finishing kit

saddle

ACID Nuance Lite

seat post

CUBE Performance Post, 27.2mm

Product information

colour

cappuccino´n´black

weight

10,8 kg

Art. No

129460

SRP*

18790 NOK

*Suggested retail price

Due to unforeseeable supply chain issues, the bike may be delivered with modifications.

More Information

Bike category of use: 2

You can find more information about Bike Classification at the following link.

More Information

100
kg

Maximum rider weight

The rider weight refers to the weight of the rider including clothing and any equipment worn on the body.

Please see the table for information on the distribution of weight across the system in conjunction with compatible accessories (luggage carriers, bike trailers, etc.).

System weight table

Geometry

	XS	S	M	L	XL	XXL
Seat tube	470	500	530	550	570	590
Top Tube Horizontal	519	537	560	575	590	605
Seat angle	75.7°	74.7°	73.9°	73°	73°	73°
Head tube angle	69°	70°	71.5°	72°	72.5°	73°
Chainstays	440	494	494	442	442	442
Head tube	110	135	165	185	205	225
Wheelbase	1043	1045	1046	1048	1058	1068
BB-Height to Hub	70	70	70	70	70	70
Protrusion height - 80mm	751	780	812	832	852	872
Reach	385	385	390	389	397	406
Stack	527	555	589	610	631	652

Ergonomics

	XS	S	M	L	XL	XXL
Stem length	80	80	90	100	100	110
Angle stem	6°	6°	6°	6°	6°	6°
Handlebar width	400	400	420	440	440	460
Crank length	170	170	170	170	172.5	172.5
Length seat post	350	350	350	400	400	400
Diameter seatpost	27.2	27.2	27.2	27.2	27.2	27.2
Diameter tire maximum	732	732	732	732	732	732
Width tire maximum	50	50	50	50	50	50
