AMS HYBRID ONE44 C:68X
SLT 400X

SRP* 99990 NOK

ArtNo. 104300

matrixblack´n´white

Comparison

ENGINEERED FOR
GOOD TIMES

The AMS Hybrid ONE44 C:68X frame makes use of our most advanced C:68X® carbon material, for maximum possible strength and stiffness with the lowest possible weight. The 400Wh battery is incorporated into the down tube, as close to the lightweight Bosch SX motor as possible to improve handling, and the frame is PowerMore-ready for a 250Wh range boost with the optional battery pack. Internal Cable Routing complements the frame's sleek silhouette and there's a lightweight Direct Mount chain guide. With a UDH gear hanger and angle adjustable headset so you can tweak the handling to suit your riding style, it's got everything you need for fast-paced trail riding.

Frame Material

C:68X®

Frame weight

2100g

Battery

400Wh

Highlights

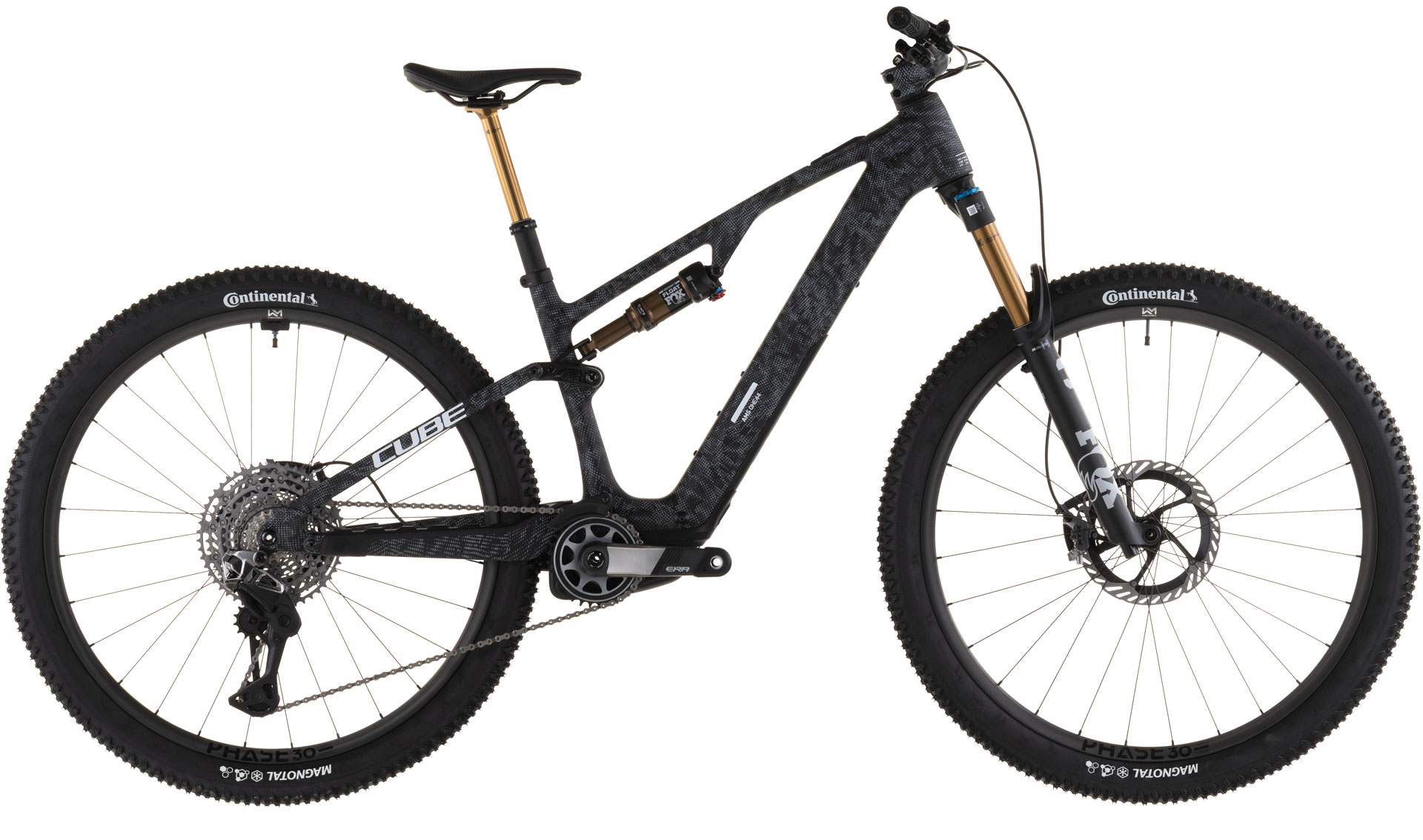

The AMS Hybrid ONE44 C:68X SLT rewrites the e-MTB rules by combining an ultra-light C:68X® carbon frame with Bosch's lightweight SX drive and a 400Wh battery, for up to 60Nm of smooth assistance. With Fox Factory suspension and Shimano XTR Di2 gears, it's the ultimate trail machine.

The AMS Hybrid ONE44 C:68X SLT is all about low weight with ultimate pace. Bosch's lightweight SX drive unit and 400Wh battery save precious grammes but are still capable of serving up 60Nm of torque assistance, so that's a good start. Throw in the ultra-light C:68X® carbon chassis, Race Face carbon cranks, Newmen Phase 30 wheels with Continental Magnotal 2.4in tyres, and things are looking even better. A Fox 36 Float SL Factory fork and Float Factory shock keep everything planted and stable, whilst a remote dropper post adds both confidence and speed to the mix. Last but by no means least, Shimano XTR Di2 1x12 gears with matching XTR hydraulic disc brakes ensure you can go – and slow – at exactly the right pace. Which is, of course, very fast indeed.

Frame

frame

C:68X® Monocoque Advanced Twin Mold Technology, Effiecient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Fixed Integrated Battery, Advanced Internal Cable Routing

Combining all our expertise from carbon frame building into the ultimate material, C:68X® carbon uses the optimum blend of fibre and nano particle-infused resin. Precision Advanced Twin Mold manufacturing means we can avoid bonded sleeves or inserts, too. It's the new benchmark for light, stiff and strong.

Gear and brake cables need a way to get from handlebar controls to frame – but what if there was no need for holes near the head tube? We came up with a design that takes cables into the frame via the headset, maintaining full internal cable routing but making it even neater and less obtrusive.

Bosch SX technology incorporates a new, lighter and more configurable battery setup. To make the most of the weight saving, we've integrated the new battery fully into the down tube. This means we can position it optimally for the best weight distribution and handling, as well as saving more weight by building a down tube that's precisely the right size to fit, and without the need for an access hatch. And the Power More option means you can add an additional 250Wh battery quickly and simply, for extra range. It's the best of both worlds.

When you're harnessing gravity, the trail is challenging and every second counts, the geometry of your CUBE is a critical component. That's why our adjustable headset allows you to tweak head angle, so you can set your bike up just the way you like it. A little slacker for more stability, or a little steeper for better agility. The choice is yours...

When every gramme counts, it pays to sweat the tiniest of details. The new CUBE carbon stem-handlebar-unit creates a sleek new cockpit arrangment for the Stereo One44 and One55 by combining stem and handlebar into a single sleek, strong and exceptionally light unit. It's all about the need for speed...

Agile Trail Geometry is a development of our popular and well received Agile Ride Geometry, with a focus on riders who enjoy pushing their limits on the trails. By lowering standover height and allowing more room for the rider to move around over the bike, we've created a setup that rewards adventurous line choices. Because, after all, it's all about having fun.

With our Advanced Twin Mold process we use two precisely manufactured forms for our C:62®, C:68® and C:68X® carbon frames. The first form is to ensure an accurate layup. The second, inner form keeps every individual fibre precisely where it needs to be while the frame cures. The result is a significantly lighter, stronger frame, with fibre density tailored to anticipated loadings at specific points.

size

S, M, L, XL

Suspension

Suspension fork

Fox 36 Float SL Factory GRIPX2, Tapered, 15x110mm, 140mm

shock

Fox Float Factory, 210x55mm, Adjustable LSC/LSR w/ 2-Pos. Lever

shock hardware

Front: 30x8mm, Rear: DU-Bushing 12.7mm

E-bike system

drive unit

Bosch Drive Unit Performance SX max. 60Nm (BDU31)

Remote

Bosch System Control, incl. Mini Remote

battery

Bosch CompactTube 400

charger

Bosch 4A

Drivetrain & brakes

brake system

Shimano XTR BR-M9220, Hydr. Disc Brake (203/180)

rear derailleur

Shimano XTR Di2 RD-M9260-SGS, 12-Speed, Electronic Shifting System

shifters

Shimano XTR Di2 SW-M9250-I, Direct Attach

crankset

Race Face ERA E-MTB, 32T

cassette

Shimano XTR CS-M9200, 10-51T

chain

Shimano CN-M9100

chain guide

Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate

Cockpit

headset

ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment

integrated bar/ stem

CUBE Stereo Carbon Cockpit System

grips

ACID Disrupt, Soft Compound

Wheels

wheelset

Newmen Phase 30 base/base, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready

tyres

Conti Magnotal, Trail Soft, Tubeless Ready, 2.4

Finishing kit

saddle

ACID Venec EMTB Trail 140

seat post

Fox Transfer Factory, 31.6mm, Kashima Coated

pedals

ACID PP MTB

extras

Schwalbe Aerothan™ Inner Tubes w/ ClikValve

Product information

colour

matrixblack´n´white

weight

16,8 kg

Art. No

104300

SRP*

99990 NOK

*Suggested retail price

Due to unforeseeable supply chain issues, the bike may be delivered with modifications.

More Information

Bike category of use: 4

You can find more information about Bike Classification at the following link.

More Information

110
kg

Maximum rider weight

The rider weight refers to the weight of the rider including clothing and any equipment worn on the body.

Please see the table for information on the distribution of weight across the system in conjunction with compatible accessories (luggage carriers, bike trailers, etc.).

System weight table

Geometry

Slack/Moderate	S	M	L	XL
Seat tube	370	405	420	470
Top Tube Horizontal	575 / 577	598 / 599	626 / 627	658 / 660
Seat angle	76.2° / 76°	76.2° / 76°	76.2° / 76°	76.2° / 76°
Head tube angle	65.4° / 66°	65.4° / 66°	65.4° / 66°	65.4° / 66°
Chainstays	450	450	450	450
Head tube	102	112	122	142
Wheelbase	1193 / 1186	1217 / 1210	1246 / 1239	1282 / 1274
BB-Height to Hub	-34 / -32	-34 / -32	-33 / -32	-33 / -32
Protrusion height - 80mm	761 / 765	762 / 766	762 / 766	763 / 767
Reach	429 / 428	449 / 448	474 / 473	501 / 500
Stack	615 / 617	624 / 626	633 / 635	652 / 654

Ergonomics

	S	M	L	XL
Stem length	40	50	50	50
Handlebar width	760	780	780	780
Crank length	165	165	165	165
Length seat post	346	411	476	541
Diameter seatpost	31.6	31.6	31.6	31.6
Max. insertion depth seat post	230	240	270	320
Stroke seatpost	120	150	180	210
Diameter tire maximum	760	760	760	760
Width tire maximum	66	66	66	66
Rear suspension travel	140	140	140	140
