STEREO HYBRID ONE44
EXC 800 FE

SRP* 61290 NOK

ArtNo. 102330

irongrey´n´chrome

Comparison

TRAIL
GOOD
TIMES

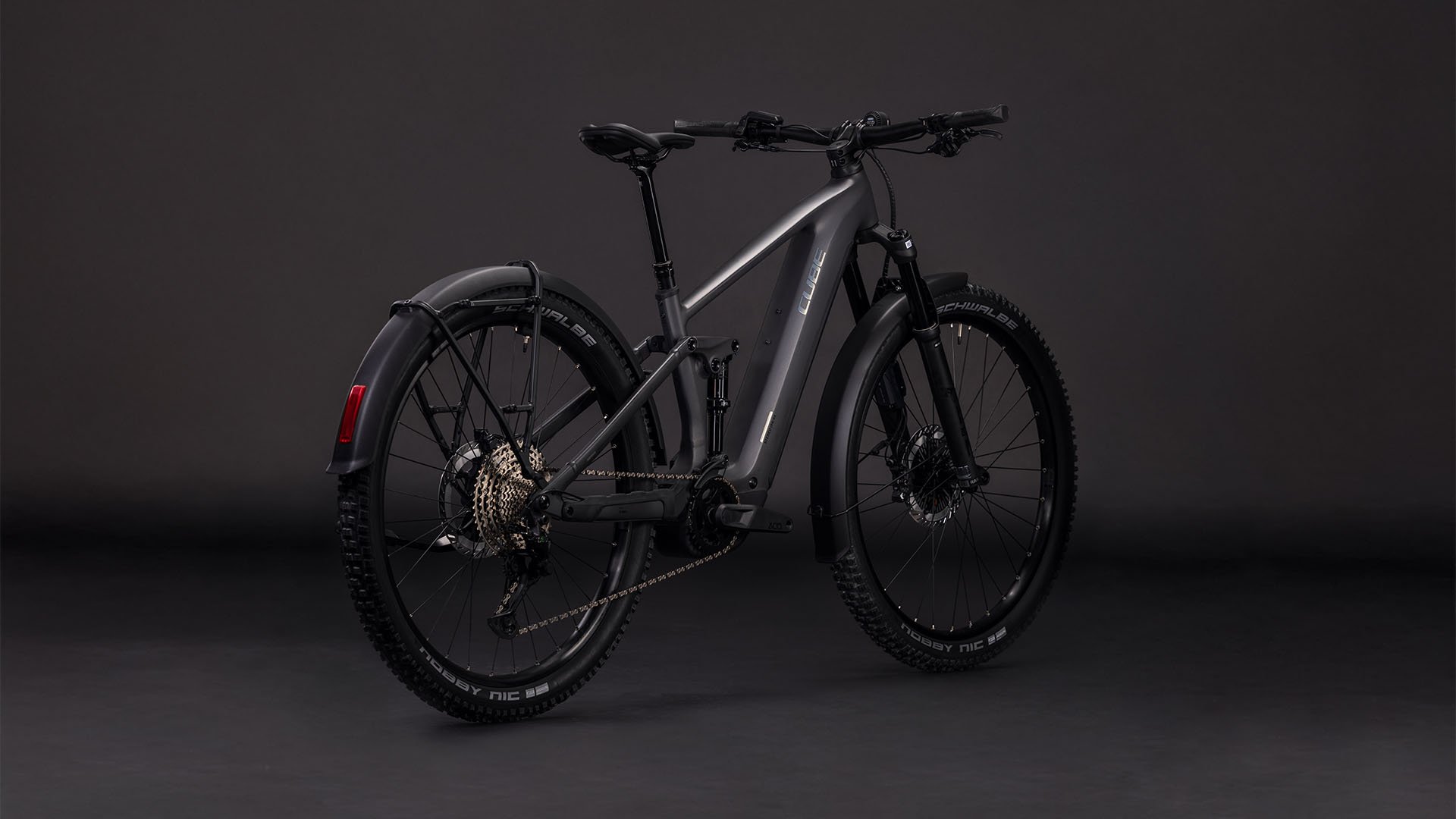

You can tell by its included mudguard, semi-integrated carrier and lighting set that the Stereo Hybrid ONE44 FE is adaptable and versatile, but its practical accessories are just part of the story. With its compact 800Wh PowerTube battery and powerful Bosch CX motor with up to 100Nm of assistance, it features 140mm of front- and rear-wheel travel for assured off-road handling and performance. Internal Cable Routing flatters the frame's clean, organic lines, while the UDH dropout is future-proof and the Direct Mount chain guard is neat and unobtrusive. Plus, with Size Split, there's a frame to suit almost every rider.

Frame Material

Aluminium Superlite

Battery

800Wh

Sizes

Size Split

Highlights

We're great believers in less being more, but there are times when more is needed. And this is one of them. The ABS-equipped Stereo Hybrid ONE44 EXC 800 FE's included mudguards, luggage carrier and lighting set make this a trail-taming, Bosch-powered bike to take on any challenge... and win.

If you've ever wondered what you'd do with a bike that's capable of taking on anything... well, you're about to find out. With its mudguards, luggage carrier and lighting set, the Stereo Hybrid ONE44 EXC 800 FE is a capable weekday commuter or weekend tourer. But that's not all, because 140mm of suspension travel at each end – courtesy of a Fox 36 Float AWL fork and Float Rhythm RC shock – means you can ride just about anywhere. Grippy Schwalbe Nobby Nic 2.6in tyres and powerful Shimano XT hydraulic disc brakes equipped with ABS Pro for tricky riding conditions ensure you're always in control. And, with up to 100Nm of assistance, an 800Wh PowerTube battery and the huge range of Shimano's XT 1x12 gears, the Bosch CX drive will get you where you want to be with a smile on your face.

Frame

frame

Aluminum Superlite, Gravity Casting Technology, Efficient Comfort Control, FSP 4-Link, Agile Comfort Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing, Kickstand/Fender/Carrier Mounting Points, Integrated Seatclamp

The Fully Integrated Battery system tucks the power of Bosch's battery out of sight, safely inside the confines of your bike's downtube. Hidden beneath a splash and dust-proof cover and secured with a lock to prevent theft, it allows us to design beautiful e-bike frames that are as brilliantly functional as they are good to look at.

Gear and brake cables need a way to get from handlebar controls to frame – but what if there was no need for holes near the head tube? We came up with a design that takes cables into the frame via the headset, maintaining full internal cable routing but making it even neater and less obtrusive.

In many ways the battery is the heart of an e-bike. That's why, with our Modular Battery System, we've made a setup that's easy to use. You can charge the battery on or off the bike, and we've made room for even high capacity batteries. You'll wonder how you ever managed without it.

The right bike should fit you perfectly. That's why we created Size Split. For shorter riders, the smaller 27.5in wheel standard allows us to build frames that fit well while remaining agile and sure-footed. And, for taller riders, we built a range of sizes around the fast-rolling 29er wheel standard. Whichever one you choose, you can be sure of a fit that makes your bike feel as though it was built just for you.

Your bike should be a pleasure to ride wherever your curiosity leads you, which is why we created Agile Comfort Geometry. With a careful blend of reassuring handling, ride-all-day comfort and an on-the-bike position that feels natural and welcoming, you'll look forward to every ride.

CUBE's Aluminium Superlite starts with heat-treated 6061 aluminium, which has the qualities – high fatigue resistance, good stiffness, low weight and excellent strength – that are important for a bicycle frame. Then we make it into double butted tubes, to reduce weight without sacrificing any of its strength. The result? Exceptionally light, strong and tough frames.

X-Connect is the simple way to attach a compatible ACID light to your CUBE bike. With a connector built into the headset and the wiring hidden in the frame, all that's left to do is attach the light, plug it in... and off you go. See and be seen, the easy way.

size

Size Split: 27.5: S // 29: M, L, XL

Suspension

Suspension fork

Fox 36 Float AWL RAIL 2.0, Tapered, 15x110mm, E-Bike Optimized, 140mm

shock

Fox Float Rhythm RC, 205x60mm (27.5: 185x55mm), Adjustable LSR w/ 2-Pos. Lever, Trunnion Mount

shock hardware

Top: 54mm Trunnion Mount, Bottom: 22.2x8mm

E-bike system

drive unit

Bosch Drive Unit Performance Line CX max. 100Nm (BDU38)

Remote

Bosch Purion 200 with Integrated Display

battery

Bosch PowerTube 800

charger

Bosch 2A

ABS technology

Bosch ABS Pro

Drivetrain & brakes

brake system

Shimano XT BR-M8220, Hydr. Disc Brake w/ Front ABS (203/203)

rear derailleur

Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed

shifters

Shimano XT SL-M8100-IR, Direct Attach

crankset

ACID MTB Hybrid Pro, 27.5: 36T // 29: 34T

cassette

Shimano Deore CS-M6100, 10-51T

chain

KMC e12

chain guide

Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate

Cockpit

headset

ACROS AZF-1034, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), X-Connect Interface

Stem

CUBE Performance Stem E-MTB 35, FPI-Link

handlebar

CUBE Rise Trail Bar 35

grips

ACID Hybrid Perform

Wheels

wheelset

ACID SLX 30, 32/32 Spokes, 15x110mm/12x148mm, Tubeless Ready

tyres

Schwalbe Nobby Nic, Performance, 2.6

Finishing kit

saddle

ACID Venec EMTB Plus 145

seat post

CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm

pedals

ACID PP MTB

front light

ACID Front Light PRO-E 150 X-Connect, 12V, DC

rear light

ACID Mudguard Rear Light PRO-E, 12V, DC

kickstand

ACID FM Pure Kickstand

mudguards

ACID 65

bell

Knog Oi

carrier

ACID Carrier SIC 2.0 Rail Boost

Product information

colour

irongrey´n´chrome

weight

28,4 kg

Art. No

102330

SRP*

61290 NOK

*Suggested retail price

Due to unforeseeable supply chain issues, the bike may be delivered with modifications.

More Information

Bike category of use: 2

You can find more information about Bike Classification at the following link.

More Information

120
kg

Maximum rider weight

The rider weight refers to the weight of the rider including clothing and any equipment worn on the body.

Please see the table for information on the distribution of weight across the system in conjunction with compatible accessories (luggage carriers, bike trailers, etc.).

System weight table

Geometry

	S	M	L	XL
Seat tube	370	405	420	480
Top Tube Horizontal	567	597	627	670
Seat angle	76°	76°	76°	76°
Head tube angle	65.4°	65.4°	65.4°	65.4°
Chainstays	461	494	494	494
Head tube	149	107	117	139
Wheelbase	1206	1260	1291	1337
BB-Height to Hub	17	36	36	36
Protrusion height - 80mm	756	786	789	799
Reach	420	447	474	510
Stack	622	631	640	660

Ergonomics

	S	M	L	XL
Stem length	50	50	50	50
Angle stem	12°	12°	12°	12°
Handlebar width	760	760	760	760
Crank length	165	165	165	165
Length seat post	403	462	505	505
Diameter seatpost	31.6	31.6	31.6	31.6
Max. insertion depth seat post	195	220	235	295
Stroke seatpost	120	150	170	170
Diameter tire maximum	724	762	762	762
Width tire maximum	67	67	67	67
Rear suspension travel	140	140	140	140
