NULANE
RACE FE

SRP* 14990 NOK

ArtNo. 156311

amber´n´black

Comparison

SUBURBAN
WARRIOR

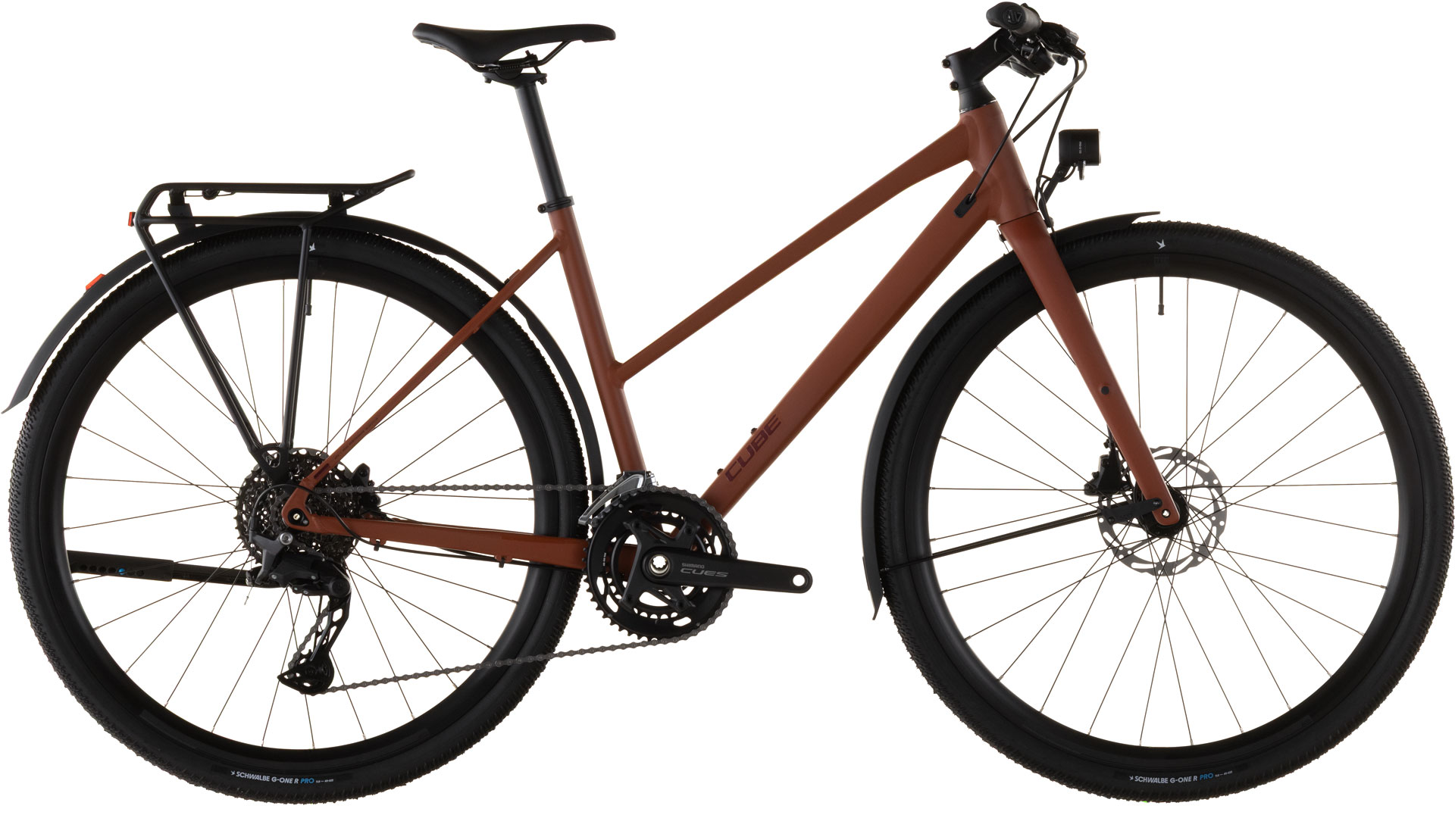

The Trapeze version of our versatile Nulane looks familiar, and there's a reason for that – it's comfortable, practical and easy to mount and dismount. But that's not the whole story, because the detail is important, too. Superlite double-butted aluminium frame tubes and a full carbon fork help keep the weight down. We included mudguards, carrier, a lighting set and kickstand so that you're all set for everything from the daily commute to a longer tour out into the countryside. And the thru axles front and rear are a technical touch that you'll appreciate, because they keep the handling safe, secure and predictable whether you're carrying a load or not.

Frame Material

Aluminium Superlite

Tire clearance

40mm

Configuration

FE

Highlights

With its road bike DNA and full carbon fork, the Nulane Race FE is both nimble and fast. And, with its included mudguards, luggage carrier and light set, it's also set up for everything from the weekday commute to longer forays into the countryside. The best of all worlds.

You need a bike that's fast, comfortable, practical... and tough. We hear you. Have you discovered the Nulane Race FE? Kitted out with a full complement of accessories including mudguards and luggage carrier, it's all set to tackle everything from the daily commute to longer weekend tours, on pretty much any surface. The comfortable carbon fork helps filter out road buzz. Grippy and fast-rolling 40mm Schwalbe G-One tyres help keep everything comfortable and under control. Shimano's Cues 2x10 gears put the right ratio for any scenario literally at your fingertips. And powerful hydraulic disc brakes mean you can stop safely, whatever the weather throws your way. Where will it take you next?

Frame

frame

Aluminium Superlite Trekking Sport, Flat Mount Disc, 12x142mm, AXH

A bicycle is such a versatile tool. That's why many riders add accessories like a luggage carrier, mudguards, kickstand and lights. But with our Fully Equipped range you don't have to, because we've already taken care of all of that. With carefully selected accessories that match and integrate with each bike, you're all set for any journey from the weekday commute to a longer tour.

Combining everything we know about building great-riding off-road bikes, Gravel Comfort Geometry is the secret ingredient that makes our gravel series such a blast to ride. Nimble enough to mix it up in the rough, stable enough for reassuring descents and with comfort for the long haul, we've got it all covered.

Cables for your gears and brakes are essential, but you don't necessarily want to see them all the time. Our semi internal cable routing takes gear and brake cables through the down tube for a cleaner appearance, smoother shifts and reduced maintenance. So your CUBE bike looks good and continues to function as it should, and you just concentrate on enjoying the ride.

CUBE's Aluminium Superlite starts with heat-treated 6061 aluminium, which has the qualities – high fatigue resistance, good stiffness, low weight and excellent strength – that are important for a bicycle frame. Then we make it into double butted tubes, to reduce weight without sacrificing any of its strength. The result? Exceptionally light, strong and tough frames.

size

Trapeze: 47cm, 50cm, 53cm

fork

CUBE TS Disc, Full Carbon, Taper, Flat Mount, 12x100mm

Drivetrain & brakes

brake system

Tektro HD-R280, Hydr. Disc, Flat Mount (160/160)

rear derailleur

Shimano Cues RD-U6020-SGS, 10-Speed

shifters

Shimano Cues SL-U6000, Rapidfire-Plus

front derailleur

Shimano Cues FD-U6010, Top Swing, 31.8mm

bottom bracket

Shimano BB-MT500PA, 92mm Pressfit

cassette

Shimano Cues CS-LG400, 11-39T

chain

KMC xGlide

Cockpit

headset

VP Z-t, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Integrated 1 1/4"

Stem

CUBE Performance Stem SLX, 31.8mm

handlebar

CUBE Flat Race Bar, 660mm

grips

ACID Travel

Wheels

wheelset

CUBE RA 2.3 Aero Disc

tyres

Schwalbe G-One R Pro, Evolution, V-Guard, 40-622

Finishing kit

saddle

ACID Nuance Lite

seat post

CUBE Performance Post, 27.2mm

pedals

ACID PP Trekking

front light

ACID PRO-D 100

rear light

ACID Mudguard Rear Light PRO-D, 6V, AC

kickstand

ACID FM Pure Kickstand

mudguards

ACID 50 BB-Mount

bell

Knog Oi

carrier

ACID Semi-Integrated Carrier, ACID RILink Adapter Compatible

Product information

colour

amber´n´black

weight

12,8 kg

Art. No

156311

SRP*

14990 NOK

*Suggested retail price

Due to unforeseeable supply chain issues, the bike may be delivered with modifications.

More Information

Bike category of use: 2

You can find more information about Bike Classification at the following link.

More Information

100
kg

Maximum rider weight

The rider weight refers to the weight of the rider including clothing and any equipment worn on the body.

Please see the table for information on the distribution of weight across the system in conjunction with compatible accessories (luggage carriers, bike trailers, etc.).

System weight table

Geometry

	47 cm	50 cm	53 cm
Seat tube	430	460	490
Top Tube Horizontal	530	544	568
Seat angle	75°	74.5°	74°
Head tube angle	70°	70.5°	71.5°
Chainstays	442	442	442
Head tube	132	142	172
Wheelbase	1047	1052	1062
BB-Height to Hub	60	60	60
Protrusion height - 80mm	617	628	645
Reach	385	391	400
Stack	542	553	585

Ergonomics

	47 cm	50 cm	53 cm
Stem length	70	70	90
Angle stem	6°	6°	6°
Handlebar width	660	660	660
Crank length	170	170	175
Length seat post	350	350	350
Diameter seatpost	27.2	27.2	27.2
Diameter tire maximum	711	711	711
Width tire maximum	42	42	42
