EDITOR HYBRID
SLT 400X FE

SRP* 14399 PLN

ArtNo. 123310

smaragdgrey´n´prism

Comparison

simpli
CITY

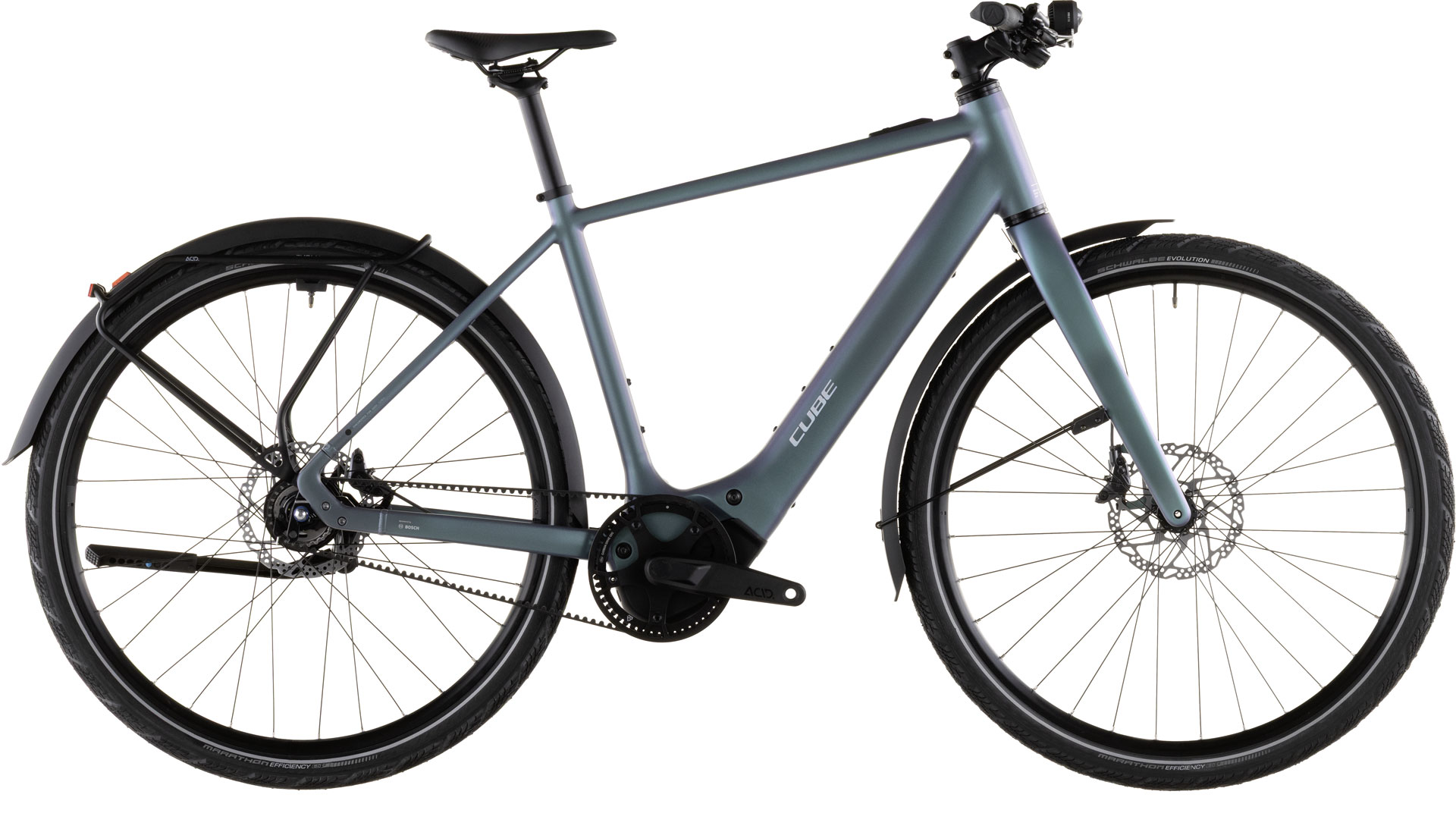

So sleek and understated is the Editor Hybrid FE's frame, at first glance it barely looks like an e-bike. Lightweight, durable aluminium construction with Smooth Welding at the main tube joints creates an elegant frame, while the full carbon fork is both light and strong. We integrated the cables to complement the frame's clean lines, and the 400Wh battery is built into the down tube to save space and weight. There's a versatile, rugged rear carrier and an optional front carrier for carrying your belongings. And we included full mudguards, a bright lighting set and a practical kickstand, so you've got everything you need.

Frame Material

Aluminium Superlite

Battery

400Wh

Configuration

FE

Highlights

You need to be where you need to be, with the minimum of hassle. And you need to be able to do that night or day, rain or shine, whilst carrying your belongings. Enter the Editor Hybrid SLT 400X FE. With its lightweight Bosch SX power and full complement of accessories, it's your two-wheeled assistant.

Combining the minimalist appeal of an elegant frame design and full carbon fork with the practicality of a full set of accessories including lights, mudguards, a rear carrier and a kickstand, the Editor Hybrid SLT 400X FE is your discreet urban concierge. There's a low-maintenance, clean Gates belt drive and a Shimano 11-speed Alfine hub gear. Bosch's lightweight, smooth and powerful SX drive and 400Wh battery work together to help you on your way. Wide, comfortable and fast-rolling Schwalbe Marathon Efficiency Evo 50mm tyres tackle city streets with ease, and powerful Shimano Deore hydraulic disc brakes help keep you safe. It really is the complete package.

Frame

frame

Aluminium Superlite, Efficient Comfort Geometry, Fixed Integrated Battery, Advanced Internal Cable Routing, Slider Dropout

How important is material choice? When it comes to the fork that holds your front wheel, more important than you might think. Not only is our Carbon Fork exceptionally light and strong, it's also surprisingly comfortable to ride. And, when you're weaving your way through city streets, those are all qualities that you'll appreciate.

Gear and brake cables need a way to get from handlebar controls to frame – but what if there was no need for holes near the head tube? We came up with a design that takes cables into the frame via the headset, maintaining full internal cable routing but making it even neater and less obtrusive.

Bosch SX technology incorporates a new, lighter and more configurable battery setup. To make the most of the weight saving, we've integrated the new battery fully into the down tube. This means we can position it optimally for the best weight distribution and handling, as well as saving more weight by building a down tube that's precisely the right size to fit, and without the need for an access hatch. And the Power More option means you can add an additional 250Wh battery quickly and simply, for extra range. It's the best of both worlds.

With our specially designed Efficient Comfort Geometry, cycling is a simple pleasure. Whether you're popping across town or exploring further afield, taking a ride with the family or with friends, for work or for pleasure, we've created a ride experience that will have you coming back for more.

CUBE's Aluminium Superlite starts with heat-treated 6061 aluminium, which has the qualities – high fatigue resistance, good stiffness, low weight and excellent strength – that are important for a bicycle frame. Then we make it into double butted tubes, to reduce weight without sacrificing any of its strength. The result? Exceptionally light, strong and tough frames.

X-Connect is the simple way to attach a compatible ACID light to your CUBE bike. With a connector built into the headset and the wiring hidden in the frame, all that's left to do is attach the light, plug it in... and off you go. See and be seen, the easy way.

size

Classic: 50cm, 54cm, 58cm, 62cm

Rigid fork

CUBE Editor Full Carbon, 1 1/8" - 1 1/2" Tapered, Internal Cable Routing, 12x100mm

E-bike system

drive unit

Bosch Drive Unit Performance SX max. 60Nm (BDU31)

Remote

Bosch System Control, incl. Mini Remote

battery

Bosch CompactTube 400

charger

Bosch 4A

Drivetrain & brakes

brake system

Shimano Deore BR-M6100, Hydr. Disc Brake (180/180)

shifters

Shimano Alfine SL-S700

crankset

ACID MTB Hybrid Pro, 52T

sprocket

Gates Rear Sprocket CDX, 26T

drive belt

Gates CDC, 125T

Cockpit

Stem

CUBE Performance Stem, 31.8mm

handlebar

CUBE Rise Trail Bar, 680mm

grips

ACID Hybrid Tour

Wheels

rims

ACID EX25, 32H, Disc, Tubeless Ready

front hub

Shimano Tiagra HB-RS470, 12x100mm, Centerlock

rear hub

Shimano Alfine SG-S7001, 11-Speed

tyres

Schwalbe Marathon Efficiency, EvoL, SuperRace, 50-622

Finishing kit

saddle

ACID Venec Lite

seat post

CUBE Performance Post, 30.9mm

pedals

CUBE PP MTB medium

front light

ACID Front Light PRO-E 150 X-Connect, 12V, DC

rear light

ACID Mudguard Rear Light PRO-E, 12V, DC

kickstand

ACID FM Pure Kickstand

mudguards

ACID 60 BB-Mount

bell

Knog Oi

carrier

ACID Gravel

Product information

colour

smaragdgrey´n´prism

weight

19,3 kg

Art. No

123310

SRP*

14399 PLN

*Suggested retail price

Due to unforeseeable supply chain issues, the bike may be delivered with modifications.

More Information

Bike category of use: 1

You can find more information about Bike Classification at the following link.

More Information

100
kg

Maximum rider weight

The rider weight refers to the weight of the rider including clothing and any equipment worn on the body.

Please see the table for information on the distribution of weight across the system in conjunction with compatible accessories (luggage carriers, bike trailers, etc.).

System weight table

Geometry

	50 cm	54 cm	58 cm	62 cm
Seat tube	460	510	560	600
Top Tube Horizontal	570	586	596	607
Seat angle	74.2°	74°	73.8°	73.5°
Head tube angle	69°	70°	70°	70°
Chainstays	477	477	477	477
Head tube	152	157	177	197
Wheelbase	1125	1131	1143	1155
BB-Height to Hub	-70	-70	-70	-70
Protrusion height - 80mm	674	811	849	882
Reach	400	413	418	424
Stack	604	613	632	650

Ergonomics

	50 cm	54 cm	58 cm	62 cm
Stem length	60	80	80	90
Angle stem	6°	6°	6°	6°
Handlebar width	680	680	680	680
Crank length	170	170	170	170
Length seat post	350	400	400	400
Diameter seatpost	30.9	30.9	30.9	30.9
Max. insertion depth seat post	290	250	300	300
Diameter tire maximum	733	733	733	733
Width tire maximum	52	52	52	52
