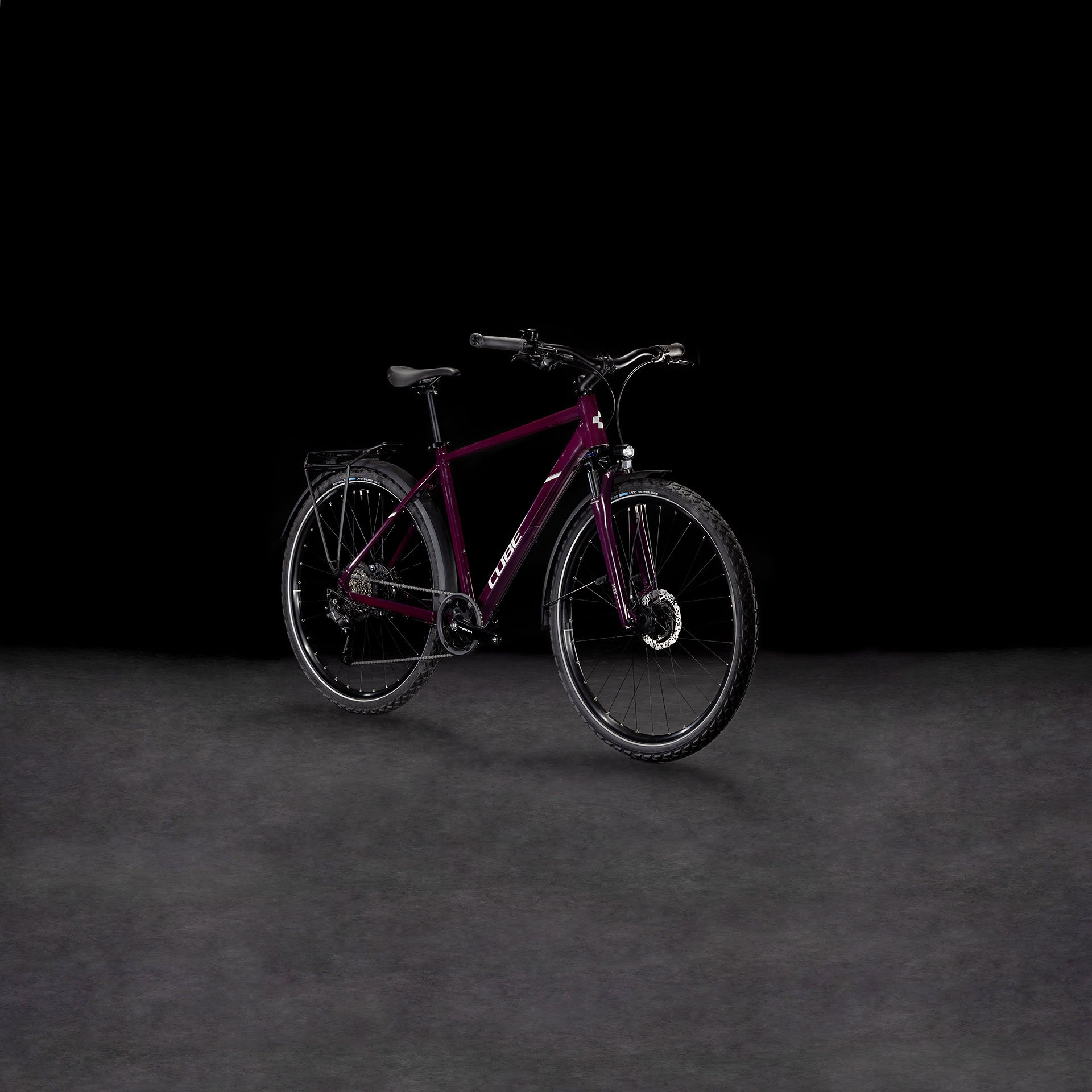

The heart of a great bicycle is a great frame. For the Nature Allroad we began with double-butted aluminium tubes – which save weight without affecting strength – and used Smooth Welding at the main tube joints for an elegant finish. The result is a light, lively and comfortable frame that easily passes our stringent in-house safety tests. There's plenty of clearance for wide tyres, and we added a full set of accessories – including lighting set, mudguards, luggage carrier and kickstand – so you're all set for any ride.
Frame Material
Configuration

Frame
frame
Aluminium Superlite, Trekking Cross, Taper, Double Butted
size
Classic: XS / 46cm, S / 50cm, M / 54cm, L / 58cm, XL / 62cm
Suspension
Suspension fork
SR Suntour NEX HLO, 63mm, Lockout
Drivetrain & brakes
brake system
Shimano BR-MT200, Hydr. Disc Brake (160/160)
rear derailleur
Shimano Essa RD-U2000-GS, 8-Speed
shifters
Shimano SL-M315, Rapidfire-Plus
bottom bracket
Thun Paso-ML, 68mm, BSA
crankset
Shimano Essa FC-U2000-1, 40T
cassette
Shimano CS-HG400, 11-45T
chain
KMC Z8
Cockpit
headset
VP Integrated, Top 1 1/8", Bottom 1 1/2"
Stem
CUBE Performance Stem Pro, 31.8mm
handlebar
CUBE Comfort Trail Bar, 700mm
grips
ACID Travel Comfort
Wheels
rims
CUBE EX25, 32H, Disc
front hub
Shimano DH-3D37, Hub Dynamo, QR, Centerlock
rear hub
Shimano FH-QC300-HM, QR, Centerlock
tyres
Schwalbe Land Cruiser, Active, 50-622
Finishing kit
saddle
ACID Sequence Pro 160
seat post
CUBE Performance Post, 27.2mm
pedals
CUBE PP MTB
front light
CUBE Shiny 50
rear light
ACID Mudguard Rear Light PRO-D, 6V, AC
kickstand
CUBEstand Cmpt
mudguards
ACID 65 BB-Mount
bell
Easy Bell
carrier
ACID Semi-Integrated Carrier, ACID RILink Adapter Compatible
Product information
colour
amarone´n´lunar
weight
17 kg
Art. No
861110
Because of ongoing problems in the delivery chain, the bike can be delivered with modifications.
More Information
Bike category of use: 2
You can find more information about Bike Classification at the following link.
140
kg
Maximum system weight
The system weight describes the maximum permissible total mass. This must not be exceeded under any circumstances.
Please see the table for information on the distribution of weight across the system in conjunction with compatible accessories (luggage carriers, bike trailers, etc.).
Geometry
46 cm | 50 cm | 54 cm | 58 cm | 62 cm | |
Seat tube | 440 | 480 | 520 | 560 | 600 |
Top Tube Horizontal | 570 | 585 | 600 | 615 | 622 |
Seat angle | 74.5° | 73.5° | 73° | 73° | 73° |
Head tube angle | 70.5° | 71° | 71° | 71° | 71° |
Chainstays | 470 | 470 | 470 | 470 | 470 |
Head tube | 105 | 120 | 140 | 155 | 170 |
Wheelbase | 1105 | 1104 | 1114 | 1130 | 1137 |
BB-Height to Hub | 60 | 60 | 60 | 60 | 60 |
Protrusion height - 80mm | 772 | 805 | 838 | 867 | 897 |
Reach | 405 | 404 | 407 | 418 | 421 |
Stack | 595 | 612 | 630 | 645 | 659 |
Ergonomics
46 cm | 50 cm | 54 cm | 58 cm | 62 cm | |
Stem length | 90 | 90 | 90 | 90 | 90 |
Angle stem | 6° | 6° | 6° | 6° | 6° |
Handlebar width | 700 | 700 | 700 | 700 | 700 |
Crank length | 175 | 75 | 175 | 175 | 175 |
Length seat post | 350 | 350 | 350 | 350 | 350 |
Diameter seatpost | 27.2 | 27.2 | 27.2 | 27.2 | 27.2 |
Diameter tire maximum | 742 | 742 | 742 | 742 | 742 |
Width tire maximum | 50 | 50 | 50 | 50 | 50 |
All values are given in millimetres or degrees.
