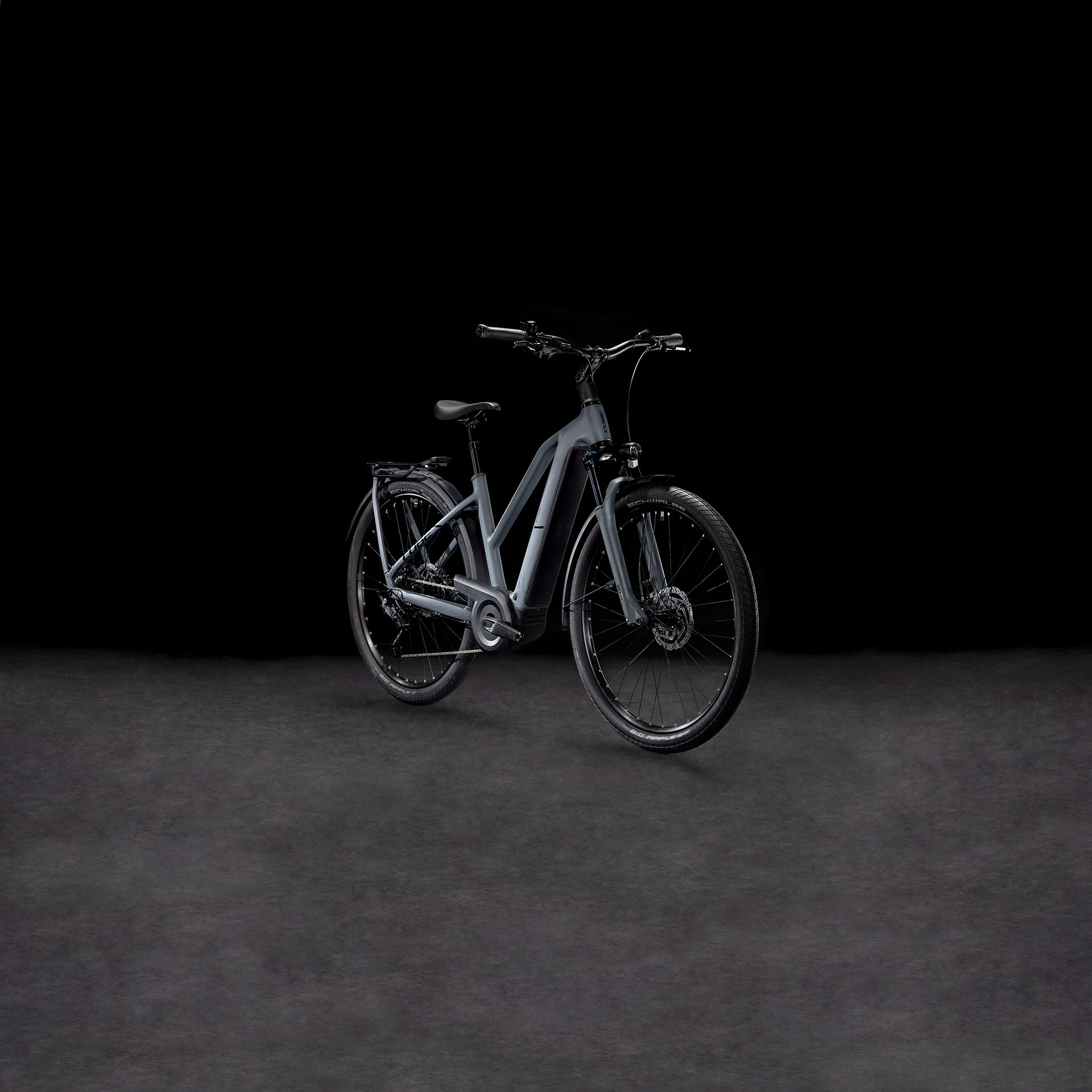

KATHMANDU HYBRID
ONE 600

SRP* 39290 SEK

ArtNo. 812051

shadowgrey´n´black

Comparison

800Wh

CREATING
MEMORIES

You'll instantly recognise the Kathmandu Hybrid from CUBE as a piece of timelessly elegant bicycle design, but it's stuffed full of innovation and clever touches. The neatly housed Bosch CX drive and 600 Wh PowerTube battery are just the start. Efficient Comfort Geometry is designed around a 100mm travel suspension fork, for better control even when the going gets rough. Integrated cables complement the frame's clean lines and help reduce the need for maintenance, while a UDH dropout is tough, versatile and future-proof. And, of course, there's an integrated chainguard mount and our tough, sturdy and exceptionally neat Integrated Carrier 3.0, so you can carry everything you need for your adventures.

Frame Material

Aluminium Superlite

Battery

600 Wh

There are few better ways to experience the wider world than on two wheels, and now it's simpler than ever. With its powerful Bosch pedal assistance, 600 Wh battery and elegant, practical CUBE design, the Kathmandu Hybrid ONE 600 is ready to help you find new experiences.

KATHMANDU HYBRID

The Fully Integrated Battery system tucks the power of Bosch's battery out of sight, safely inside the confines of your bike's downtube. Hidden beneath a splash and dust-proof cover and secured with a lock to prevent theft, it allows us to design beautiful e-bike frames that are as brilliantly functional as they are good to look at.

Our Integrated Seatpost Clamp is all part of our quest to sweat the details, so that you can reap the rewards. Its minimalist design suits the frame's pared-back aesthetic. And, of course, that's important – because why wouldn't you want your bike to look great? But it also saves a few grammes too. And that matters just as much...

The Integrated Carrier 3.0 is the next level in system integration: from the side, it's hard to tell where the luggage carrier ends and the mudguard begins. But it doesn't just look good, it's also incredibly strong and rigid. With an integrated spring clamp and CUBE Rilink ready adaptor for mounting bags and baskets, it transforms your CUBE into an adaptable and versatile load carrier.

In many ways the battery is the heart of an e-bike. That's why, with our Modular Battery System, we've made a setup that's easy to use. You can charge the battery on or off the bike, and we've made room for even high capacity batteries. You'll wonder how you ever managed without it.

A wider hub makes a stiffer wheel, and a stiffer wheel means better handling. That's the thinking behind the Boost 148 rear hub standard, which allows wider flange spacing for better wheel performance without impacting on shifting accuracy or drivetrain efficiency. Simply put, you can go faster and harder with better handling and stronger wheels.

Cables connect your handlebar controls to vital components like gears and brakes, but there's no need for them to get in your way. With Internal Cable Routing we've reduced clutter and maintenance by running cables through the frame, keeping them out of the way of dust and water contamination – or damage from abrasion – as well as cleaning up your bike's appearance.

Carrying your belongings, shopping or work bag just got a little easier. Our new HIC (Headset Integrated Carrier) fits simply, neatly and very securely on the front of your CUBE bike to add accessible, stable and versatile load-carrying capacity. With the ability to safely accommodate a Eurobox of 300mm x 400mm, up to 20kg in weight and RILink accessories, you'll wonder how you managed without.

With our specially designed Efficient Comfort Geometry, cycling is a simple pleasure. Whether you're popping across town or exploring further afield, taking a ride with the family or with friends, for work or for pleasure, we've created a ride experience that will have you coming back for more.

One standard for all: gear hanger replacement made easy thanks to the innovative Universal Derailleur Hanger. With a design that includes some room for pivoting to help prevent chain jams, it improves shifting performance and works with all drivetrains. Best of all, it's a standard part that is available anywhere.

Gravity Casting moulds liquid aluminium into highly complex frame sections, resulting in extremely strong structures that can better withstand stress. For example, with our Hybrid models we're able to produce a motor mount that's optimised to cope with the loads placed on it in this specialised application, without adding unnecessary weight or sacrificing strength.

CUBE's Aluminium Superlite starts with heat-treated 6061 aluminium, which has the qualities – high fatigue resistance, good stiffness, low weight and excellent strength – that are important for a bicycle frame. Then we make it into double butted tubes, to reduce weight without sacrificing any of its strength. The result? Exceptionally light, strong and tough frames.

A bicycle frame is an amazing piece of engineering. And now, with our Smooth Welding technology, we're able to give it the elegant appearance it thoroughly deserves. With no visible weld beads, one tube appears to flow seamlessly into the next.

Frame

frame

Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Boost148, Fully Integrated Battery, Integrated Carrier 3.0, Advanced Internal Cable Routing, 1.5 Headtube

size

Trapeze: XS / 46cm, S / 50cm, M / 54cm, L / 58cm

Suspension

Suspension fork

SR Suntour NX1-32 LO Air, Tapered, 15x110mm, 100mm

E-bike system

drive unit

Bosch Performance Line CX 85Nm (BDU38) ab Juli 2025 bis zu 100 Nm/ from July 2025 up to 100Nm

Remote

Bosch Purion 200 w/ Integrated Display

battery

Bosch PowerTube 600

charger

Bosch 2A

Drivetrain & brakes

brake system

Shimano BR-MT200, Hydr. Disc Brake (180/180)

rear derailleur

Shimano Cues RD-U6000-GS, 10-Speed

shifters

Shimano Cues SL-U6000, Rapidfire-Plus

crankset

ACID MTB Hybrid Pro

cassette

Shimano Cues CS-LG300, 11-48T

chain

KMC eGlide

Cockpit

headset

ACROS AZF-1035, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), HIC

Stem

CUBE Comfort Stem Pro, 31.8mm, Adjustable

handlebar

CUBE Comfort Trail Bar, 700mm

grips

ACID Travel Comfort

Wheels

rims

CUBE EX25, 36H, Disc, Tubeless Ready

front hub

CUBE Engineered By Newmen, 15mm, Boost, Centerlock

rear hub

Shimano FH-MT400-B, 12mm, Boost, Centerlock

tyres

Schwalbe Big Apple, Active, 55-622

Finishing kit

saddle

ACID Sequence Pro Plus

seat post

CUBE Suspension Seatpost HD, 31.6mm

pedals

ACID PP MTB

front light

ACID Front Light PRO-E 60 X-Connect, 12V, DC

rear light

ACID Mudguard Rear Light PRO-E, 12V, DC

kickstand

ACID FM Pure Kickstand

mudguards

ACID 65 Integrated Carrier 3.0

bell

Easy Bell

carrier

ACID Integrated Carrier 3.0, CUBE Adapter Compatible

Product information

colour

shadowgrey´n´black

weight

26,6 kg

Art. No

812051

SRP*

39290 SEK

*Suggested retail price

Because of ongoing problems in the delivery chain, the bike can be delivered with modifications.

More Information

Bike category of use: 2

You can find more information about Bike Classification at the following link.

More Information

110
kg

Maximum rider weight

The rider weight refers to the weight of the rider including clothing and any equipment worn on the body.

Please see the table for information on the distribution of weight across the system in conjunction with compatible accessories (luggage carriers, bike trailers, etc.).

System weight table

Geometry

	46 cm	50 cm	54 cm	58 cm
Seat tube	420	460	510	560
Top Tube Horizontal	590	590	610	630
Seat angle	73.5°	73.5°	73°	73°
Head tube angle	68°	68°	68.5°	68.5°
Chainstays	499	499	499	499
Head tube	110	110	125	140
Wheelbase	1173	1173	1182	1204
BB-Height to Hub	-68	-68	-68	-68
Protrusion height - 80mm	769	777	817	850
Reach	401	401	410	426
Stack	638	638	654	668

Ergonomics

	46 cm	50 cm	54 cm	58 cm
Stem length	65	65	80	80
Handlebar width	700	700	700	700
Crank length	175	175	175	175
Length seat post	300	300	300	300
Diameter seatpost	31.6	31.6	31.6	31.6
Max. insertion depth seat post	270	280	280	280
Diameter tire maximum	750	750	750	750
Width tire maximum	56	56	56	56

All values are given in millimetres or degrees.

The Kathmandu Hybrid ONE 600 from CUBE brings the world outside your front door just that little bit closer. With the neatly integrated Bosch CX drive and 600 Wh battery delivering up to 85 Nm of pedal assistance, we've taken the hard work out of exploring. Shimano's Cues 10-speed gears are easy to use, so you're always pedalling comfortably. Speaking of which, we fitted a Suntour air suspension fork, suspension seatpost and adjustable stem – all designed to make your life on the road easier. Powerful Shimano hydraulic disc brakes help keep you safe, whatever the weather is doing. And the strong, adaptable Integrated Carrier 3.0 and full complement of included accessories – including mudguards and lighting set – are all you need for pedal-powered adventure.
