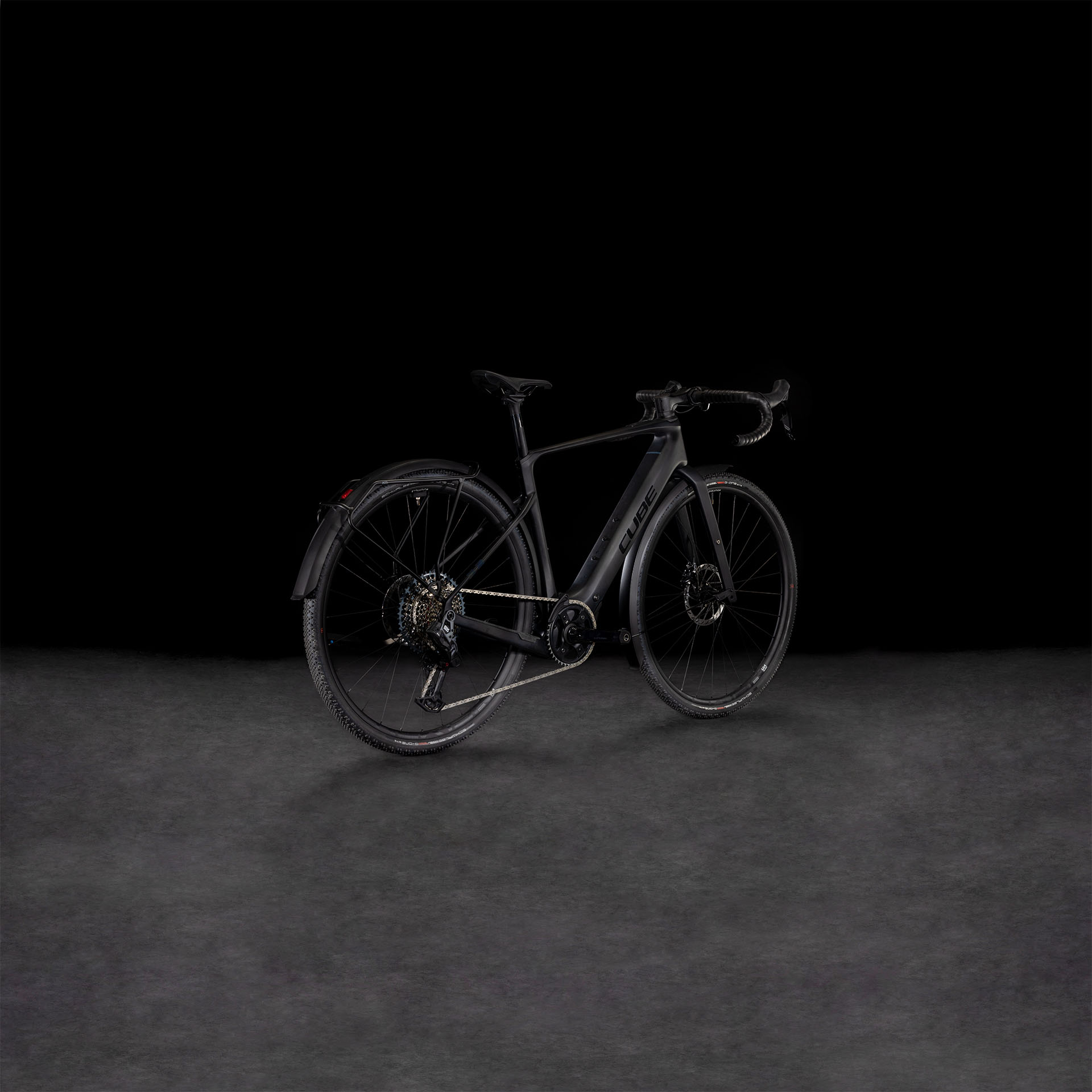

NUROAD HYBRID C:62
SLX FE 400X

SRP* 65490 NOK

ArtNo. 817350

Comparison

GO-ANYWHERE
ADVENTURE

There's more to making a really practical frame than bolting on mudguards and a carrier, although we've done that too. The Nuroad Hybrid C:62 FE's elegantly sculpted C:62® frame is full of neat touches, like the ability to run up to 50mm tyres even with the included mudguards. The full carbon fork has carrier mounts, we added a direct mount lightweight chain guide, there's a flat mount kickstand interface, and the rear end is equipped with Boost axle and UDH gear hanger. As for the Bosch drive system, it's PowerMore-ready for a +250Wh battery booster pack and the control unit is neatly incorporated inside the top tube, with a separate Mini Remote on the handlebar. We sweated the detail, so all you need to do is ride.

Frame Material

C:62®

Battery

400 Wh

Tire clearance

50 mm

Nothing says freedom like a two-wheeled adventure, and few bikes are better equipped for adventure than the Nuroad Hybrid C:62 SLX FE. With mudguards and carrier included, the lightweight C:62® carbon frame, premium components and new lighter Bosch SX drive with 400Wh battery are all you need for exploring.

NUROAD HYBRID C:62

Not all carbon is created equal. With our C:62® carbon we increased the high modulus fibre content, then we reinforced the resulting material with nanoparticles incorporated into the bonding resin. Which is all just a fancy way of saying it's extremely strong, light and durable.

Gear and brake cables need a way to get from handlebar controls to frame – but what if there was no need for holes near the head tube? We came up with a design that takes cables into the frame via the headset, maintaining full internal cable routing but making it even neater and less obtrusive.

Bosch SX technology incorporates a new, lighter and more configurable battery setup. To make the most of the weight saving, we've integrated the new battery fully into the down tube. This means we can position it optimally for the best weight distribution and handling, as well as saving more weight by building a down tube that's precisely the right size to fit, and without the need for an access hatch. And the Power More option means you can add an additional 250Wh battery quickly and simply, for extra range. It's the best of both worlds.

A bicycle is such a versatile tool. That's why many riders add accessories like a luggage carrier, mudguards, kickstand and lights. But with our Fully Equipped range you don't have to, because we've already taken care of all of that. With carefully selected accessories that match and integrate with each bike, you're all set for any journey from the weekday commute to a longer tour.

A wider hub makes a stiffer wheel, and a stiffer wheel means better handling. That's the thinking behind the Boost 148 rear hub standard, which allows wider flange spacing for better wheel performance without impacting on shifting accuracy or drivetrain efficiency. Simply put, you can go faster and harder with better handling and stronger wheels.

Adventure sometimes demands different kit. That's where our low rider rack mounts come in. Designed to accept an optional fork rack, they're a great way to carry up to 10kg of additional weight for extended tours. Not only that but carrying some of your luggage over the front wheel helps improve weight distribution and handling. Win, win.

For gravel epics – or races – into the back country and beyond, our Gravel Endurance Geometry is designed with you in mind. With a ride position optimised for long days in the saddle and frame angles and dimensions geared towards the perfect balance of agility and stability, it's all you need for off-road adventure.

One standard for all: gear hanger replacement made easy thanks to the innovative Universal Derailleur Hanger. With a design that includes some room for pivoting to help prevent chain jams, it improves shifting performance and works with all drivetrains. Best of all, it's a standard part that is available anywhere.

With our Advanced Twin Mold process we use two precisely manufactured forms for our C:62®, C:68® and C:68X® carbon frames. The first form is to ensure an accurate layup. The second, inner form keeps every individual fibre precisely where it needs to be while the frame cures. The result is a significantly lighter, stronger frame, with fibre density tailored to anticipated loadings at specific points.

Frame

frame

C:62® Advanced Twin Mold, Gravel Endurance Geometry, Advanced Internal Cable Routing, Flat Mount Disc, Fender/Rack & Kickstand Option, Boost 148, UDH™, Fully Integrated Battery

size

XS, S, M, L, XL

Rigid fork

CUBE C:62® Technology, 1 1/2" - 1 1/2" Tapered, Flat Mount Disc, Fender & Lowrider Mounts, 12x100mm

E-bike system

drive unit

Bosch Drive Unit Performance SX (55Nm) Cruise (250 Watt), Smart System

Remote

Bosch System Control, incl. Mini Remote

battery

Bosch CompactTube 400

charger

Bosch 4A

Drivetrain & brakes

shift/ brake levers

Sram Rival eTap AXS™

brake system

Sram Rival HRD, Hydr. Disc Brake (180/180)

rear derailleur

Sram GX Eagle AXS™ Transmission, 12-Speed, Electronic Shifting System

crankset

e*thirteen Helix Race Alloy e*spec Crank, 42T

cassette

Sram XS-1275, 10-52T

chain

Sram GX Eagle™ Transmission

chain guide

Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate

Cockpit

headset

ACROS, Top Integrated 1 1/2" w/ Advanced Integrated Cable Routing, Bottom Integrated 1 1/2"

Stem

CUBE CIS Stem w/ Cable Routing

handlebar

Easton EC70 AX Gravel, Carbon

handlebar tape

ACID Bartape CC 2.5

Wheels

wheelset

Newmen Evolution SL X.R.25

tyres

Schwalbe G-One Bite Evo, SuperGround, Kevlar, 45-622

Finishing kit

saddle

Natural Fit Nuance

seat post

Newmen Advanced, Carbon, 27.2mm

front light

ACID Front Light PRO-E 110, 5-16V, DC

rear light

ACID Mudguard Rear Light PRO-E, 12V, DC

kickstand

ACID FM Pure Kickstand

mudguards

ACID 60 BB-Mount

bell

ACID Alpha

carrier

ACID Gravel

Product information

colour

carbon´n´glossy

weight

15,2 kg

Art. No

817350

SRP*

65490 NOK

*Suggested retail price

Because of ongoing problems in the delivery chain, the bike can be delivered with modifications.

More Information

Bike category of use: 2

You can find more information about Bike Classification at the following link.

More Information

100
kg

Maximum rider weight

The rider weight refers to the weight of the rider including clothing and any equipment worn on the body.

Please see the table for information on the distribution of weight across the system in conjunction with compatible accessories (luggage carriers, bike trailers, etc.).

System weight table

Geometry

	XS	S	M	L	XL
Seat tube	430	460	490	510	540
Top Tube Horizontal	522	537	560	575	592
Seat angle	75.5°	74.7°	73.9°	73°	73°
Head tube angle	69.5°	70.5°	71.5°	72°	72.5°
Chainstays	453	453	453	453	453
Head tube	95	112	145	164	187
Wheelbase	1053	1052	1059	1060	1072
BB-Height to Hub	70	70	70	70	70
Protrusion height - 80mm	740	773	804	825	857
Reach	387	388	393	392	402
Stack	524	544	579	599	623

Ergonomics

	XS	S	M	L	XL
Stem length	80	80	90	100	100
Handlebar width	420	440	440	460	460
Crank length	165	165	165	170	170
Length seat post	350	350	350	350	350
Diameter seatpost	27.2	27.2	27.2	27.2	27.2
Diameter tire maximum	728	728	728	728	728
Width tire maximum	50	50	50	50	50

All values are given in millimetres or degrees.

Pack up what you need and head off into unknown territory with the Nuroad Hybrid C:62 SLX FE. We fitted mudguards and a luggage carrier, so you're all set for any bikepacking adventure. The lightweight Bosch SX drive and 400Wh battery – with optional PowerMore 250Wh booster pack – are neatly incorporated into the svelte C:62® carbon frame. We chose Sram's GX Eagle Transmission with 12 gears for its huge range, durability and super-precise electronic shifting. Newmen Evolution SL X.R.25 wheels and Schwalbe G-One Bite 45mm tyres combine great grip, toughness and low weight. And Sram's powerful Rival AXS hydraulic disc brakes ensure you're always in full control.
