EXPAND
YOUR HORIZONS

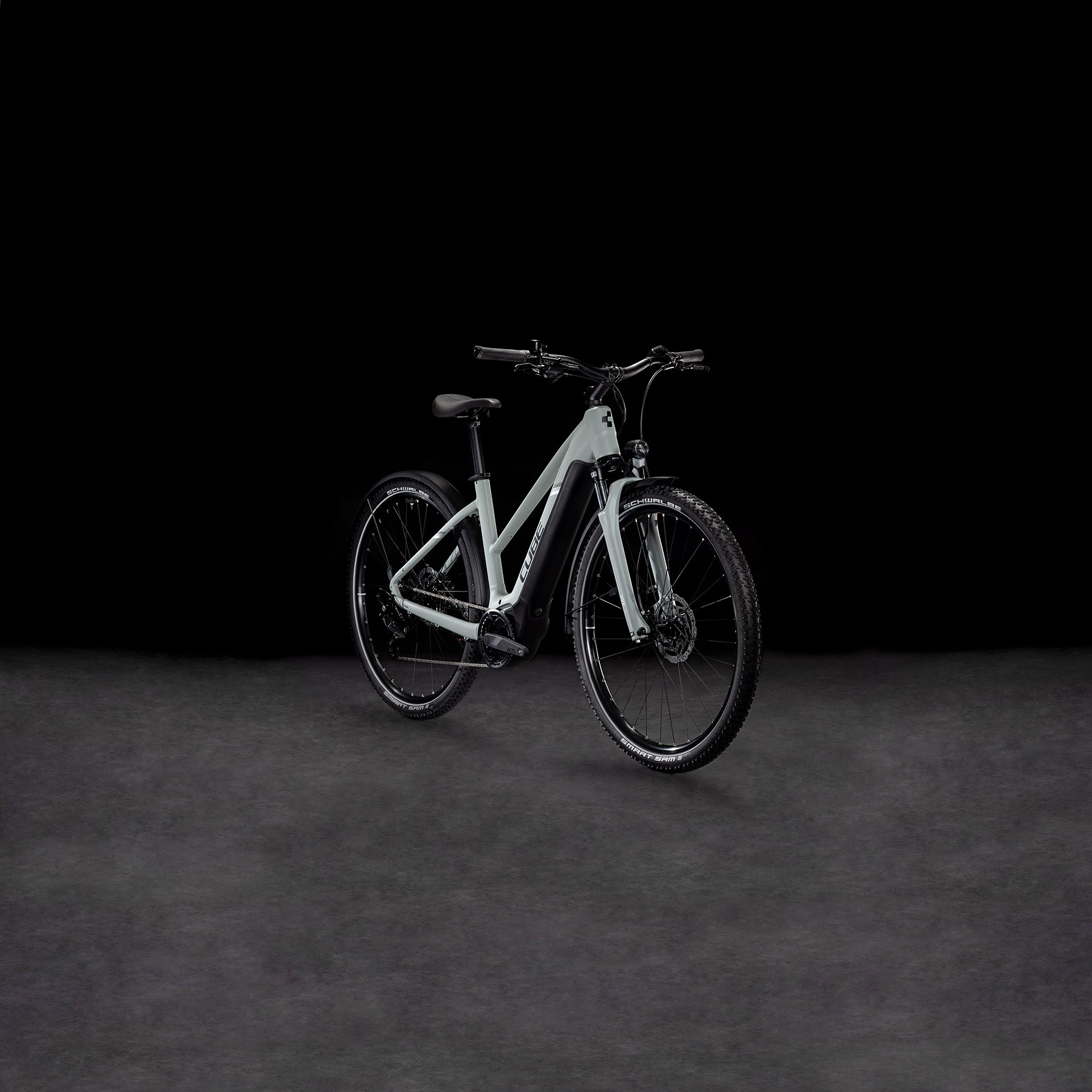

Lehet, hogy úgy érzi, mintha már látta volna, de a Nuride Hybrid Performance elegáns Trapez váza néhány ügyes húzást rejt. Természetesen van egy erős Bosch Performance motor, Bosch smart rendszerrel és egy 625Wh-s PowerTube akkumulátorral - így élvezheted a könnyű, egyenletes pedálozást. Felszereltünk egy 63 mm-es rugóvillát, amely még akkor is nagyobb kontrollt és kényelmet biztosít, ha az útfelület egyenetlen, az Efficient Comfort Geometry pedig azt teszi, amit mond. A mellékelt sárvédőkkel, lámpákkal és kitámasztóval pedig mindent megtalálsz, amire szükséged van.
Frame Material
Battery
Configuration

VÁZ
váz
Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Fully Integrated Battery, 1.5 Headtube
méret
Trapeze: XS / 46cm, S / 50cm, M / 54cm
Suspension
Teleszkópvilla
SR Suntour NVX30 Coil, 63mm
E-bike system
motor
Bosch Drive Unit Performance Generation 3 (75Nm) Cruise (250Watt), Smart System
távoli
Bosch Purion 200 w/ Integrated Display
akkumulátor
Bosch PowerTube 625
töltő
Bosch 2A
Drivetrain & brakes
fékek
Shimano BR-MT200, Hydr. Disc Brake (180/180)
hátsó váltó
Shimano Cues RD-U4000-GS, 9-Speed
váltókarok
Shimano Cues SL-U4010, Rapidfire-Plus
hajtómű
ACID Trekking Hybrid, 38T
fogaskoszorú
Shimano Cues CS-LG300, 11-46T
lánc
KMC eGlide
Cockpit
kormánycsapágy
ACROS AZF-1031, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
Stucni
CUBE Performance Stem Pro, 31.8mm
kormány
CUBE Comfort Trail Bar, 700mm
markolat
ACID Hybrid Tour
Wheels
felnik
CUBE EX25, 32H, Disc, Tubeless Ready
első agy
Shimano HB-QC300, QR, Centerlock
hátsó agy
Shimano FH-QC300-HM, QR, Centerlock
külsők
Schwalbe Smart Sam, Active, K-Guard, 54-622
Finishing kit
nyereg
ACID Sequence Pro Plus
nyeregcső
CUBE Performance Post, 30.9mm
pedál
ACID PP MTB
első lámpa
ACID Front Light PRO-E 60 X-Connect, 12V, DC
hátsó lámpa
ACID Mudguard Rear Light PRO-E, 12V, DC
kitámasztó
ACID FM Pure Kickstand
sárvédők
ACID 65 BB-Mount
belső gumi
Easy Bell
Product information
szín
swampgrey´n´black
súly
25,6 kg
Art. No
810111
ár*
2969 EUR
*Ajánlott fogyasztói ár
Because of ongoing problems in the delivery chain, the bike can be delivered with modifications.
More Information
Bike category of use: 2
You can find more information about Bike Classification at the following link.
110
kg
Maximum rider weight
The rider weight refers to the weight of the rider including clothing and any equipment worn on the body.
Please see the table for information on the distribution of weight across the system in conjunction with compatible accessories (luggage carriers, bike trailers, etc.).
Geometria
46 cm | 50 cm | 54 cm | |
Seat tube | 440 | 480 | 520 |
Top Tube Horizontal | 590 | 595 | 606 |
Seat angle | 73° | 73° | 73° |
Head tube angle | 69° | 69.5° | 69.5° |
Chainstays | 509 | 509 | 509 |
Head tube | 125 | 135 | 155 |
Wheelbase | 1158 | 1159 | 1172 |
BB-Height to Hub | 75 | 75 | 75 |
Protrusion height - 80mm | 704 | 690 | 697 |
Reach | 394 | 397 | 403 |
Stack | 626 | 638 | 656 |
Ergonomics
46 cm | 50 cm | 54 cm | |
Stem length | 90 | 90 | 90 |
Angle stem | 17° | 17° | 17° |
Handlebar width | 700 | 700 | 700 |
Crank length | 170 | 170 | 170 |
Length seat post | 300 | 300 | 300 |
Diameter seatpost | 30.9 | 30.9 | 30.9 |
Diameter tire maximum | 746 | 746 | 746 |
Width tire maximum | 56 | 56 | 56 |
All values are given in millimetres or degrees.
