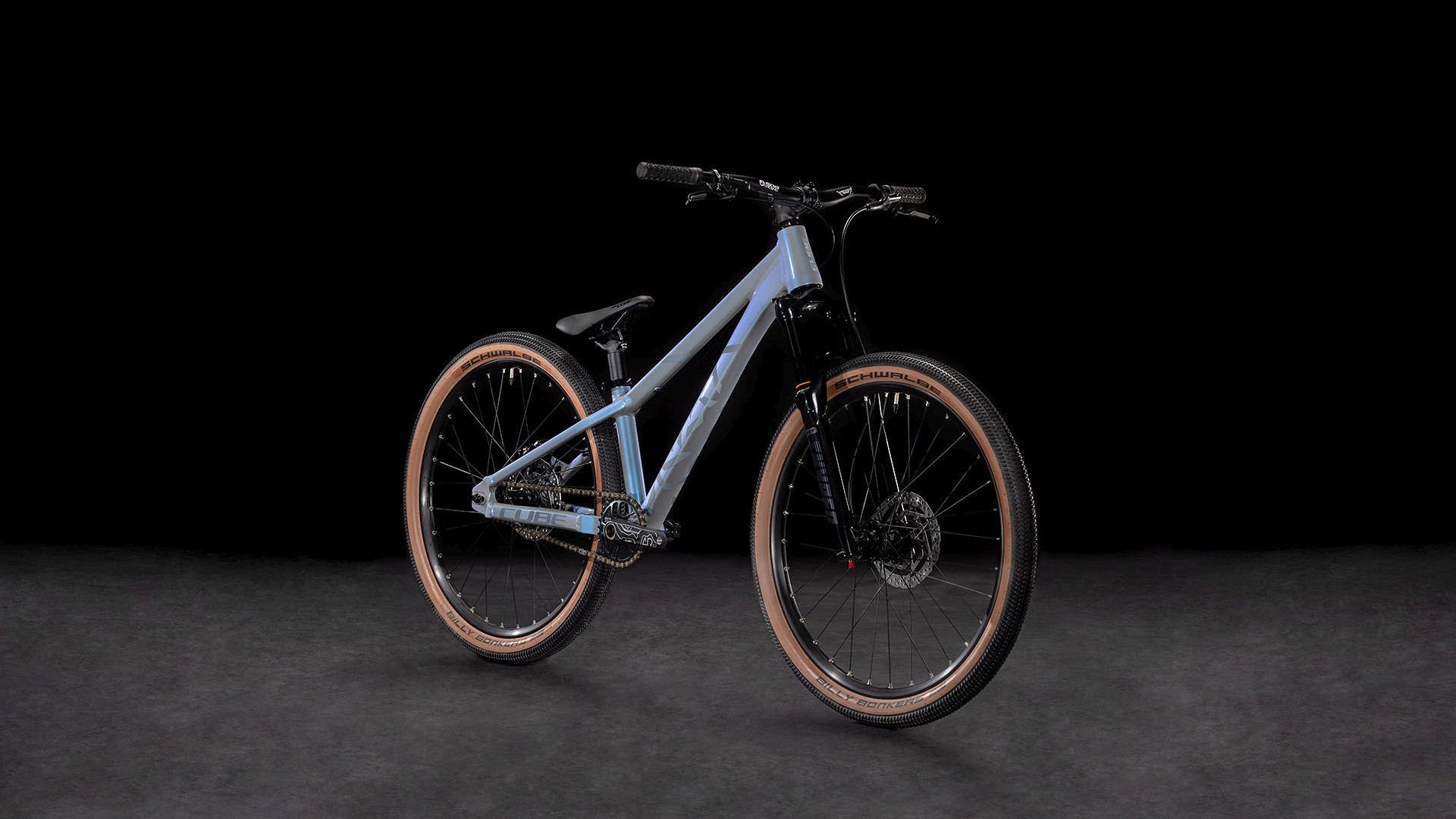

FLYING CIRCUS 240
SRP* 1099 EUR
DEFY
GRAVITY
Kids are tough on bikes. Kids who like to get air beneath their wheels are even tougher on their bikes. For the Flying Circus 240 we took all the experience we gained building our full-size jump bike, and downsized it for 24in wheels and shorter riders. It's just as stiff, strong and perfectly balanced as its bigger counterpart, so you can be confident it'll handle the rough and tumble in its stride.
Frame Material
Wheels


Frame
frame
Aluminium Lite, AMF, Tapered Headtube, BSA BB, Dirt Jump Optimized, Pumptrack Optimized, Adjustable Dropouts
size
24"
Suspension
Suspension fork
RST Snyper 24", 100mm
Drivetrain & brakes
brake system
Shimano BR-MT200, Hydr. Disc Brake (160/160)
bottom bracket
Prowheel, 68mm BSA
crankset
CUBE AR SLT, 30T, 130mm
chain
KMC Z1
Cockpit
headset
VP Integrated, Top 1 1/8", Bottom 1 1/2"
Stem
CUBE Performance Stem Pro, 31.8mm
handlebar
SDG Slater JR, 660mm
grips
SDG Slater JR
Wheels
wheelset
ACID Pro 25, 32/32 Spokes, QR/135mm Singlespeed 15T, Bolt-Axle, Tubeless Ready
tyres
Schwalbe Billy Bonkers, 24 x 2.0"
Finishing kit
saddle
CUBE Kid
seat post
CUBE Performance Post, 30.9mm
Product information
colour
hazeblue´n´reflex
weight
9,9 kg
Art. No
852300
SRP*
1099 EUR
*Suggested retail price
Due to unforeseeable supply chain issues, the bike may be delivered with modifications.
More Information
Bike category of use: 4Y
You can find more information about Bike Classification at the following link.
65
kg
Maximum rider weight
The rider weight refers to the weight of the rider including clothing and any equipment worn on the body.
Please see the table for information on the distribution of weight across the system in conjunction with compatible accessories (luggage carriers, bike trailers, etc.).
Geometry
24" | |
Seat tube | 270 |
Top Tube Horizontal | 495 |
Seat angle | 73.5° |
Head tube angle | 68° |
Chainstays | 370 |
Head tube | 106 |
Wheelbase | 950 |
BB-Height to Hub | 30 |
Reach | 337 |
Stack | 534 |
Ergonomics
24" | |
---|---|
Stem length | 40 |
Angle stem | 6° |
Handlebar width | 660 |
Crank length | 130 |
Length seat post | 300 |
Diameter seatpost | 31.8 |
Diameter tire maximum | 450 |
Width tire maximum | 51 |
All values are given in millimetres or degrees.
