EDITOR
SLX FE

SRP* 2099 EUR

ArtNo. 855411

Comparison

URBAN
VERSATILITY

Scratch beneath the surface of its familiar appearance, and you'll find there's more to the Editor FE's trapeze frame than meets the eye. Take the eccentric bottom bracket and split dropout – they're there to accommodate the super-convenient, easy-to-live-with belt drive. You'll have spotted the included mudguards, luggage carrier, kickstand and lighting set. What you can't see is the double-butted tubing, but you'll appreciate its light weight and lively ride feel. And the rigid fork completes the package.

Frame Material

Aluminium Superlite

Tire clearance

37 mm

Configuration

Full Equipped

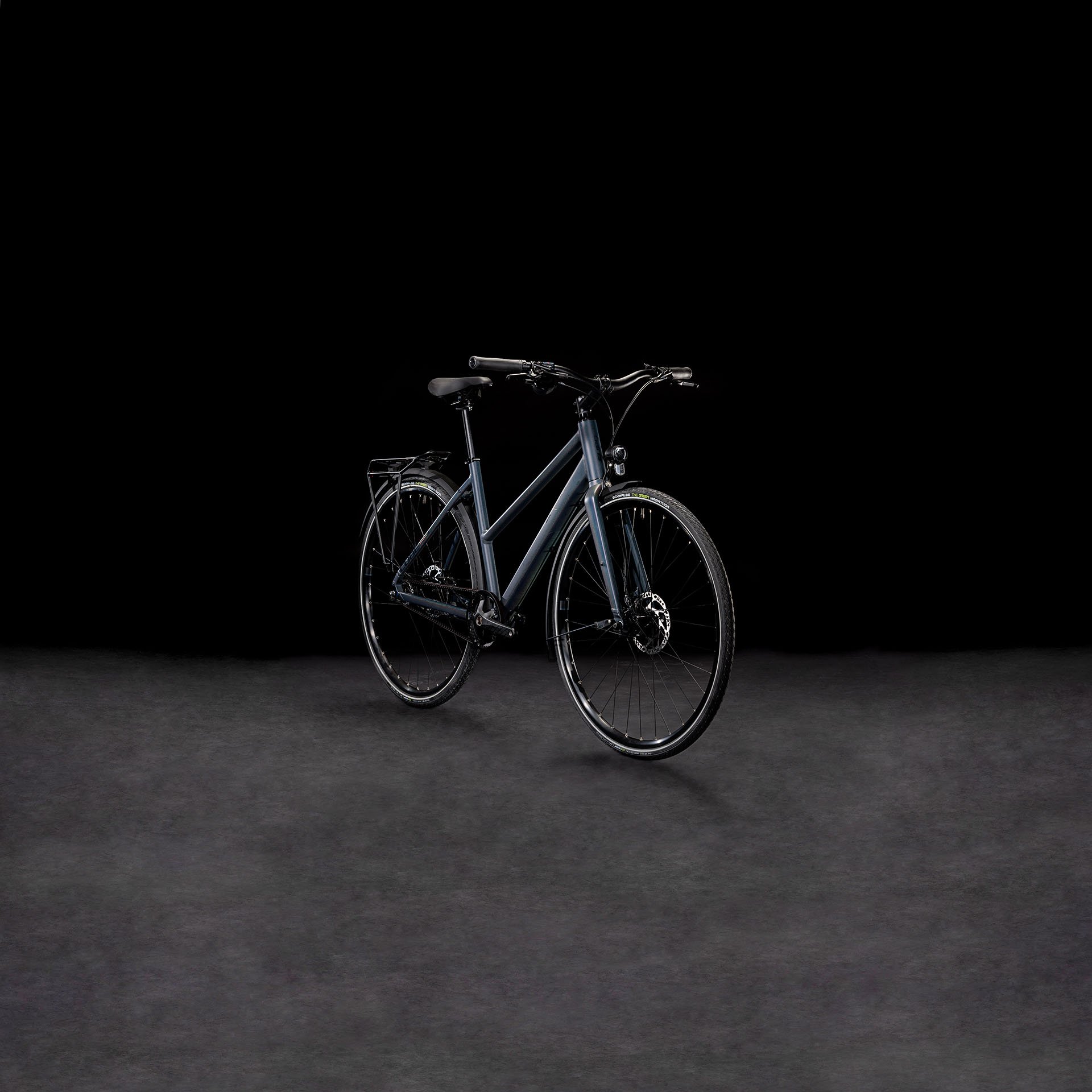

The buzz of city life without the hassle – that's the idea behind the Editor SLX FE. With its understated nightsky'n'ink colour scheme and full equipment package including lights, mudguards, kickstand and carrier, it'll make your journey across town a pleasure.

EDITOR

City streets are the natural home of our urban bikes, so we gave them geometry to match. Nimble for weaving safely through traffic, with ideal weight distribution for great grip and safe braking and cornering, Urban Geometry is precisely what you need to help you navigate the mean streets safely... and beat the gridlock.

A bicycle is such a versatile tool. That's why many riders add accessories like a luggage carrier, mudguards, kickstand and lights. But with our Fully Equipped range you don't have to, because we've already taken care of all of that. With carefully selected accessories that match and integrate with each bike, you're all set for any journey from the weekday commute to a longer tour.

Cables for your gears and brakes are essential, but you don't necessarily want to see them all the time. Our semi internal cable routing takes gear and brake cables through the down tube for a cleaner appearance, smoother shifts and reduced maintenance. So your CUBE bike looks good and continues to function as it should, and you just concentrate on enjoying the ride.

CUBE's Aluminium Superlite starts with heat-treated 6061 aluminium, which has the qualities – high fatigue resistance, good stiffness, low weight and excellent strength – that are important for a bicycle frame. Then we make it into double butted tubes, to reduce weight without sacrificing any of its strength. The result? Exceptionally light, strong and tough frames.

Frame

frame

Aluminium Superlite, Urban, Double Butted

size

Trapeze: XS / 46cm, S / 50cm, M / 54cm

Rigid fork

Aluminium Rigid Fork

Drivetrain & brakes

brake system

Shimano BR-MT410, Hydr. Disc Brake (160/160)

shifters

Shimano Alfine SL-S700

bottom bracket

Gates BSA

crankset

Gates S301 CDC, 45.5mm Beltline

sprocket

Gates CDX, 45.5mm Beltline, 22T

drive belt

Gates CDX, 113T

Cockpit

headset

VP Semi-Integrated, Top 1/18", Bottom 1 1/8", Sealed Bearing

Stem

CUBE Performance Stem Pro, 31.8mm

handlebar

CUBE Comfort Trail Bar, 700mm

grips

ACID Travel

Wheels

rims

CUBE EX25, 32H, Disc, Tubeless Ready

front hub

Shimano DH-UR700-3D, Hub Dynamo, QR, Centerlock

rear hub

Shimano Alfine SG-S7001, 11-Speed

tyres

Schwalbe Marathon Green, PerfL, 37-622

Finishing kit

saddle

Natural Fit Sequence

seat post

CUBE Performance Post, 27.2mm

pedals

CUBE PP MTB

front light

CUBE IQ-XS-Friendly N Plus

rear light

ACID Mudguard Rear Light PRO-D, 6V, AC

kickstand

CUBEstand Pro, Adjustable

mudguards

ACID 45 BB-Mount

bell

Knog Oi

carrier

ACID Semi-Integrated Carrier, ACID RILink Adapter Compatible

Product information

colour

nightsky´n´ink

weight

14,6 kg

Art. No

855411

SRP*

2099 EUR

*Suggested retail price

Because of ongoing problems in the delivery chain, the bike can be delivered with modifications.

More Information

Bike category of use: 2

You can find more information about Bike Classification at the following link.

More Information

140
kg

Maximum system weight

The system weight describes the maximum permissible total mass. This must not be exceeded under any circumstances.

Please see the table for information on the distribution of weight across the system in conjunction with compatible accessories (luggage carriers, bike trailers, etc.).

System weight table

Geometry

	46 cm	50 cm	54 cm
Seat tube	440	480	520
Top Tube Horizontal	560	570	586
Seat angle	73°	73°	73°
Head tube angle	70°	71°	72°
Chainstays	430	430	430
Head tube	145	160	180
Wheelbase	1049	1049	1055
BB-Height to Hub	50	50	50
Protrusion height - 80mm	697	703	709
Reach	393	398	407
Stack	546	564	587

Ergonomics

	46 cm	50 cm	54 cm
Stem length	90	90	90
Angle stem	17°	17°	17°
Handlebar width	700	700	700
Crank length	175	175	175
Length seat post	350	350	350
Diameter seatpost	27.2	27.2	27.2
Diameter tire maximum	713	713	713
Width tire maximum	37	37	37

All values are given in millimetres or degrees.

Fully equipped means what it says: a carrier for your possessions, mudguards to help keep you dry, lights so you can see and be seen, and a kickstand for parking. But that's just the start with the Editor SLX FE. An 11-speed Shimano Alfine hub, driven by a clean and quiet Gates carbon belt, offers a huge range of gears and practicallly no maintenance. And, with Schwalbe Marathon Green tyres and powerful Shimano hydraulic disc brakes, you can slow and stop safely whatever the weather throws at you.
