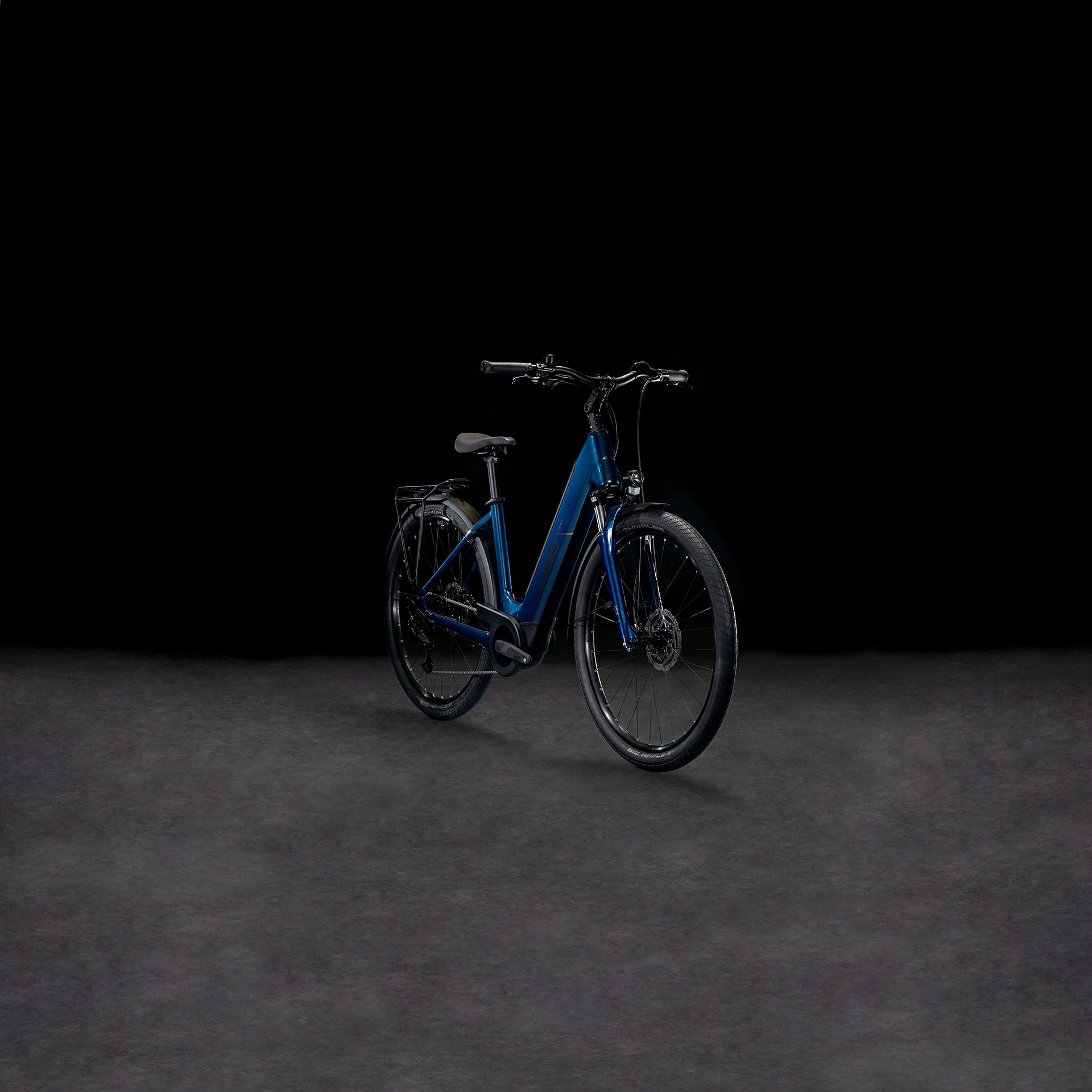

Classically understated and so simple to live with you'll wonder how you managed without it, the Touring Hybrid's Easy Entry frame is a masterpiece of form follows function. Key to it all, of course, is the Bosch Performance motor and 625Wh PowerTube battery, both so neatly integrated into the frame that they're barely noticeable. Our Efficient Comfort Geometry does exactly what it says, making every ride a pleasure. There's even a 63mm suspension fork for extra comfort on rough roads. And we've not forgotten the all-important practical touches, either. With its semi-integrated carrier, full-length mudguards, lighting system and kickstand, it has everything you need for life's adventures.
Frame Material
Battery

Frame
frame
Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Fully Integrated Battery, 1.5 Headtube, Semi Integrated Carrier
size
Easy Entry: XS / 46cm, S / 50cm, M / 54cm, L / 58cm
Suspension
Suspension fork
SR Suntour NVX30 Coil, 63mm
E-bike system
drive unit
Bosch Drive Unit Performance Generation 3 (75Nm) Cruise (250Watt), Smart System
Remote
Bosch Purion 200 w/ Integrated Display
battery
Bosch PowerTube 625
charger
Bosch 2A
Drivetrain & brakes
brake system
Shimano BR-MT200, Hydr. Disc Brake (180/180)
rear derailleur
Shimano Cues RD-U4000-GS, 9-Speed
shifters
Shimano Cues SL-U4010, Rapidfire-Plus
crankset
ACID Trekking Hybrid, 40T
cassette
Shimano Cues CS-LG300, 11-46T
chain
KMC eGlide
Cockpit
headset
ACROS AZF-1030, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
Stem
CUBE Comfort Stem Pro, 31.8mm, Adjustable
handlebar
CUBE Comfort Trail Bar, 700mm
grips
ACID Travel Comfort
Wheels
rims
CUBE EX25, 32H, Disc, Tubeless Ready
front hub
Shimano HB-QC300, QR, Centerlock
rear hub
Shimano FH-QC300-HM, QR, Centerlock
tyres
Schwalbe Big Apple, Active, 55-622
Finishing kit
saddle
ACID Sequence Pro Plus
seat post
CUBE Performance Post, 30.9mm
pedals
ACID PP MTB
front light
ACID Front Light PRO-E 60, 12V, DC
rear light
ACID Mudguard Rear Light PRO-E, 12V, DC
kickstand
ACID FM Pure Kickstand
mudguards
ACID 65 BB-Mount
bell
Easy Bell
carrier
ACID Semi-Integrated Carrier, ACID RILink Adapter Compatible
Product information
colour
deepsea´n´chrome
weight
27,2 kg
Art. No
811112
SRP*
2799 EUR
*Suggested retail price
Because of ongoing problems in the delivery chain, the bike can be delivered with modifications.
More Information
Bike category of use: 2
You can find more information about Bike Classification at the following link.
110
kg
Maximum rider weight
The rider weight refers to the weight of the rider including clothing and any equipment worn on the body.
Please see the table for information on the distribution of weight across the system in conjunction with compatible accessories (luggage carriers, bike trailers, etc.).
Geometry
46 cm | 50 cm | 54 cm | 58 cm | |
Seat tube | 440 | 480 | 520 | 560 |
Top Tube Horizontal | 590 | 600 | 610 | 620 |
Seat angle | 73° | 73° | 73° | 73° |
Head tube angle | 68.2° | 68.7° | 69.2° | 69.5° |
Chainstays | 509 | 509 | 509 | 509 |
Head tube | 160 | 160 | 160 | 160 |
Wheelbase | 1171 | 1176 | 1181 | 1185 |
BB-Height to Hub | 75 | 75 | 75 | 75 |
Reach | 386 | 396 | 406 | 415 |
Stack | 655 | 657 | 659 | 662 |
Ergonomics
46 cm | 50 cm | 54 cm | 58 cm | |
Stem length | 90 | 90 | 90 | 90 |
Angle stem | 121° | 121° | 121° | 121° |
Handlebar width | 700 | 700 | 700 | 700 |
Crank length | 170 | 170 | 170 | 170 |
Length seat post | 350 | 350 | 350 | 350 |
Diameter seatpost | 30.9 | 30.9 | 30.9 | 30.9 |
Diameter tire maximum | 746 | 746 | 746 | 746 |
Width tire maximum | 56 | 56 | 56 | 56 |
All values are given in millimetres or degrees.
