RAISE
YOUR GAME

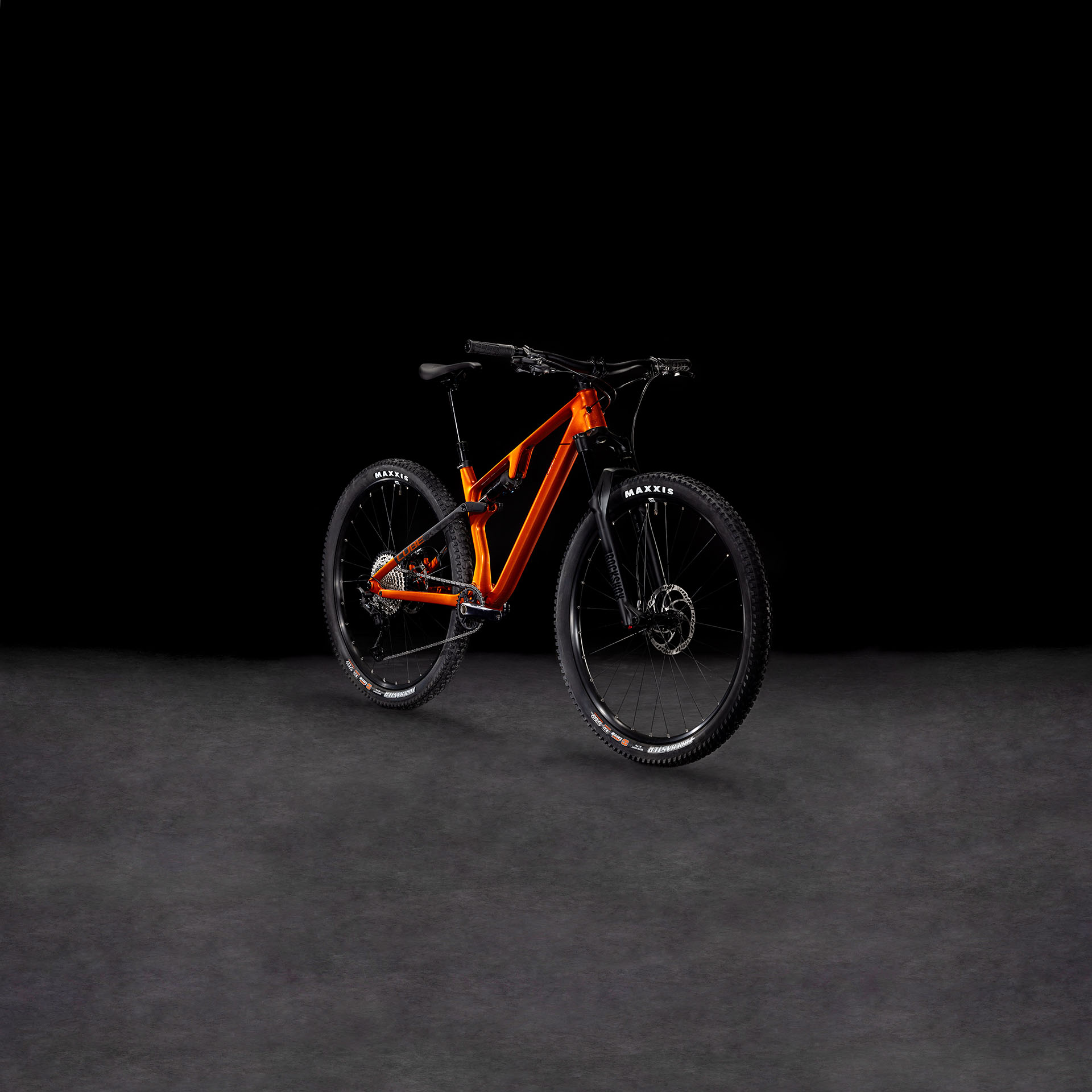

Amikor nekiláttunk a verhetetlen, pihekönnyű trail kerékpár megépítésének, a legjobb C:68X® Carbon összetételünkkel kezdtük. Karcsú csőprofilok, igényes dizájn, teljeskörű tesztelés és egy 1600g körüli váz. A 444mm-es támvillák körüli kialakítás kényelmes férőhelyet biztosít a 2.4-es külsőknek, az Acros AngleSet pedig a lapos fejcsőszög finomhangolását teszi lehetővé. A 110mm-es hátsó és a 120mm-es első rugóúttal - kombinálva a szuper készséges váz mozgékonyságával - ez e leghatékonyabb kombináció a trükkösebb szakaszok legyőzéséhez. Válaszd az AMS ONE11 C:68X modellt.
Frame Material
Frame weight

VÁZ
váz
C:68X® Monocoque Advanced Twin Mold Technology, FSP 4-Link, Boost 148, UDH™
méret
29: S, M, L, XL
Suspension
Teleszkópvilla
RockShox Recon Gold RL Air, Tapered, 15x110mm, 120mm
rugóstag
RockShox Deluxe Select+, 190x42.5mm
rugóstag perselyezés
Front: 26x8mm, Rear: 30x8mm
Drivetrain & brakes
fékek
Magura MT Thirty, Hydr. Disc Brake (180/180)
hátsó váltó
Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
váltókarok
Shimano XT SL-M8100-R
Közép csapágy
Shimano BB-MT500PA, 92mm Pressfit
hajtómű
Shimano XT FC-M8100, 32T, Boost
fogaskoszorú
Shimano SLX CS-M7100, 10-51T
lánc
Shimano CN-M6100
Cockpit
kormánycsapágy
ACROS Integrated, Top 1 1/8", Bottom 1 1/2", Fiber Inserts for Angle Adjustment
Stucni
Newmen Evolution 318.4, 31.8mm
kormány
Newmen Evolution SL 318.25, 760mm
markolat
ACID Disrupt, Soft Compound
Wheels
kerékszett
Newmen Performance 30 light/base, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready
külsők
Maxxis Forekaster, MaxxTerra/EXO, Tubeless Ready, 2.4 WT
Finishing kit
nyereg
ACID Nuance Lite
nyeregcső
CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 30.9mm
Product information
szín
electricorange´n´carbon
súly
12,9 kg
Art. No
834100
Because of ongoing problems in the delivery chain, the bike can be delivered with modifications.
More Information
Bike category of use: 3
You can find more information about Bike Classification at the following link.
115
kg
Maximum system weight
The system weight describes the maximum permissible total mass. This must not be exceeded under any circumstances.
Please see the table for information on the distribution of weight across the system in conjunction with compatible accessories (luggage carriers, bike trailers, etc.).
Geometria
Slack/Moderate | S | M | L | XL |
---|---|---|---|---|
Seat tube | 370 | 420 | 470 | 520 |
Top Tube Horizontal | 573 / 575 | 598 / 600 | 623 / 625 | 648 / 650 |
Seat angle | 73.3° / 73.1° | 73.4° / 73.2° | 73.4° / 73.2° | 73.4° / 73.2° |
Head tube angle | 66° / 66.6° | 66.1° / 66.7° | 66.1° / 66.7° | 66.1° / 66.7° |
Chainstays | 445 | 445 | 445 | 445 |
Head tube | 100 | 110 | 120 | 135 |
Wheelbase | 1141 / 1134 | 1167 / 1160 | 1193 / 1186 | 1219 / 1212 |
BB-Height to Hub | -33 / -31 | -33 / -32 | -33 / -32 | -34 / -32 |
Protrusion height - 80mm | 766 / 770 | 764 / 768 | 770 / 774 | 765 / 769 |
Reach | 401 / 400 | 423 / 422 | 445 / 444 | 466 / 465 |
Stack | 592 / 594 | 601 / 603 | 611 / 613 | 625 / 627 |
Ergonomics
S | M | L | XL | |
Stem length | 50 | 60 | 60 | 70 |
Angle stem | 6° | 6° | 6° | 6° |
Handlebar width | 760 | 760 | 760 | 760 |
Crank length | 170 | 175 | 175 | 175 |
Length seat post | 403 | 460 | 460 | 460 |
Diameter seatpost | 30.9 | 30.9 | 30.9 | 30.9 |
Stroke seatpost | 120 | 150 | 150 | 150 |
Diameter tire maximum | 758 | 758 | 758 | 758 |
Width tire maximum | 64 | 64 | 64 | 64 |
Rear suspension travel | 110 | 110 | 110 | 110 |
All values are given in millimetres or degrees.
