NUROAD HYBRID C:62
EXC 400X FE

SRP* 4699 EUR

ArtNo. 117260

blackline

Comparison

GO-ANYWHERE
ADVENTURE

There's more to making a really practical frame than bolting on mudguards and a carrier, although we've done that too. The Nuroad Hybrid C:62 FE's elegantly sculpted C:62® frame is full of neat touches, like the ability to run up to 50mm tyres even with the included mudguards. The full carbon fork has carrier mounts, we added a Direct Mount lightweight chain guide, there's a flat mount kickstand interface, and the rear end is equipped with Boost axle and UDH gear hanger. As for the Bosch drive system, it's PowerMore-ready for a +250Wh battery booster pack and the control unit is neatly incorporated inside the top tube, with a separate Mini Remote on the handlebar. We sweated the detail, so all you need to do is ride.

Frame Material

C:62®

Battery

400Wh

Tire clearance

50mm

Highlights

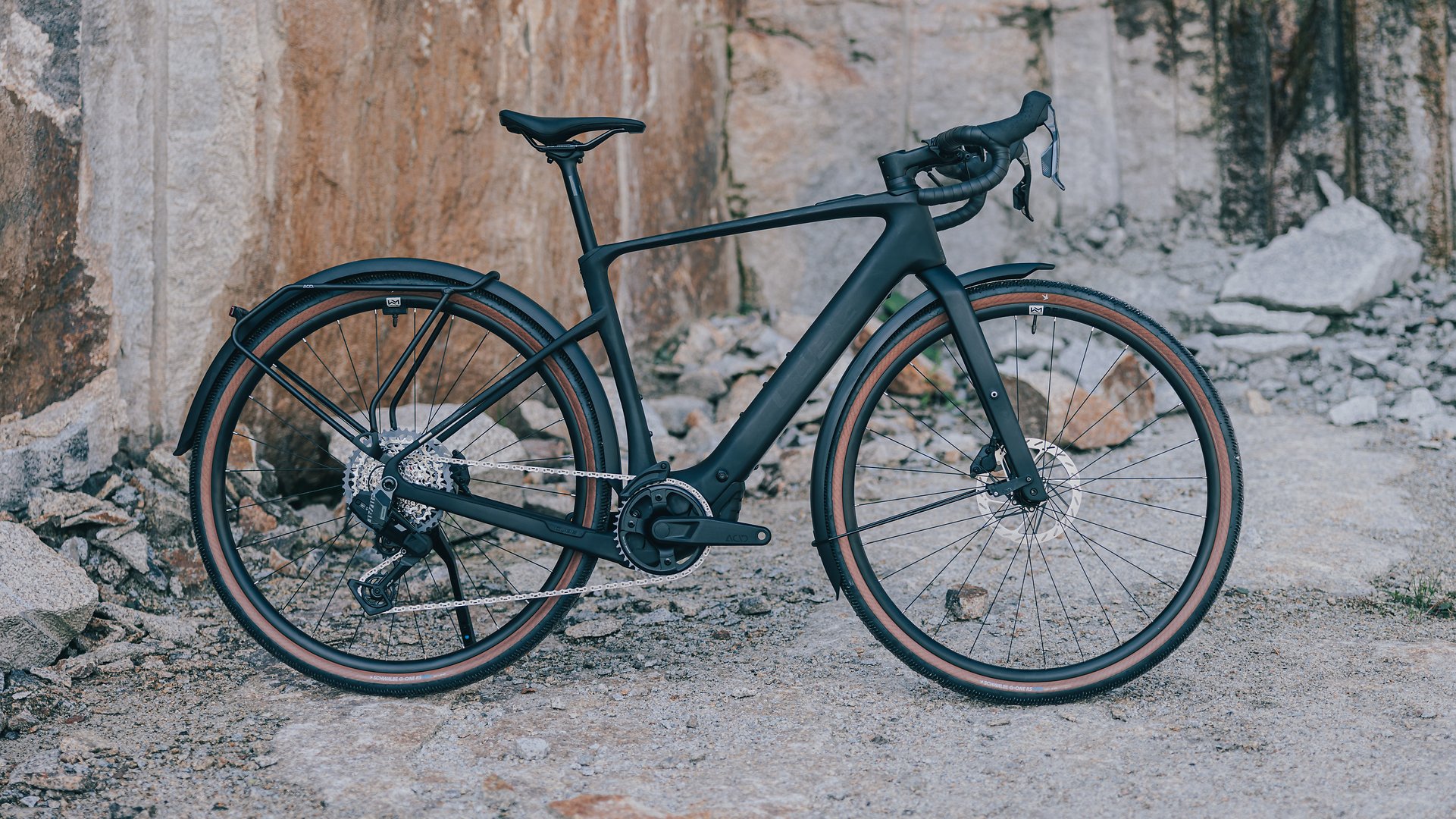

Have bike, will travel. The Nuroad Hybrid C:62 EXC FE takes road bike sophistication and adds gravel-ready ruggedness with lightweight Bosch power, CUBE carbon frame tech and a full complement of practical accessories so that you're ready for anything.

Whatever you're looking for in a rugged, adaptable and lightweight Bosch-powered bike, the Nuroad Hybrid C:62 EXC FE has it. Mudguards? Check. Rear luggage carrier? You bet. Kickstand? It's here. Built-in lighting set? Present and correct. But that's just the start. Bosch's lightweight SX motor and 400Wh battery help you on your way. The C:62® carbon frame and fork have more than enough clearance for the pair of fast-rolling Schwalbe 45mm G-One RS Pro tyres on Newmen Performance Gravel 25 wheels. Strong Sram Rival AXS hydraulic disc brakes serve up the stopping power you need, when you need it. And the Sram Rival XPLR AXS 1x13 gears deliver flawless shifts every time, combined with the range you need to take your riding further. From weekday commutes to weekend adventures, it's everything you could need.

Frame

frame

C:62® Advanced Twin Mold, Gravel Endurance Geometry, Advanced Internal Cable Routing, Flat Mount Disc, Fender/Rack & Kickstand Option, Boost 148, UDH™, Fixed Integrated Battery

Not all carbon is created equal. With our C:62® carbon we increased the high modulus fibre content, then we reinforced the resulting material with nanoparticles incorporated into the bonding resin. Which is all just a fancy way of saying it's extremely strong, light and durable.

Gear and brake cables need a way to get from handlebar controls to frame – but what if there was no need for holes near the head tube? We came up with a design that takes cables into the frame via the headset, maintaining full internal cable routing but making it even neater and less obtrusive.

Bosch SX technology incorporates a new, lighter and more configurable battery setup. To make the most of the weight saving, we've integrated the new battery fully into the down tube. This means we can position it optimally for the best weight distribution and handling, as well as saving more weight by building a down tube that's precisely the right size to fit, and without the need for an access hatch. And the Power More option means you can add an additional 250Wh battery quickly and simply, for extra range. It's the best of both worlds.

For gravel epics – or races – into the back country and beyond, our Gravel Endurance Geometry is designed with you in mind. With a ride position optimised for long days in the saddle and frame angles and dimensions geared towards the perfect balance of agility and stability, it's all you need for off-road adventure.

With our Advanced Twin Mold process we use two precisely manufactured forms for our C:62®, C:68® and C:68X® carbon frames. The first form is to ensure an accurate layup. The second, inner form keeps every individual fibre precisely where it needs to be while the frame cures. The result is a significantly lighter, stronger frame, with fibre density tailored to anticipated loadings at specific points.

size

XS, S, M, L, XL

Rigid fork

CUBE C:62® Technology, 1 1/2" - 1 1/2" Tapered, Flat Mount Disc, Fender & Lowrider Mounts, Internal Light Cable Option, 12x100mm

E-bike system

drive unit

Bosch Drive Unit Performance SX max. 60Nm (BDU31)

Remote

Bosch System Control, incl. Mini Remote

battery

Bosch CompactTube 400

charger

Bosch 2A

Drivetrain & brakes

shift/ brake levers

Sram Rival AXS E1

brake system

Sram Rival AXS E1, Hydr. Disc Brake, Flat Mount (180/180)

rear derailleur

Sram Rival XPLR AXS E1, 13-Speed

crankset

ACID MTB Hybrid Pro, 40T

cassette

Sram XPLR XG-1351, 10-46T

chain

Sram Rival

chain guide

Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate

Cockpit

headset

ACROS, Top Integrated 1 1/2" w/ Integrated Cable Routing, Bottom Integrated 1 1/2"

Stem

CUBE CIS Stem w/ Cable Routing, FPI-Link

handlebar

Newmen Advanced Gravel Bar 318, Carbon, 31.8mm

handlebar tape

ACID Bartape CC 3.0

Wheels

wheelset

Newmen Performance X.R.25, 28/28 Spokes, 12x100mm / 12x148mm, Tubeless Ready

tyres

Schwalbe G-One RS Pro, TLR, 45-622

Finishing kit

saddle

ACID Nuance Pro

seat post

Newmen Advanced, Carbon, 27.2mm

pedals

ACID PP Trekking

front light

ACID Front Light PRO-E 150 X-Connect, 12V, DC

rear light

ACID Mudguard Rear Light PRO-E, 12V, DC

kickstand

ACID FM Pure Kickstand

mudguards

ACID 60 BB-Mount

bell

Knog Oi

carrier

ACID Gravel

Product information

colour

blackline

weight

15,5 kg

Art. No

117260

SRP*

4699 EUR

*Suggested retail price

Due to unforeseeable supply chain issues, the bike may be delivered with modifications.

More Information

Bike category of use: 2

You can find more information about Bike Classification at the following link.

More Information

100
kg

Maximum rider weight

The rider weight refers to the weight of the rider including clothing and any equipment worn on the body.

Please see the table for information on the distribution of weight across the system in conjunction with compatible accessories (luggage carriers, bike trailers, etc.).

System weight table

Geometry

	XS	S	M	L	XL
Seat tube	430	460	490	510	540
Top Tube Horizontal	522	537	560	575	592
Seat angle	75.5°	74.7°	73.9°	73°	73°
Head tube angle	69.5°	70.5°	71.5°	72°	72.5°
Chainstays	453	453	453	453	453
Head tube	95	112	145	164	187
Wheelbase	1053	1052	1059	1060	1072
BB-Height to Hub	70	70	70	70	70
Protrusion height - 80mm	740	773	804	825	857
Reach	387	388	393	392	402
Stack	524	544	579	599	623

Ergonomics

	XS	S	M	L	XL
Stem length	80	80	80	90	100
Handlebar width	420	420	440	440	460
Crank length	160	160	165	165	170
Length seat post	350	350	350	400	400
Diameter seatpost	27.2	27.2	27.2	27.2	27.2
Diameter tire maximum	728	728	728	728	728
Width tire maximum	50	50	50	50	50
