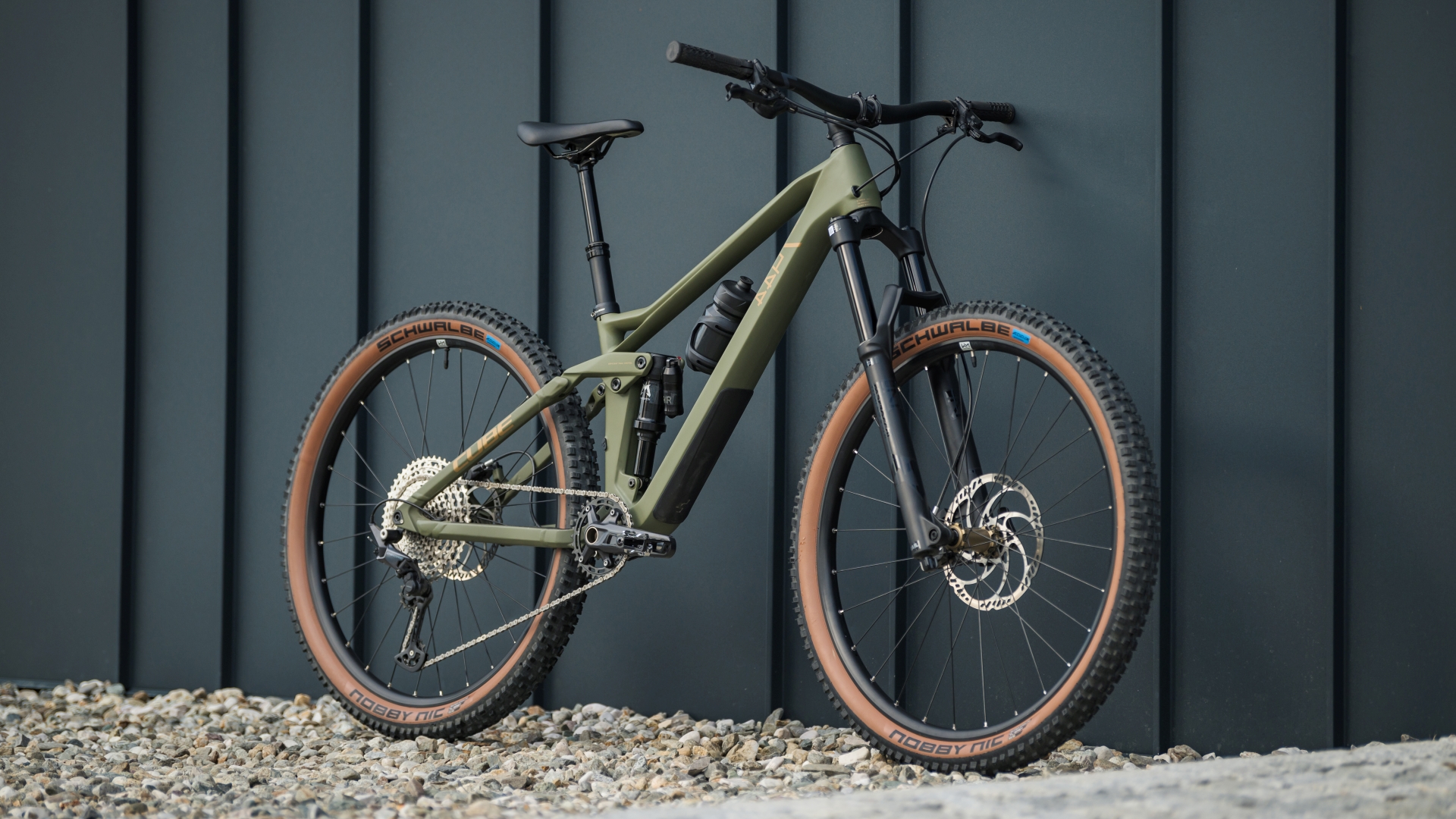

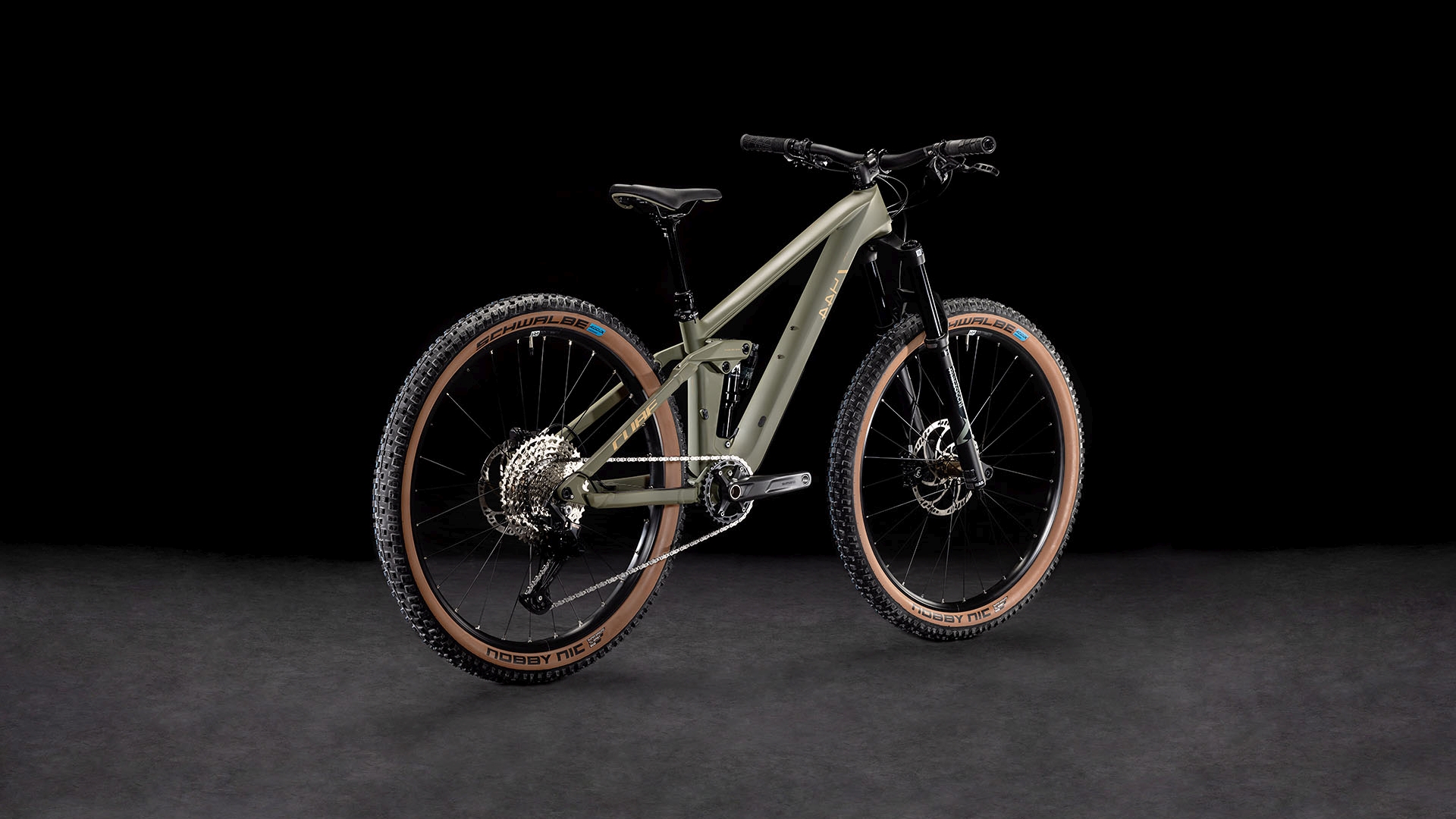

STEREO ONE44 HPC
ROOKIE

SRP* 2249 EUR

ArtNo. 852700

dustyolive´n´gold

Comparison

READY TO
SHRED

Packaging great performance, low weight and safe-but-fun handling into a smaller frame isn't always easy, but we love a challenge. The Stereo ONE44 HPC Rookie's frame combines 140mm of refined suspension kinematics with perfect proportions – in two sizes – and all the advantages of our advanced carbon construction. We added a replaceable gear hanger in case of accidents, and the internal cable routing keeps gear shifts cleaner for longer. It's the complete, pint-sized all-mountain package.

Frame Material

HPC

Wheels

27.5"

Highlights

We love a challenge, and we know our younger riders do too. That's why the Stereo ONE44 HPC Rookie is a scaled-down version of our popular Stereo ONE44 trail bike, complete with carbon frame, easily adjustable suspension and reliable components. It's every inch a trail explorer's bike.

Arguably our most ambitious bike for young riders so far, the Stereo ONE44 HPC Rookie moves the bar for kids' bikes even higher. From its perfectly proportioned carbon frame to the 150mm Marzocchi Bomber suspension fork and rear shock, it's a serious bike for having serious fun on the trails. We chose Schwalbe's dependable Nobby Nic 2.4in tyres for their grip and cushioning, complemented by the smooth power of Magura's MT Trail Sport hydraulic disc brakes. And Shimano's 1x12 Deore gears serve up a huge gear range and the peace of mind of legendary reliability. It's a winning combo.

Frame

frame

HPC Carbon Monocoque Advanced Twin Mold Technology, Aluminum 6061 T6 Rear Triangle, ATG, ETC 4-Link, ISCG Mount, Boost 148, AXH

A wider hub makes a stiffer wheel, and a stiffer wheel means better handling. That's the thinking behind the Boost 148 rear hub standard, which allows wider flange spacing for better wheel performance without impacting on shifting accuracy or drivetrain efficiency. Simply put, you can go faster and harder with better handling and stronger wheels.

Agile Trail Geometry is a development of our popular and well received Agile Ride Geometry, with a focus on riders who enjoy pushing their limits on the trails. By lowering standover height and allowing more room for the rider to move around over the bike, we've created a setup that rewards adventurous line choices. Because, after all, it's all about having fun.

Our Efficient Trail Control series works in the background so that everyone can have more fun on the trail. A low leverage ratio and linear compression rate are the technical way of saying that these bikes are very sensitive to trail obstacles, whilst remaining insensitive to pedal-induced bob and giving a full range of travel.

Our high end aluminium frame models are built using Advanced Hydroforming. This manufacturing process uses high pressure fluid to change an aluminium tube's shape, making the best use of the material's properties and maximising strength whilst miminising weight. It all helps reduce the number of welds, resulting in a frame that performs and looks better in every way.

size

XS, S

Suspension

Suspension fork

Marzocchi Bomber Z2, Sweep Adjust, 150mm

shock

Marzocchi Bomber AIR 185x52.5mm

shock hardware

Top: 54mm Trunnion Mount, Bottom: 22.2x8mm

Drivetrain & brakes

brake system

Magura MT Thirty, Hydr. Disc Brake (180/203)

rear derailleur

Shimano Deore RD-M6100-SGS, ShadowPlus, 12-Speed

shifters

Shimano Deore SL-M6100, Rapidfire-Plus

bottom bracket

Shimano BB-MT500PA, 92mm Pressfit

crankset

Shimano FC-MT511, 32T, Boost

cassette

Shimano Deore CS-M6100, 10-51T

chain

Shimano CN-M6100

Cockpit

headset

VP Integrated, Top 1 1/8", Bottom 1 1/2"

Stem

Newmen Evolution SL 318.4, 31.8mm

handlebar

CUBE Rise Trail Bar, 760mm

grips

ACID Disrupt, Soft Compound

Wheels

wheelset

Newmen Performance 30 base, 27.5", 28H

tyres

Schwalbe Nobby Nic, Super Ground, Addix Speedgrip, Kevlar, 2.4

Finishing kit

saddle

ACID Venec Lite

seat post

CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm

Product information

colour

dustyolive´n´gold

weight

14,0 kg

Art. No

852700

SRP*

2249 EUR

*Suggested retail price

Due to unforeseeable supply chain issues, the bike may be delivered with modifications.

More Information

Bike category of use: 4Y

You can find more information about Bike Classification at the following link.

More Information

65
kg

Maximum rider weight

The rider weight refers to the weight of the rider including clothing and any equipment worn on the body.

Please see the table for information on the distribution of weight across the system in conjunction with compatible accessories (luggage carriers, bike trailers, etc.).

System weight table

Geometry

	XS	S
Seat tube	350	370
Top Tube Horizontal	546	568
Seat angle	75.2°	75.2°
Head tube angle	66.5°	66.5°
Chainstays	425	425
Head tube	102	107
Wheelbase	1119	1141
BB-Height to Hub	16	16
Protrusion height - 80mm	733	735
Reach	398	418
Stack	587	592

Ergonomics

	XS	S
Stem length	50	50
Angle stem	6°	6°
Handlebar width	760	760
Crank length	170	170
Length seat post	361	403
Diameter seatpost	31.6	31.6
Stroke seatpost	100	120
Diameter tire maximum	713	713
Width tire maximum	61	61
