ADVENTURE
ON!

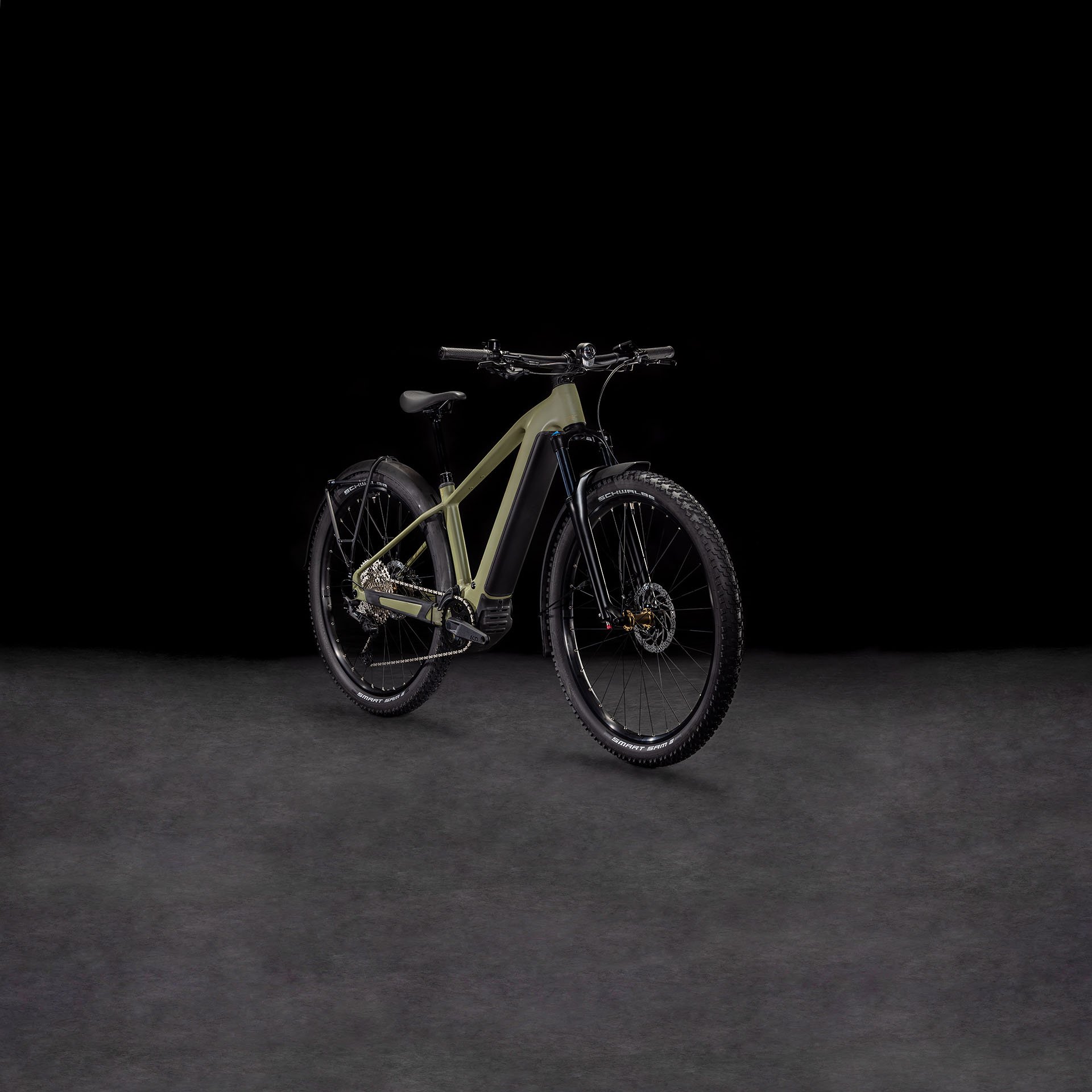

The Reaction Hybrid Allroad is full of neat touches, and we're not just talking about the included mudguards, carrier, lighting set and kickstand. With the 600 Wh PowerTube battery neatly concealed and the Bosch CX drive housed securely, its svelte lines disguise lots of clever features. It's PowerMore-ready, making it easy to add up to 250 Wh of extra battery capacity. The integrated seat clamp and cable routing complement the clean aesthetic, whilst a UDH gear hanger makes it as future-proof as possible. There's a built-in chainguide mount too and, with Size Split, it's easy to find the perfect fit for every rider. We've thought of everything, so you can just ride.

Frame Material

Aluminium Superlite

Battery

600 Wh

Sizes

Size Split
One bike, every reason. With its smooth and quiet Bosch power, 600 Wh battery and full complement of accessories – including mudguards, kickstand, carrier and integrated lights – the Reaction Hybrid Pro 600 Allroad is ready to take on any journey.
  1.
  2.
  3.
  4.
  5.
REACTION HYBRID
The Fully Integrated Battery system tucks the power of Bosch's battery out of sight, safely inside the confines of your bike's downtube. Hidden beneath a splash and dust-proof cover and secured with a lock to prevent theft, it allows us to design beautiful e-bike frames that are as brilliantly functional as they are good to look at.
Accessories like a kickstand, fenders and luggage carrier can really extend the versatility of your CUBE bike. We designed mounting points that integrate so neatly with each frame, you'll barely notice they're there – but they also provide a simple, strong and secure attachment for any future upgrades.
Gear and brake cables need a way to get from handlebar controls to frame – but what if there was no need for holes near the head tube? We came up with a design that takes cables into the frame via the headset, maintaining full internal cable routing but making it even neater and less obtrusive.
Our Integrated Seatpost Clamp is all part of our quest to sweat the details, so that you can reap the rewards. Its minimalist design suits the frame's pared-back aesthetic. And, of course, that's important – because why wouldn't you want your bike to look great? But it also saves a few grammes too. And that matters just as much...
In many ways the battery is the heart of an e-bike. That's why, with our Modular Battery System, we've made a setup that's easy to use. You can charge the battery on or off the bike, and we've made room for even high capacity batteries. You'll wonder how you ever managed without it.
The right bike should fit you perfectly. That's why we created SizeSplit. For shorter riders, the smaller 27.5in wheel standard allows us to build frames that fit well while remaining agile and sure-footed. And, for taller riders, we built a range of sizes around the fast-rolling 29er wheel standard. Whichever one you choose, you can be sure of a fit that makes your bike feel as though it was built just for you.
A wider hub makes a stiffer wheel, and a stiffer wheel means better handling. That's the thinking behind the Boost 148 rear hub standard, which allows wider flange spacing for better wheel performance without impacting on shifting accuracy or drivetrain efficiency. Simply put, you can go faster and harder with better handling and stronger wheels.
There are times when it's really useful to have a lock or a multi-tool with you, but what if you don't have a suitable bag? The Reaction Hybrid Performance frame has you covered, with dedicated mounting points below the top tube specifically designed to accommodate a compatible lock or tool. Convenient, rattle-free and always to hand...
For off-road riding you need a bike that responds quickly, but also feels stable and secure. That's where Agile Ride Geometry comes in. Offering an ideal blend of on-demand steering precision, climbing agility and descending stability, it's perfect for every rider who values their time on the trail. If you're a mountain biker, you'll instantly feel at home...
One standard for all: gear hanger replacement made easy thanks to the innovative Universal Derailleur Hanger. With a design that includes some room for pivoting to help prevent chain jams, it improves shifting performance and works with all drivetrains. Best of all, it's a standard part that is available anywhere.
Gravity Casting moulds liquid aluminium into highly complex frame sections, resulting in extremely strong structures that can better withstand stress. For example, with our Hybrid models we're able to produce a motor mount that's optimised to cope with the loads placed on it in this specialised application, without adding unnecessary weight or sacrificing strength.
CUBE's Aluminium Superlite starts with heat-treated 6061 aluminium, which has the qualities – high fatigue resistance, good stiffness, low weight and excellent strength – that are important for a bicycle frame. Then we make it into double butted tubes, to reduce weight without sacrificing any of its strength. The result? Exceptionally light, strong and tough frames.
A bicycle frame is an amazing piece of engineering. And now, with our Smooth Welding technology, we're able to give it the elegant appearance it thoroughly deserves. With no visible weld beads, one tube appears to flow seamlessly into the next.
No-one wants an oily or dirty chain anywhere near their clothes. So, since chains can get oily and dirty over time, we developed the Direct Mount chainguard. It's neat, unobtrusive and helps keep your clothes away from moving parts so that you arrive at your destination clean and fresh.
The Semi-Integrated Carrier 2.0 is so neat, you'll barely notice it's there until it's time to use it. For carrying shopping, riding to work, or for anything you need to carry, it's one of those little touches that helps make your day-to-day life a little easier.

Frame

frame

Aluminum Superlite, Gravity Casting Technology, Agile Ride Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing, Kickstand/Fender/Carrier Mounting Points, Integrated Seatclamp

size

Classic: Size Split: 27.5: S // 29: M L XL XXL

Suspension

Suspension fork

SR Suntour X1-32 LO-R Air, Tapered, 15x110mm, 120mm (27,5: 100mm)

E-bike system

drive unit

Bosch Performance Line CX 85Nm (BDU38) ab Juli 2025 bis zu 100 Nm/ from July 2025 up to 100Nm

Remote

Bosch Purion 200 w/ Integrated Display

battery

Bosch PowerTube 600

charger

Bosch 2A


Drivetrain & brakes

brake system

Shimano BR-MT200, Hydr. Disc Brake (180)

rear derailleur

Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed

shifters

Shimano Deore SL-M6100-R, Rapidfire Plus

crankset

ACID MTB Hybrid Pro, 38T

cassette

Shimano Deore CS-M6100, 10-51T

chain guide

Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate

Cockpit

headset

ACROS AZF-1034, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)

Stem

CUBE Performance Stem E-MTB 35, FPI-Link

handlebar

CUBE Rise Trail Bar 35

grips

ACID React Pro

Wheels

rims

CUBE EX30, 32H, Disc, Tubeless Ready

front hub

CUBE Engineered By Newmen, 15mm, Boost, Centerlock

rear hub

CUBE Engineered By Newmen, 12mm, Boost, Centerlock

tyres

Schwalbe Smart Sam, Active, 2.6

Finishing kit

saddle

ACID Sequence Pro 160

seat post

CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm

pedals

ACID PP MTB

front light

ACID Front Light PRO-E 150 X-Connect, 12V, DC

rear light

ACID Mudguard Rear Light PRO-E, 12V, DC

kickstand

ACID FM Pure Kickstand

mudguards

ACID 85 BB-Mount

bell

Easy Bell

carrier

ACID Carrier SIC 2.0 Rail Boost

Product information

colour

dustyolive´n´gold

weight

26,1 kg

Art. No

808320

SRP*

3399 EUR

*Suggested retail price

Because of ongoing problems in the delivery chain, the bike can be delivered with modifications.

More Information

Bike category of use: 2

You can find more information about Bike Classification at the following link.

110
kg

Maximum rider weight

The rider weight refers to the weight of the rider including clothing and any equipment worn on the body.

Please see the table for information on the distribution of weight across the system in conjunction with compatible accessories (luggage carriers, bike trailers, etc.).

Geometry

S M L XL XXL
Seat tube 370 405 450 495 545
Top Tube Horizontal 587 607 627 647 667
Seat angle 74.5° 74° 74° 74° 74°
Head tube angle 67.5° 67.5° 67.5° 67.5° 67.5°
Chainstays 456 470 470 470 470
Head tube 159 110 120 130 145
Wheelbase 1157 1176 1198 1218 1240
BB-Height to Hub 46 65 65 65 65
Protrusion height - 80mm 755 778 782 787 824
Reach 409 420 437 455 471
Stack 646 653 662 674 685
Stack Reach BB-Height to Hub Wheelbase Head tube Chainstays Head tube angle Seat angle Top Tube Horizontal Seat tube Protrusion height - 80mm

Ergonomics

S M L XL XXL
Stem length 60 60 60 60 60
Angle stem 12° 12° 12° 12° 12°
Handlebar width 740 740 740 740 740
Crank length 165 175 175 175 175
Length seat post 361 361 425 425 425
Diameter seatpost 31.6 31.6 31.6 31.6 31.6
Max. insertion depth seat post 205 250 280 230 270
Stroke seatpost 100 100 130 130 130
Diameter tire maximum 722 760 760 760 760
Width tire maximum 66 66 66 66 66

All values are given in millimetres or degrees.

The Reaction Hybrid Pro 600 Allroad is the Swiss Army knife of Bosch-powered e-mtbs. The 600 Wh PowerTube battery and smooth power delivery of Bosch's CX drive are ideal for weekend exploring and weekday commuting alike. Shimano's 1x12 XT gears have a range that's wide enough to tackle any route, while powerful hydraulic disc brakes and grippy 2.6in Schwalbe tyres ensure you're always in full control. There's an easily adjustable air-sprung suspension fork to smooth the way ahead – 120mm of travel for all versions except the Easy Entry frame and smallest frame sizes. And, for weekday commuting, weekday errands or weekend tours, the carrier, mudguards, kickstand and integrated lights add real-world practicality.
