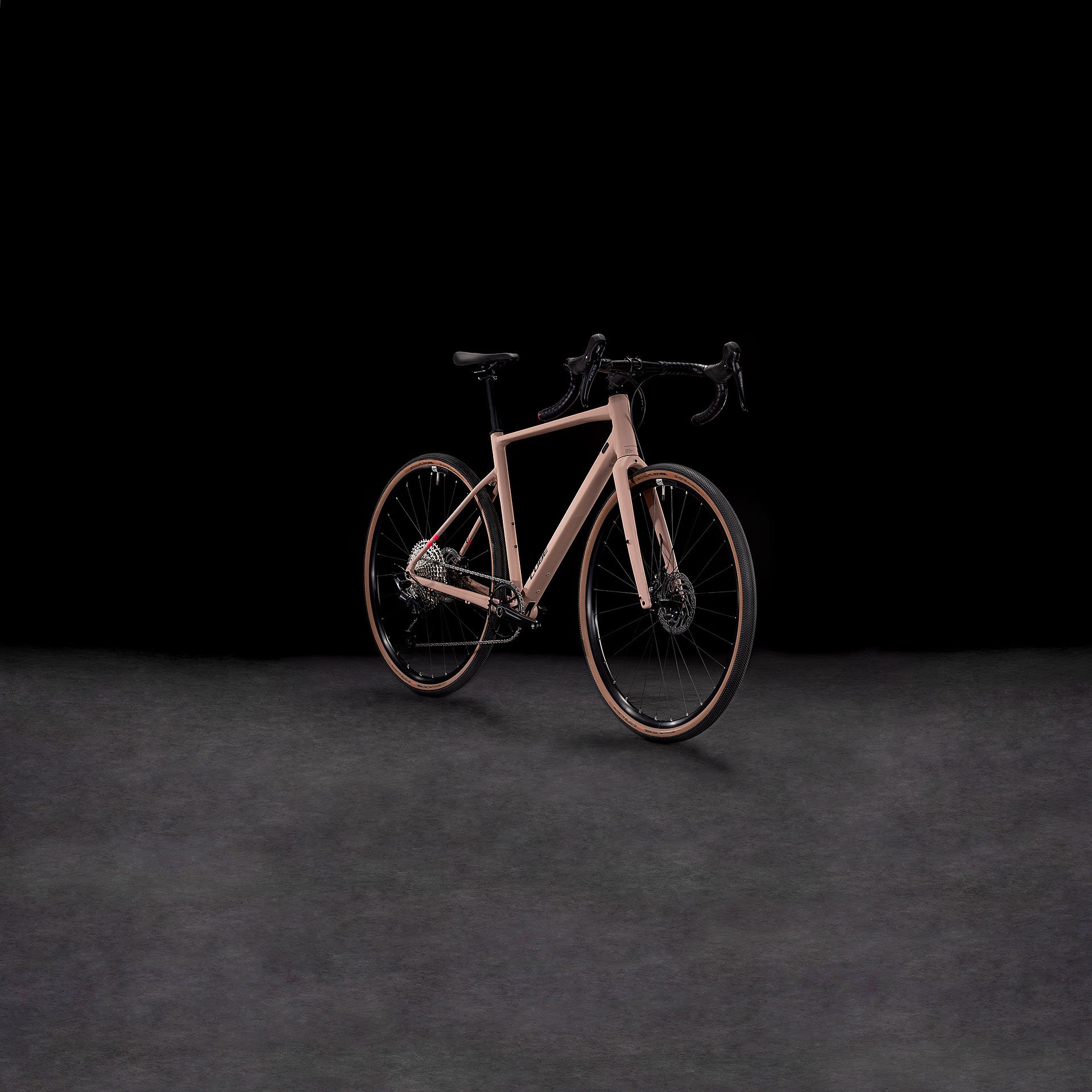

NUROAD
EX

SRP* 1699 EUR

ArtNo. 829410

blushrose´n´pink

Comparison

FAST,
FUN,
VERSATILE

To create the Nuroad we took inspiration from our race and cyclocross bikes, then threw a little mountain bike DNA into the mix. There's plenty of clearance for big, grippy and comfortable 45mm tyres – or 40mm if you run mudguards at the same time. There's an integrated seat clamp, exceptionally tidy rack, guard and kickstand mounts, and neat Internal Cable Routing to keep gear shifts grit- and mud-free for longer. Thru-axle wheels improve steering accuracy, even on the roughest roads. The full carbon fork isn't just lightweight – it also helps reduce vibration from the road and features lowrider rack mounts. And, with an extended size range running from XXS to XL, we're confident that pretty much any rider can find their perfect Nuroad.

Frame Material

Aluminium Superlite

Tire clearance

45 mm

The Nuroad EX is what happens when you take cyclocross handling, add a little road-race pedigree and then throw in some mountain bike DNA for good measure. Agile, tough and versatile, it's everything you need for commuting, touring, exploring off the beaten track and more.

NUROAD

Adventure sometimes demands different kit. That's where our low rider rack mounts come in. Designed to accept an optional fork rack, they're a great way to carry up to 10kg of additional weight for extended tours. Not only that but carrying some of your luggage over the front wheel helps improve weight distribution and handling. Win, win.

A gravel bike is a supremely versatile beast, which is why all our gravel models have a fender and rack option. With generous frame clearances to fit comfortable, safe and grippy tyres even with full length mudguards, we also neatly integrated the rear rack into the mudguard design – and included a rear light, too.

Combining everything we know about building great-riding off-road bikes, Gravel Comfort Geometry is the secret ingredient that makes our gravel series such a blast to ride. Nimble enough to mix it up in the rough, stable enough for reassuring descents and with comfort for the long haul, we've got it all covered.

CUBE's Aluminium Superlite starts with heat-treated 6061 aluminium, which has the qualities – high fatigue resistance, good stiffness, low weight and excellent strength – that are important for a bicycle frame. Then we make it into double butted tubes, to reduce weight without sacrificing any of its strength. The result? Exceptionally light, strong and tough frames.

Frame

frame

Aluminium 6061 T6 Superlite, Gravel Comfort Geometry, Flat Mount Disc, Fender & Rack Option, 12x142mm, AXH

size

Size Split: 27.5: XXS (46cm) // 28: XS (50cm), S (53cm), M (56cm), L (58cm), XL (61cm)

Rigid fork

CUBE Nuroad Flat Mount Disc, Full Carbon, 1 1/8" - 1 1/4" Tapered, Fender & Lowrider Mounts, 12x100mm

Drivetrain & brakes

shift/ brake levers

Shimano GRX ST-RX610

brake system

Shimano GRX BR-RX400, Hydr. Disc Brake, Flat Mount (160/160)

rear derailleur

Shimano GRX RD-RX822-SGS, 12-Speed

bottom bracket

Shimano BB-RS500PB, Pressfit

crankset

ACID Gravel Pro, 40T

cassette

Shimano Deore CS-M6100, 10-51T

chain

Shimano CN-M6100

Cockpit

headset

VP Z-t, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Integrated 1 1/4"

Stem

CUBE Performance Stem, 31.8mm

handlebar

CUBE Gravel Race Bar

handlebar tape

ACID Bartape CX

Wheels

wheelset

Newmen Performance X.R.25, 28/28 Spokes, 12x100mm/12x142mm, Tubeless Ready

tyres

Continental Terra Trail, Kevlar, 40-584 / 45-622

Finishing kit

saddle

Natural Fit Venec Lite

seat post

CUBE Performance Post, 27.2mm

Product information

colour

blushrose´n´pink

weight

10,1 kg

Art. No

829410

SRP*

1699 EUR

*Suggested retail price

Because of ongoing problems in the delivery chain, the bike can be delivered with modifications.

More Information

Bike category of use: 2

You can find more information about Bike Classification at the following link.

More Information

115
kg

Maximum system weight

The system weight describes the maximum permissible total mass. This must not be exceeded under any circumstances.

Please see the table for information on the distribution of weight across the system in conjunction with compatible accessories (luggage carriers, bike trailers, etc.).

System weight table

Geometry

	XXS	XS	S	M	L	XL
Seat tube	408	447	477	507	527	557
Top Tube Horizontal	500	518	537	560	575	592
Seat angle	75°	75.8°	74.7°	73.8°	73°	73°
Head tube angle	68°	69°	70°	71.4°	72°	72.5°
Chainstays	421	440	440	440	440	440
Head tube	100	113	135	165	185	208
Wheelbase	1007	1044	1045	1044	1046	1058
BB-Height to Hub	61	70	70	70	70	70
Protrusion height - 80mm	691	749	776	808	828	855
Reach	369	384	386	389	389	398
Stack	488	530	554	588	610	633

Ergonomics

	XXS	XS	S	M	L	XL
Stem length	60	80	80	90	100	100
Angle stem	6°	6°	6°	6°	6°	6°
Handlebar width	400	400	420	440	460	460
Crank length	170	170	170	172.5	172.5	175
Length seat post	350	350	350	350	350	350
Diameter seatpost	27.2	27.2	27.2	27.2	27.2	27.2
Diameter tire maximum	682	721	721	721	721	721
Width tire maximum	46	45	45	45	45	45

All values are given in millimetres or degrees.

Less can sometimes be more, which is why, for the Nuroad EX, we chose Shimano's gravel-specific GRX 1x12 gears – for a wide range of ratios with minimal fuss. A Newmen Performance 25 gravel wheelset shod with light, tough and grippy Continental Terra Trail 45mm tyres – and Shimano GRX hydraulic disc brakes – keep you in full control, all of the time. There's a vibration-filtering, full carbon fork for ride-all-day comfort. And a full complement of rack mounts – both front and rear – makes it easy to equip your Nuroad EX for anything from the daily commute to weekend adventures.
