BIKE
IN THE
CITY

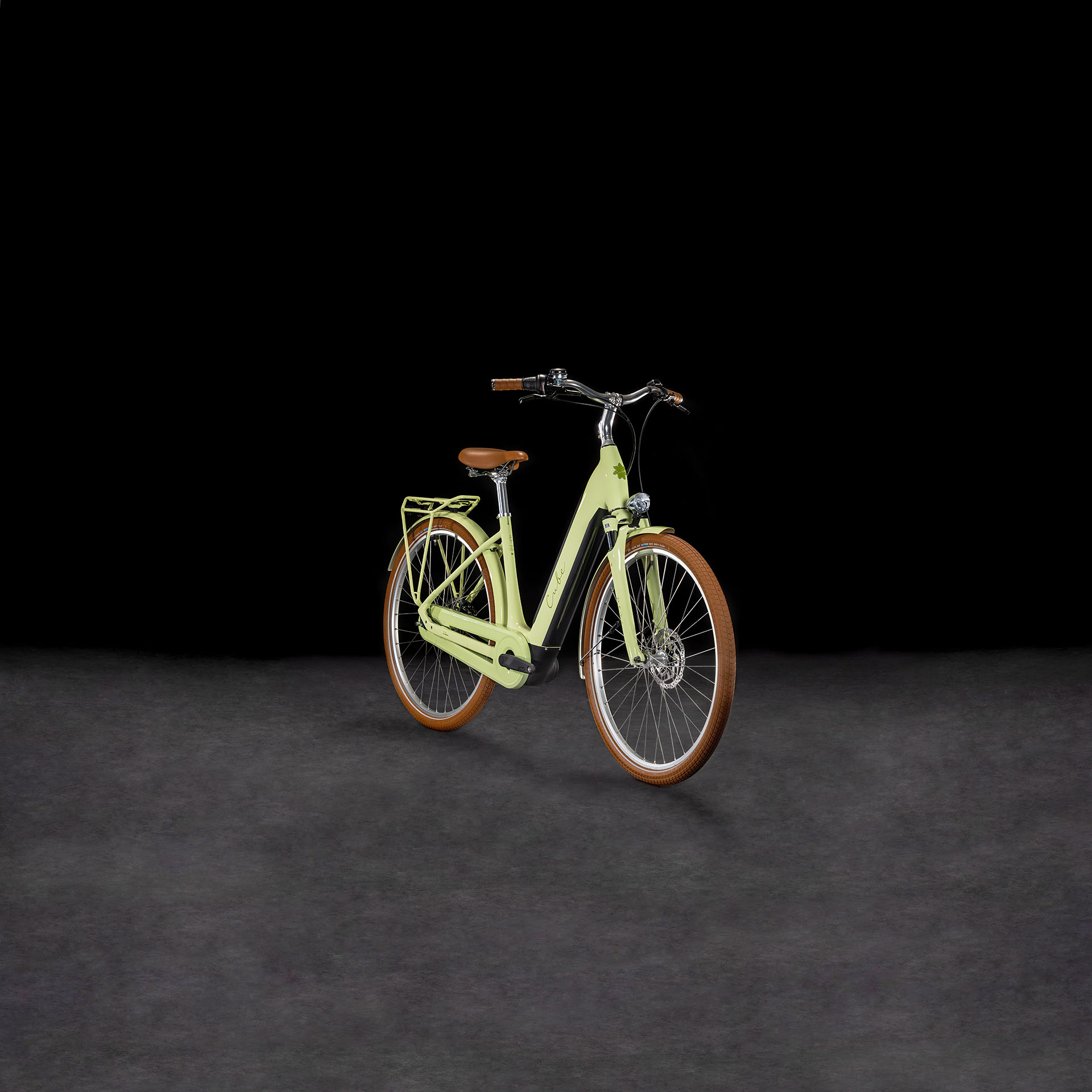

Effortlessly chic and good-looking it may be, but this understated beauty's engineering detail is every bit as cool. Our PowerTube design incorporates the Bosch battery inside the frame, and its head-turning elegance is finished with our Smooth Welding technique for an organic flow to the frame's lines. We fitted a tapered head tube because it's strong, safe and improves steering accuracy for easy, intuitive handling. There's a semi-integrated luggage carrier, and Easy Entry does exactly what it says, making access simple for any rider. It's a companion that won't let you down.
Frame Material
Battery
Sizes

Frame
frame
Aluminium Superlite, Comfort Ride Geometry, Tapered Headtube, Premium Comfort And Safety, Semi-Integrated Carrier, Fully Integrated Battery, Slider Dropout
size
Easy Entry: Size Split: 26: XXS / 42cm // 28: XS / 46cm, S / 50cm, M / 54cm, L / 58cm
Suspension
Suspension fork
SR Suntour NEX-E25, 50mm
E-bike system
Remote
Bosch Purion 200 w/ Integrated Display
battery
Bosch PowerTube 500
charger
Bosch 2A
drive unit
Bosch Drive Unit Active Line Plus Generation 3 (50Nm) Cruise (250Watt), Smart System
Drivetrain & brakes
brake system
Shimano BR-MT200, Hydr. Disc Brake (180/180)
shifters
Shimano Nexus SL-C6000-8, Revoshift
crankset
ACID Trekking Hybrid, 38T
chain
KMC Z610
sprocket
Shimano Nexus, 20T
Cockpit
headset
VP Integrated, Top 1 1/8", Bottom 1 1/2"
Stem
CUBE Comfort City Stem, 31.8mm
handlebar
CUBE Comfort Shape Bar
grips
CUBE Retro
Wheels
rims
CUBE SX24, Disc, 36H
front hub
Shimano HB-QC400, QR, Centerlock
rear hub
Shimano Nexus SG-C6001-8D, 8-Speed, Centerlock
tyres
Schwalbe Big Ben, Active, 50-622
Finishing kit
saddle
CUBE Retro
seat post
CUBE Performance Post, 30.9mm
pedals
ACID PP MTB
front light
Trelock Bike-i Retro Ebike, 12V, DC
rear light
CUBE Edge IC 2.0 Rear LED, 12V, DC
kickstand
ACID FM Pure Kickstand
bell
CUBE Classic
carrier
ACID Semi-Integrated Carrier, ACID RILink Adapter Compatible
Product information
colour
matchagreen´n´green
weight
27,4 kg
Art. No
815110
SRP*
2599 EUR
*Suggested retail price
Because of ongoing problems in the delivery chain, the bike can be delivered with modifications.
More Information
Bike category of use: 1
You can find more information about Bike Classification at the following link.
110
kg
Maximum rider weight
The rider weight refers to the weight of the rider including clothing and any equipment worn on the body.
Please see the table for information on the distribution of weight across the system in conjunction with compatible accessories (luggage carriers, bike trailers, etc.).
Geometry
42 cm | 46 cm | 50 cm | 54 cm | 58 cm | |
Seat tube | 420 | 440 | 480 | 520 | 560 |
Top Tube Horizontal | 605 | 605 | 605 | 617 | 629 |
Seat angle | 72° | 73.5° | 73.5° | 73.5° | 73.5° |
Head tube angle | 69° | 70° | 70° | 70° | 70° |
Chainstays | 465 | 499 | 499 | 499 | 499 |
Head tube | 210 | 195 | 195 | 210 | 230 |
Wheelbase | 1134 | 1143 | 1143 | 1156 | 1169 |
BB-Height to Hub | 44 | 70 | 70 | 70 | 70 |
Reach | 399 | 387 | 387 | 394 | 401 |
Stack | 628 | 669 | 669 | 684 | 702 |
Ergonomics
42 cm | 46 cm | 50 cm | 54 cm | 58 cm | |
Stem length | 65 | 65 | 90 | 90 | 90 |
Handlebar width | 660 | 660 | 660 | 660 | 660 |
Crank length | 160 | 165 | 165 | 165 | 165 |
Length seat post | 300 | 300 | 300 | 300 | 3000 |
Diameter seatpost | 30.9 | 30.9 | 30.9 | 30.9 | 30.9 |
Max. insertion depth seat post | 260 | 280 | 300 | 300 | 300 |
Diameter tire maximum | 674 | 736 | 736 | 736 | 736 |
Width tire maximum | 50 | 50 | 50 | 50 | 50 |
All values are given in millimetres or degrees.
