ALL-MOUNTAIN
PERFORMER

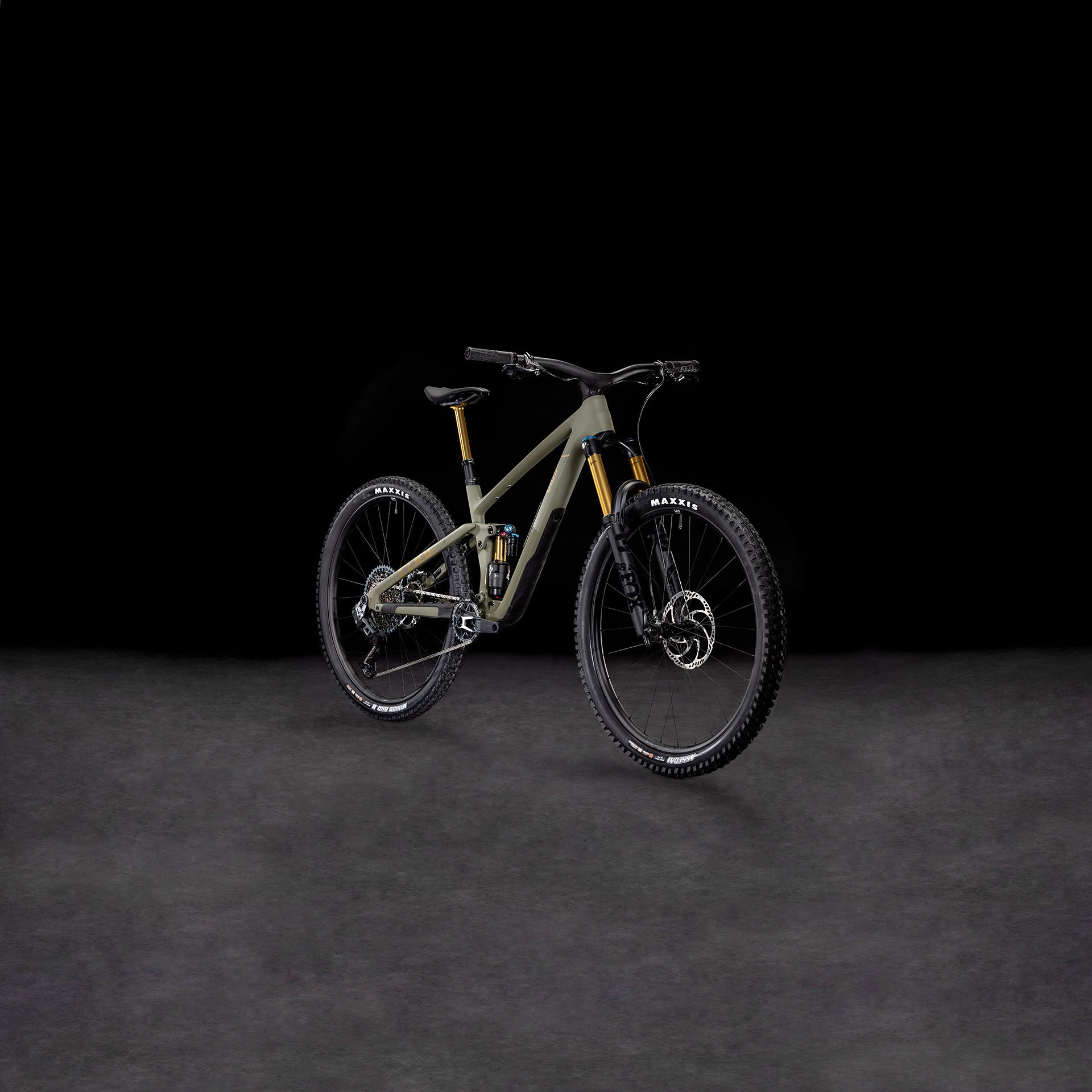

Elegant form or rugged function? With the Stereo ONE55 C:62 29 you don't have to choose. The clean lines of the Advanced Twin Mold C:62® frame are the first thing you'll notice, but as always the devil is in the detail. There's built-in down tube storage with an ACID frame bag and ACID multitool Husk 24 included. Built-in angle adjustment gives a choice of head tube angles, so you can tweak the performance to your liking. And the threaded bottom bracket shell is tough and practical, complete with ISCG 05 chain guide mount. With 155mm of travel at the rear and a 160mm fork up front, there's simply no better way to take on tough mountain trails and come out on top.
Frame Material
Angle Adjustment

Frame
frame
C:62® Monocoque Advanced Twin Mold Technology, ISCG05, Boost 148, UDH™, 155mm travel
size
29: S, M, L, XL
Suspension
Suspension fork
Fox 36 Float Factory GRIP X2, Tapered, 15x110mm, 160mm
shock
Fox Float X2 Factory, 205x60mm, HSC/LSC/HSR/LSR w/ 2-Pos. Lever
shock hardware
Top: 54mm Trunnion Mount, Bottom: 22.2x8mm
Drivetrain & brakes
brake system
Magura MT7, Hydr. Disc Brake (203/180)
rear derailleur
Sram GX Eagle AXS™ Transmission, 12-Speed, Electronic Shifting System
shifters
Sram AXS™ Pod Controller
bottom bracket
Sram DUB MTB Wide, 73mm BSA
crankset
Sram X0 Eagle™ Transmission DUB, 30T
cassette
Sram XS-1275, 10-52T
chain
Sram GX Eagle™ Transmission
chain guide
MRP 1X Chain Guide
Cockpit
headset
ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment
integrated bar/ stem
CUBE Stereo Carbon Cockpit System
grips
ACID Disrupt, Soft Compound
Wheels
wheelset
Newmen Beskar 30 light/base, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready
front tyre
Maxxis Assegai, MaxxTerra/EXO+, Tubeless Ready, 2.5 WT
rear tyre
Maxxis Minion DHR II, MaxxTerra/EXO+, Tubeless Ready, 2.4 WT
Finishing kit
saddle
ACID Nuance SLT X Carbon
seat post
Fox Transfer Factory 30.9mm, Kashima Coated
extras
Schwalbe Aerothan Inner Tubes, ACID Downtube Storage Bag & HUSK24 Multi Tool
Product information
colour
dustyolive´n´gold
weight
14,1 kg
Art. No
837300
SRP*
4899 EUR
*Suggested retail price
Because of ongoing problems in the delivery chain, the bike can be delivered with modifications.
More Information
Bike category of use: 4
You can find more information about Bike Classification at the following link.
115
kg
Maximum system weight
The system weight describes the maximum permissible total mass. This must not be exceeded under any circumstances.
Please see the table for information on the distribution of weight across the system in conjunction with compatible accessories (luggage carriers, bike trailers, etc.).
Geometry
Slack/Moderate | S | M | L | XL |
---|---|---|---|---|
Seat tube | 370 | 405 | 420 | 470 |
Top Tube Horizontal | 565 / 567 | 591 / 592 | 619 / 621 | 650 / 652 |
Seat angle | 76.7° / 76.5° | 76.5° | 76.7° / 76.5° | 76.7° / 76.5° |
Head tube angle | 64.2° / 64.8° | 64.2° / 64.8° | 64.2° / 64.8° | 64.2° / 64.8° |
Chainstays | 438 | 438 | 438 | 438 |
Head tube | 100 | 103 | 113 | 133 |
Wheelbase | 1196 / 1188 | 1222 / 1215 | 1252 / 1244 | 1285 / 1277 |
BB-Height to Hub | 36 / 34 | 36 / 34 | 36 / 34 | 36 / 34 |
Protrusion height - 80mm | 735 / 739 | 744 / 748 | 742 / 746 | 777 / 781 |
Reach | 427 / 425 | 452 / 450 | 477 / 475 | 502 / 500 |
Stack | 623 / 625 | 625 / 627 | 634 / 636 | 652 / 654 |
Ergonomics
S | M | L | XL | |
Stem length | 40 | 50 | 50 | 50 |
Handlebar width | 760 | 780 | 800 | 800 |
Crank length | 170 | 170 | 170 | 170 |
Length seat post | 346 | 411 | 476 | 476 |
Diameter seatpost | 30.9 | 30.9 | 30.9 | 30.9 |
Stroke seatpost | 120 | 150 | 180 | 180 |
Diameter tire maximum | 758 | 758 | 758 | 758 |
Width tire maximum | 64 | 64 | 64 | 64 |
Rear suspension travel | 155 | 155 | 155 | 155 |
All values are given in millimetres or degrees.
