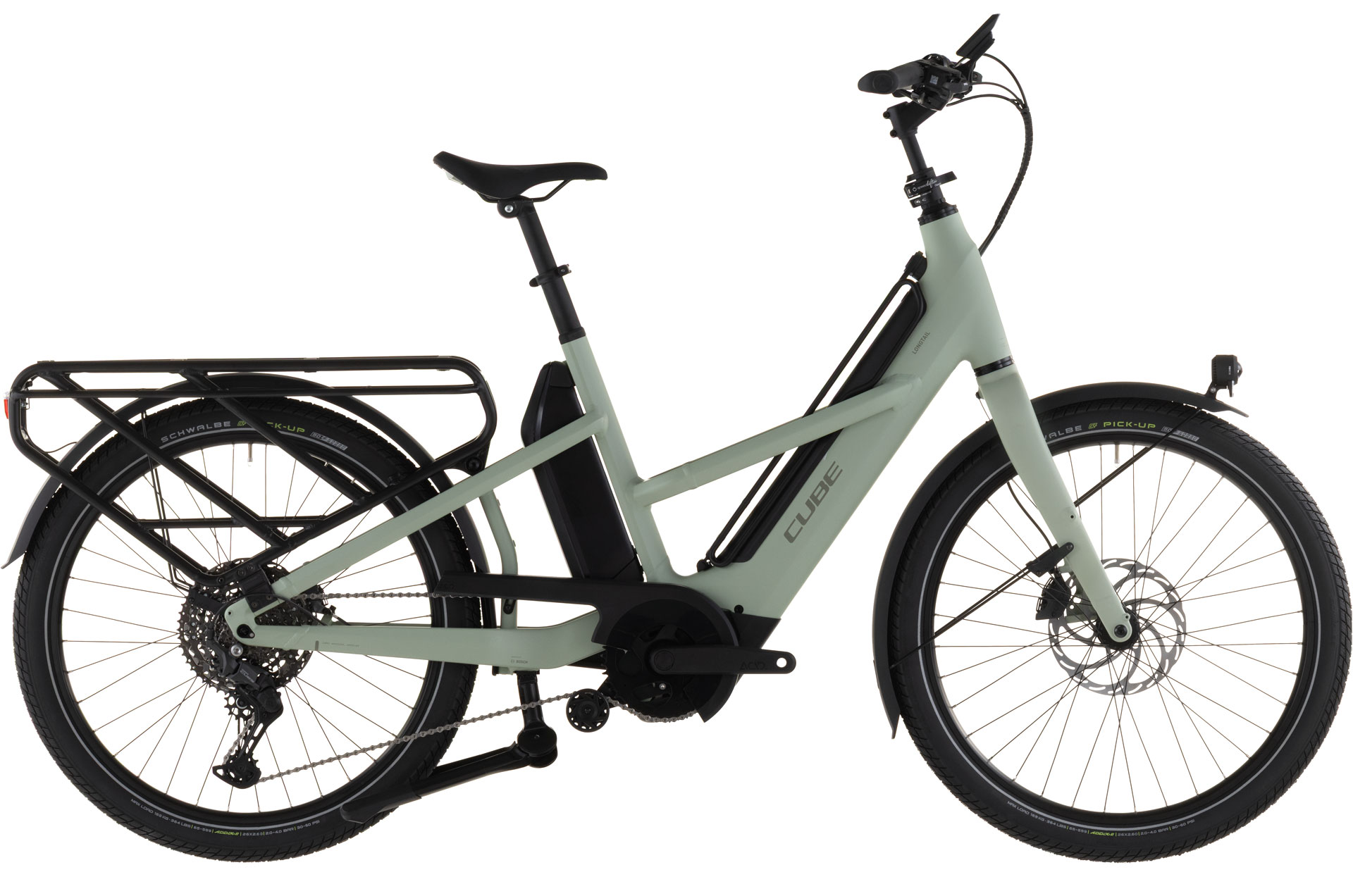

LONGTAIL HYBRID
800

ArtNo. 122210

pea´n´reflex

Comparison

VERSATILITY
FOR EVERY DAY

Our cargo-carrying Longtail Hybrid is built with practicality in mind. Powered by Bosch's capable and smooth Cargo Line motor and 800Wh battery, it's designed to handle a load of up to 200kg in total. A weight of 60kg can be carried on the sturdy, extended rear carrier, which can accept two standard pannier bags per side and features elastomer suspension. There's even a lockable storage compartment for smaller items in the down tube. Need more load-carrying versatility? No problem. Optional accessories include an extension to allow the fitting of a standard Eurobox, a headset-mounted front carrier and a down-tube carrier. Whatever you need to carry and wherever you need to carry it to, the Longtail Hybrid will help you get it there.

Frame Material

Aluminium Superlite

Battery

800Wh

Wheels

26"

Highlights

A liveable urban jungle is all about movement – of people, and things. The Longtail Hybrid makes that movement a whole lot easier. With Bosch Cargo Line power and a large, versatile and extremely sturdy rear carrier, it's a practical, comfortable and fun alternative to using four wheels in the city.

The Longtail Hybrid is a tough, versatile urban load-lugger. The 800Wh battery and powerful Bosch Cargo Line motor working in conjunction with Shimano Cues 11-speed gears mean it's got the grunt you need to get a total load of up to 200kg across town – and beyond – with ease and in complete comfort. We designed it to fit most riders quickly and easily, with a telescopic seatpost and Speedlifter stem. There's a sturdy twin-leg kickstand, for easy parking. Front and rear lights so you can see and be seen, 24/7. Magura Gustav Pro hydraulic disc brakes for safe stopping, rain or shine. And optional accessories include a rear rack extender, child seat with foot rests and safety guard, and a front carrier that will accept a matching bag or basket, both with HIC, so you can tailor your Longtail to suit your needs exactly.

Frame

frame

Aluminium Casting, Comfort Ride Geometry, Oversized Headtube, Premium Durability And Safety, Suspended Carrier, Downtube Carrier

Carrying your belongings, shopping or work bag just got a little easier. Our new HIC (Headset Integrated Carrier) fits simply, neatly and very securely on the front of your CUBE bike to add accessible, stable and versatile load-carrying capacity. With the ability to safely accommodate a Eurobox of 300mm x 400mm, up to 20kg in weight and RILink accessories, you'll wonder how you managed without.

High performance aluminium is all about extracting the best possible performance from this strong, durable material. We select precisely the right grade of alloy for our needs, carefully tweak tube profiles to suit each application, and then meticulously weld each frame. It's your guarantee of a light, strong, durable and safe bike.

As you might expect, our Comfort Ride Geometry delivers maximum comfort on two wheels. Because after all, who doesn't want a comfortable ride? We sweated the details of frame angles and dimensions to create a natural-feeling ride position and the ideal combination of stability and agility, so you not only feel comfortable but safe, too.

The flexible One Size Concept makes a bike so versatile it can be used by anyone, of any height. The saddle and stem easily adjust up or down to suit any rider from around 5ft 2in to 6ft 2in (1.60m to 1.90m), so everyone can have a comfortable, relaxing ride. It's the ideal bike to share: for the whole family, partners, friends, neighbours or colleagues. Or keep it for yourself as the perfect companion for wherever life takes you.

Our Downtube Storage provides an ingenious way of carrying your posessions in a lockable, integrated and secure compartment. With removable dividers, a rain-proof cover and easy access, it's the ideal way to carry anything from a waterproof jacket to some snacks, a pair of gloves... whatever you need.

size

One Size

Rigid fork

Aluminium Rigid Fork, 26"

E-bike system

drive unit

Bosch Drive Unit Cargo Line 85Nm (BDU37)

Remote

Bosch LED Remote

battery

Bosch PowerPack 800

display

Bosch Kiox 500

charger

Bosch 4A

Drivetrain & brakes

brake system

Magura Gustav PRO, Front 4-Piston/Rear 4-Piston, Hydr. Disc Brake (203/203)

rear derailleur

Shimano Cues RD-U6000-GS, 11-Speed

shifters

Shimano Cues SL-U6000, Rapidfire-Plus

crankset

ACID Trekking Hybrid, 44T

cassette

Shimano Cues CS-LG400, 11-50T

chain

KMC eGlide

Cockpit

headset

ACROS Carrier Mount Headset

Stem

BySchulz Speedlifter Classic

handlebar

CUBE Comfort Trail Bar, 700mm

grips

ACID Travel Comfort

Wheels

wheelset

ACID SLX 35, 36/36 Spokes, 15x110mm/12x148mm, Disc, Tubeless Ready

tyres

Schwalbe Pick-Up, Performance, Super Defense, 65-559

Finishing kit

saddle

ACID Sequence Pro Plus

seat post

Satori Sorata 34,9mm, 280mm -440mm telescoping seatpost

pedals

ACID PP Trekking

front light

ACID Front Light PRO-E 150, 12V, DC

rear light

Herrmans H-Trace, 6-12V, DC

kickstand

Ursus Jumbo Evo

mudguards

ACID 75, BB-Mount

bell

Knog Oi

Product information

colour

pea´n´reflex

weight

34,3 kg

Art. No

122210

Due to unforeseeable supply chain issues, the bike may be delivered with modifications.

More Information

Bike category of use: 1T

You can find more information about Bike Classification at the following link.

More Information

100
kg

Maximum rider weight

The rider weight refers to the weight of the rider including clothing and any equipment worn on the body.

Please see the table for information on the distribution of weight across the system in conjunction with compatible accessories (luggage carriers, bike trailers, etc.).

System weight table

The flexible ONE SIZE CONCEPT makes one bike so versatile that it can be used by any number of people – irrespective of their height. Everyone can enjoy a comfortable ride courtesy of the upright riding position and step-through frame. The saddle and stem easily adjust up or down to suit any rider from around 5ft 2in to 6ft 2in (1.60m to 1.90m). The ONE SIZE CONCEPT is a universal platform that's ideal to share between the whole family, partners, friends, neighbours and colleagues alike. Or keep it for yourself as the perfect companion for wherever life takes you. One bike, flexible for all!

Geometry

	26": ONE SIZE
Seat tube	480
Top Tube Horizontal	595
Seat angle	73°
Head tube angle	70°
Chainstays	610
Head tube	222
Wheelbase	1268
BB-Height to Hub	50
Protrusion height - 80mm	549
Reach	404
Stack	638

Ergonomics

	26": ONE SIZE
Stem length	90
Angle stem	17°
Handlebar width	700
Crank length	170
Length seat post	440
Diameter seatpost	34.9
Stroke seatpost	150
Diameter tire maximum	692
Width tire maximum	67
Step-through width	300
