CREATING
MEMORIES

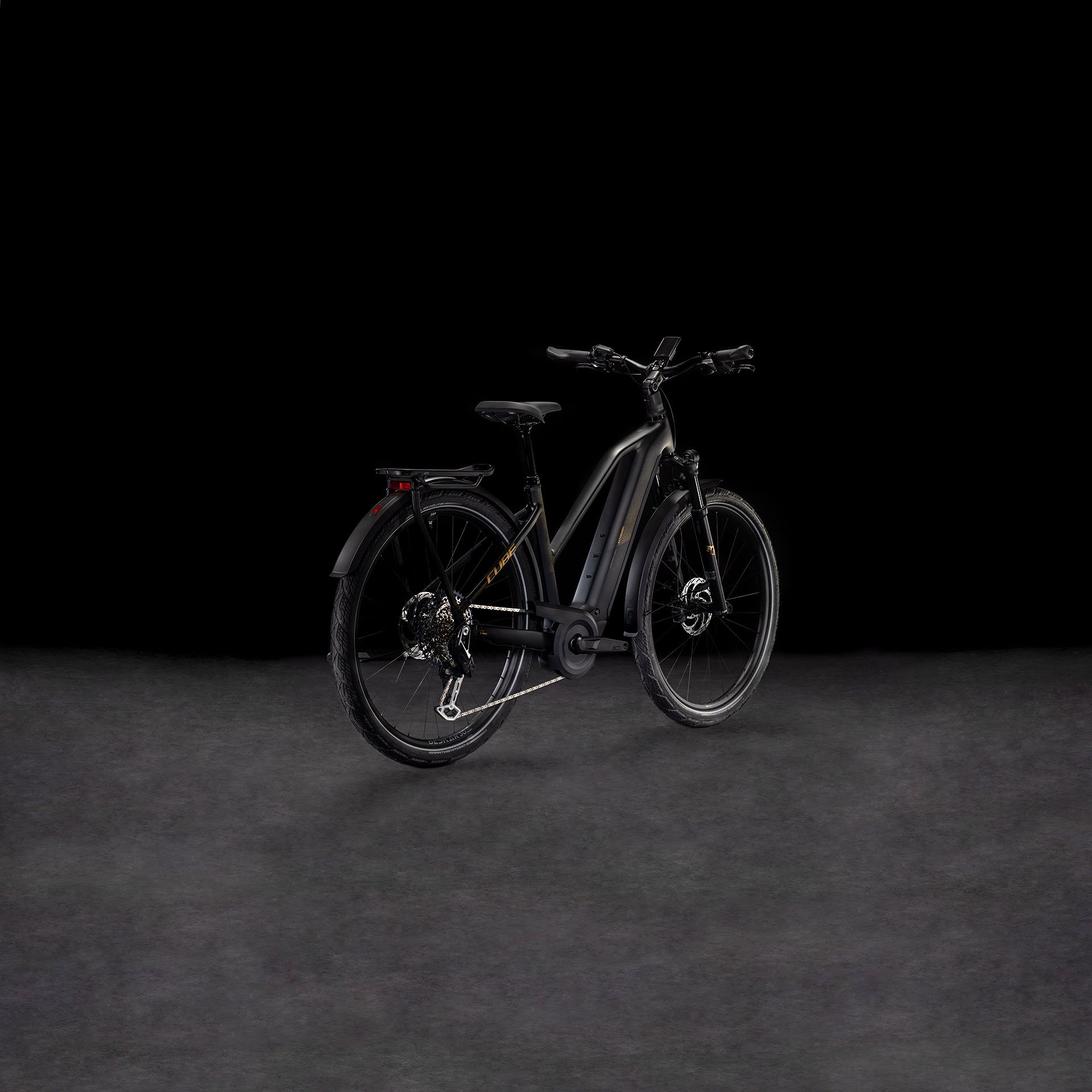

Okamžitě poznáte CUBE Kathmandu Hybrid jako kus nadčasově elegantního designu jízdního kola, který je však plný inovací a chytrých prvků. Úhledně umístěný pohon Bosch CX a 800 Wh baterie PowerTube jsou jen začátek. Efficient Comfort Geometry je navržena s odpruženou vidlicí se zdvihem 100 mm pro lepší kontrolu, i když je jízda drsná. Integrované kabely doplňují čisté linie rámu a pomáhají snižovat potřebu údržby, zatímco patka UDH je odolná, všestranná a odolná do budoucna. A samozřejmě je tu integrovaný držák na chránič řetězu a náš odolný, robustní a výjimečně elegantní Integrated Carrier 3.0, takže můžete nosit vše, co potřebujete pro svá dobrodružství.
Frame Material
Battery

Rám
rám
Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Boost148, Fully Integrated Battery, Integrated Carrier 3.0, Advanced Internal Cable Routing, 1.5 Headtube
velikosti
Trapeze: XS / 46cm, S / 50cm, M / 54cm, L / 58cm
Suspension
Odpružená vidlice
Fox 34 Float AWL, 2-Position Sweep-Adjust RAIL Damper, Tapered, 15x110mm, E-Bike Optimized, 100mm
E-bike system
motor
Bosch Performance Line CX 85Nm (BDU38) ab Juli 2025 bis zu 100 Nm/ from July 2025 up to 100Nm
Remote
Bosch LED Remote
baterie
Bosch PowerTube 800
displej
Bosch Kiox 500
nabíječka
Bosch 4A
Systém GPS
Bosch ConnectModule
Drivetrain & brakes
brzdy
Magura Gustav PRO, Front 4-Piston/Rear 4-Piston, Hydr. Disc Brake (203/203)
přehazovačka
Sram XX Eagle AXS™ Transmission, 12-Speed, Electronic Shifting System
řazení
Sram AXS™ Pod Controller
kliky
ACID MTB Hybrid Pro
kazeta
Sram XS-1275, 10-52T
řetěz
Sram GX Eagle™ Transmission
Cockpit
hlavové složení
ACROS AZF-1035, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), HIC
Představec
CUBE Comfort Stem Pro, 31.8mm, Adjustable
řídítka
CUBE Comfort Trail Bar, 700mm
gripy
ACID Travel Comfort
Wheels
ráfky
Newmen Beskar 30, 28/32 Spokes (Base/Strong), 15x110mm / 12x148mm, Tubeless Ready
pláště
Schwalbe Marathon Efficiency, Super Race, V-Guard, 55-622
Finishing kit
sedlo
ACID Shen Pro
sedlovka
CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
pedály
ACID PP MTB
přední světlo
ACID Front Light PRO-E 150 X-Connect, 12V, DC
zadní světlo
ACID Mudguard Rear Light PRO-E, 12V, DC
stojánek
ACID FM Pure Kickstand
blatníky
ACID 65 Integrated Carrier 3.0
zvonek
Knog Oi
nosič
ACID Integrated Carrier 3.0, CUBE Adapter Compatible
Product information
barva
golddust´n´black
hmotnost
26,3 kg
Art. No
812801
SRP*
5639 EUR
*Suggested retail price
Because of ongoing problems in the delivery chain, the bike can be delivered with modifications.
More Information
Bike category of use: 2
You can find more information about Bike Classification at the following link.
110
kg
Maximum rider weight
The rider weight refers to the weight of the rider including clothing and any equipment worn on the body.
Please see the table for information on the distribution of weight across the system in conjunction with compatible accessories (luggage carriers, bike trailers, etc.).
Geometry
46 cm | 50 cm | 54 cm | 58 cm | |
Seat tube | 420 | 460 | 510 | 560 |
Top Tube Horizontal | 590 | 590 | 610 | 630 |
Seat angle | 73.5° | 73.5° | 73° | 73° |
Head tube angle | 68° | 68° | 68.5° | 68.5° |
Chainstays | 499 | 499 | 499 | 499 |
Head tube | 110 | 110 | 125 | 140 |
Wheelbase | 1173 | 1173 | 1182 | 1204 |
BB-Height to Hub | -68 | -68 | -68 | -68 |
Protrusion height - 80mm | 769 | 777 | 817 | 850 |
Reach | 401 | 401 | 410 | 426 |
Stack | 638 | 638 | 654 | 668 |
Ergonomics
46 cm | 50 cm | 54 cm | 58 cm | |
Stem length | 65 | 65 | 65 | 80 |
Handlebar width | 700 | 700 | 700 | 700 |
Crank length | 175 | 175 | 175 | 175 |
Length seat post | 361 | 361 | 361 | 361 |
Diameter seatpost | 31.6 | 31.6 | 31.6 | 31.6 |
max. zasunutí sedlovky | 270 | 280 | 280 | 280 |
Stroke seatpost | 100 | 100 | 100 | 120 |
Diameter tire maximum | 750 | 750 | 750 | 750 |
Width tire maximum | 56 | 56 | 56 | 56 |
All values are given in millimetres or degrees.
