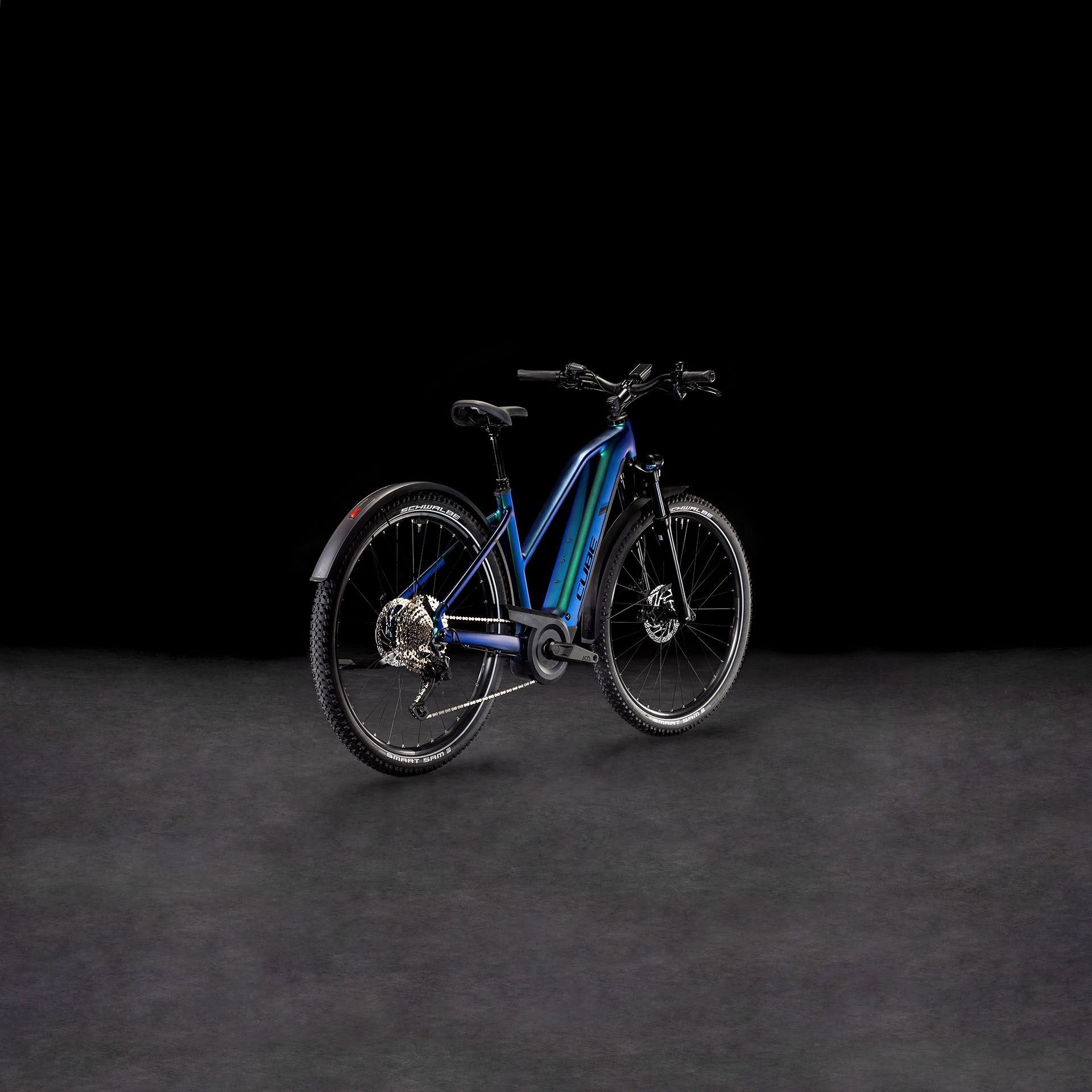

NURIDE HYBRID
EXC 800 ALLROAD

SRP* 3599 EUR

ArtNo. 810311

goblin´n´black

Comparison

JUST
RIDE

The Nuride Hybrid's Trapeze frame's traditional looks are familiar, but it's hiding a wealth of innovation under its elegant exterior. Designed to accommodate a 100mm suspension fork for extra comfort and control, it also features generous tyre clearances – even with the supplied mudguards. Integrated cables complement the frame's clean looks and reduce the need for maintenance, and the 800 Wh PowerTube battery and Bosch CX drive are neatly incorporated into the frame structure. There's an integrated chainguard and UDH gear hanger too, so it's as future-proof as we can make it. And, with the included mudguards, lights and kickstand, you've everything you need for two-wheeled adventures.

Frame Material

Aluminium Superlite

Battery

800 Wh

Configuration

Allroad

Keep your options open with the Nuride Hybrid EXC 800 Allroad. On-road or off, there's a frame design for every rider and lifestyle. And, with smooth and quiet Bosch pedal assistance, an 800 Wh battery and practical accessories included, your next adventure is yours to choose.

More Information

Bike category of use: 2

You can find more information about Bike Classification at the following link.

More Information

110
kg

Maximum rider weight

The rider weight refers to the weight of the rider including clothing and any equipment worn on the body.

Please see the table for information on the distribution of weight across the system in conjunction with compatible accessories (luggage carriers, bike trailers, etc.).

System weight table

Geometry

	46 cm	50 cm	54 cm	58 cm
Seat tube	420	460	510	560
Top Tube Horizontal	590	590	610	630
Seat angle	73.5°	73.5°	73°	73°
Head tube angle	68°	68°	68.5°	68.5°
Chainstays	499	499	499	499
Head tube	110	110	125	140
Wheelbase	1173	1173	1182	1204
BB-Height to Hub	68	68	68	68
Protrusion height - 80mm	769	777	817	850
Reach	401	401	410	426
Stack	638	638	654	668

Ergonomics

	46 cm	50 cm	54 cm	58 cm
Stem length	75	75	75	75
Angle stem	17°	17°	17°	17°
Handlebar width	720	720	720	720
Crank length	175	175	175	175
Length seat post	361	361	361	403
Diameter seatpost	31.6	31.6	31.6	31.6
max. zasunutí sedlovky	270	300	300	300
Stroke seatpost	100	100	100	120
Diameter tire maximum	750	750	750	750
Width tire maximum	57	57	57	57

All values are given in millimetres or degrees.

Don't compromise on your riding plans, or your bike. With its legendarily reliable Shimano XT 1x12 gears, Bosch CX drive and 800 Wh battery, the Nuride Hybrid EXC 800 Allroad is off to a great start. Wide, grippy Schwalbe tyres with a 100mm Suntour air suspension fork keep things smooth and comfortable, and powerful Shimano 4-piston hydraulic disc brakes ensure you can slow and stop safely, whatever the weather. And the icing on the cake, of course, is the included Allroad accessory package. With mudguards, lighting set and a sturdy kickstand, you've everything you need for your two-wheeled adventures.
