STEREO HYBRID ONE22
PRO 600

SRP* 3499 CHF

ArtNo. 801120

desertstone´n´black

Comparison

800Wh

THE
ALL-ROUNDER

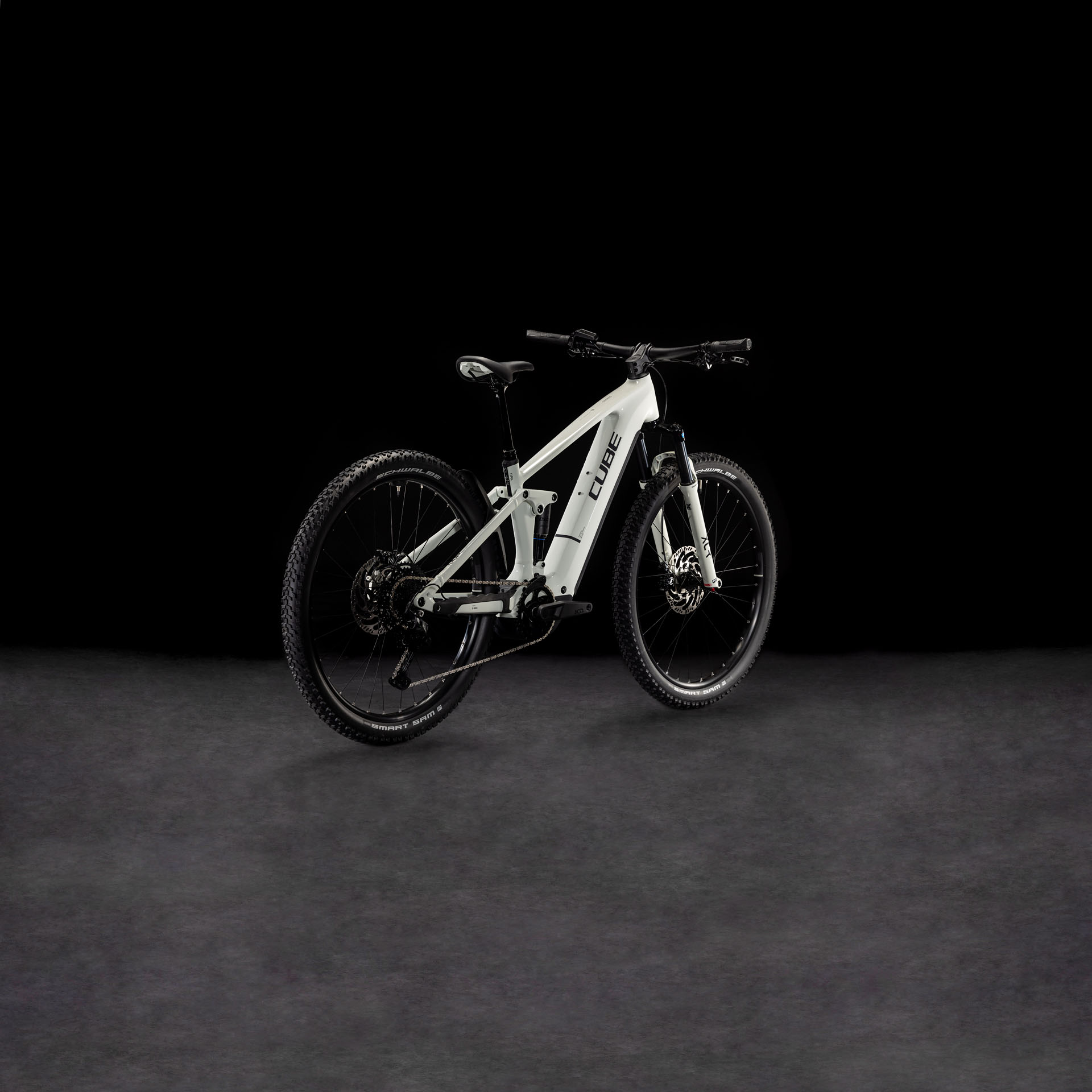

Our Bosch-powered trail explorer is full of neat touches. With its refined four-bar suspension system, 120mm suspension fork – with mudguard mount – and Comfort Geometry, it's set up for long days out on varied surfaces. With a 600Wh battery and Bosch CX drive, that means practically anywhere you please. Integrated cable routing flatters the frame's almost organic looks and reduces maintenance. A new seatpost clamp, direct mount chainguard and UDH dropout may not sound exciting, but they're the little details that help make the difference. And, with Size Split, there's a perfectly proportioned option for pretty much every rider.

Frame Material

Aluminium Superlite

Battery

600 Wh

Sizes

Size Split

It's fun to get off the beaten track, and the Stereo Hybrid ONE22 Pro 600 is the ideal way to get you there – and back. With CUBE's proven suspension kinematics, elegant frame design and the power of Bosch's revised CX drive system with 600Wh battery, it's got weekend adventure written all over it.

STEREO HYBRID ONE22

The Fully Integrated Battery system tucks the power of Bosch's battery out of sight, safely inside the confines of your bike's downtube. Hidden beneath a splash and dust-proof cover and secured with a lock to prevent theft, it allows us to design beautiful e-bike frames that are as brilliantly functional as they are good to look at.

Accessories like a kickstand, fenders and luggage carrier can really extend the versatility of your CUBE bike. We designed mounting points that integrate so neatly with each frame, you'll barely notice they're there – but they also provide a simple, strong and secure attachment for any future upgrades.

Gear and brake cables need a way to get from handlebar controls to frame – but what if there was no need for holes near the head tube? We came up with a design that takes cables into the frame via the headset, maintaining full internal cable routing but making it even neater and less obtrusive.

Our Integrated Seatpost Clamp is all part of our quest to sweat the details, so that you can reap the rewards. Its minimalist design suits the frame's pared-back aesthetic. And, of course, that's important – because why wouldn't you want your bike to look great? But it also saves a few grammes too. And that matters just as much...

In many ways the battery is the heart of an e-bike. That's why, with our Modular Battery System, we've made a setup that's easy to use. You can charge the battery on or off the bike, and we've made room for even high capacity batteries. You'll wonder how you ever managed without it.

The right bike should fit you perfectly. That's why we created SizeSplit. For shorter riders, the smaller 27.5in wheel standard allows us to build frames that fit well while remaining agile and sure-footed. And, for taller riders, we built a range of sizes around the fast-rolling 29er wheel standard. Whichever one you choose, you can be sure of a fit that makes your bike feel as though it was built just for you.

A wider hub makes a stiffer wheel, and a stiffer wheel means better handling. That's the thinking behind the Boost 148 rear hub standard, which allows wider flange spacing for better wheel performance without impacting on shifting accuracy or drivetrain efficiency. Simply put, you can go faster and harder with better handling and stronger wheels.

Your bike should be a pleasure to ride wherever your curiosity leads you, which is why we created Agile Comfort Geometry. With a careful blend of reassuring handling, ride-all-day comfort and an on-the-bike position that feels natural and welcoming, you'll look forward to every ride.

There are times when it's really useful to have a lock or a multi-tool with you, but what if you don't have a suitable bag? The Reaction Hybrid Performance frame has you covered, with dedicated mounting points below the top tube specifically designed to accommodate a compatible lock or tool. Convenient, rattle-free and always to hand...

One standard for all: gear hanger replacement made easy thanks to the innovative Universal Derailleur Hanger. With a design that includes some room for pivoting to help prevent chain jams, it improves shifting performance and works with all drivetrains. Best of all, it's a standard part that is available anywhere.

Gravity Casting moulds liquid aluminium into highly complex frame sections, resulting in extremely strong structures that can better withstand stress. For example, with our Hybrid models we're able to produce a motor mount that's optimised to cope with the loads placed on it in this specialised application, without adding unnecessary weight or sacrificing strength.

CUBE's Aluminium Superlite starts with heat-treated 6061 aluminium, which has the qualities – high fatigue resistance, good stiffness, low weight and excellent strength – that are important for a bicycle frame. Then we make it into double butted tubes, to reduce weight without sacrificing any of its strength. The result? Exceptionally light, strong and tough frames.

A bicycle frame is an amazing piece of engineering. And now, with our Smooth Welding technology, we're able to give it the elegant appearance it thoroughly deserves. With no visible weld beads, one tube appears to flow seamlessly into the next.

No-one wants an oily or dirty chain anywhere near their clothes. So, since chains can get oily and dirty over time, we developed the Direct Mount chainguard. It's neat, unobtrusive and helps keep your clothes away from moving parts so that you arrive at your destination clean and fresh.

Easy to fit and even easier to live with, the optional Semi-Integrated Carrier 2.0 is the perfect way to extend the versatility of your CUBE bike. Strong and versatile, it's the ideal way to convert your bike to a tourer, take on the daily commute, or even go shopping with your bike. Have it your way.

Frame

frame

Aluminum Superlite, Gravity Casting Technology, Efficient Comfort Control, FSP 4-Link, Agile Comfort Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing, Kickstand/Fender/Carrier Mounting Points, Integrated Seatclamp

size

Size Split: 27.5: S // 29: M L XL

Suspension

Suspension fork

SR Suntour XCR34X 2CR Air, Tapered, 15x110mm, 120mm

shock

SR Suntour EdgeX R 185x52,5mm, Rebound Adjust, Trunnion Mount

shock hardware

Top: 54mm Trunnion Mount, Bottom: 22.2x8mm

E-bike system

drive unit

Bosch Performance Line CX 85Nm (BDU38) ab Juli 2025 bis zu 100 Nm/ from July 2025 up to 100Nm

Remote

Bosch Purion 200 w/ Integrated Display

battery

Bosch PowerTube 600

charger

Bosch 2A

Drivetrain & brakes

brake system

Magura MT Thirty, Front 4-Piston/Rear 4-Piston, Hydr. Disc Brake (203/203)

rear derailleur

Shimano Cues RD-U6000-GS, 10-Speed

shifters

Shimano Cues SL-U6000, Rapidfire-Plus

crankset

ACID MTB Hybrid Pro, 38T

cassette

Shimano Cues CS-LG300, 11-48T

chain

KMC eGlide

chain guide

Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate

Cockpit

headset

ACROS AZF-1034, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)

Stem

CUBE Performance Stem E-MTB 35, FPI-Link

handlebar

CUBE Rise Trail Bar 35

grips

ACID Hybrid Perform

Wheels

rims

CUBE EX30, 32H, Disc, Tubeless Ready

front hub

CUBE Engineered By Newmen, 15mm, Boost, 6-Bolt

rear hub

CUBE Engineered By Newmen, 12mm, Boost, 6-Bolt

tyres

Schwalbe Smart Sam, Active, 2.6

Finishing kit

saddle

ACID Sequence Pro 160

seat post

CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm

pedals

ACID PP MTB

Product information

colour

desertstone´n´black

weight

25,6 kg

Art. No

801120

SRP*

3499 CHF

*Suggested retail price

Because of ongoing problems in the delivery chain, the bike can be delivered with modifications.

More Information

Bike category of use: 3

You can find more information about Bike Classification at the following link.

More Information

120
kg

Maximum rider weight

The rider weight refers to the weight of the rider including clothing and any equipment worn on the body.

Please see the table for information on the distribution of weight across the system in conjunction with compatible accessories (luggage carriers, bike trailers, etc.).

System weight table

Geometry

	S	M	L	XL
Seat tube	370	405	420	480
Top Tube Horizontal	570	600	630	660
Seat angle	76°	76°	76°	76°
Head tube angle	66.5°	66.5°	66.5°	66.5°
Chainstays	455	488	488	488
Head tube	163	132	142	157
Wheelbase	1186	1240	1271	1303
BB-Height to Hub	-23	-43	-43	-43
Protrusion height - 80mm	764	786	784	794
Reach	417	444	471	496
Stack	638	647	656	670

Ergonomics

	S	M	L	XL
Stem length	50	50	50	50
Angle stem	12°	12°	12°	12°
Handlebar width	760	760	760	760
Crank length	170	170	170	170
Length seat post	371	429	472	472
Diameter seatpost	31.6	31.6	31.6	31.6
Max. insertion depth seat post	190	205	210	280
Stroke seatpost	120	150	170	170
Diameter tire maximum	722	760	760	760
Width tire maximum	67	67	67	67
Rear suspension travel	120	120	120	120

All values are given in millimetres or degrees.

A great suspension bike does two things: it gives you more control, and it keeps you more comfortable even on rough trails. The Stereo Hybrid ONE22 Pro 600's proven kinematics – with Suntour air suspension fork and rear shock – are the key to keeping you rolling, rubber side down. Shimano Cues 1x10 gears work with the Bosch CX drive system, 600Wh battery and Purion 200 controller to propel you forwards. Meanwhile powerful Magura MT Thirty hydraulic disc brakes and wide, grippy Schwalbe Smart Sam tyres ensure you're always on top of things. Go. Explore.
